Valve Clearance Adjustment - HERO SPLENDOR iSMART PROGRAMMED FI Manual

1
(1) Drain tube

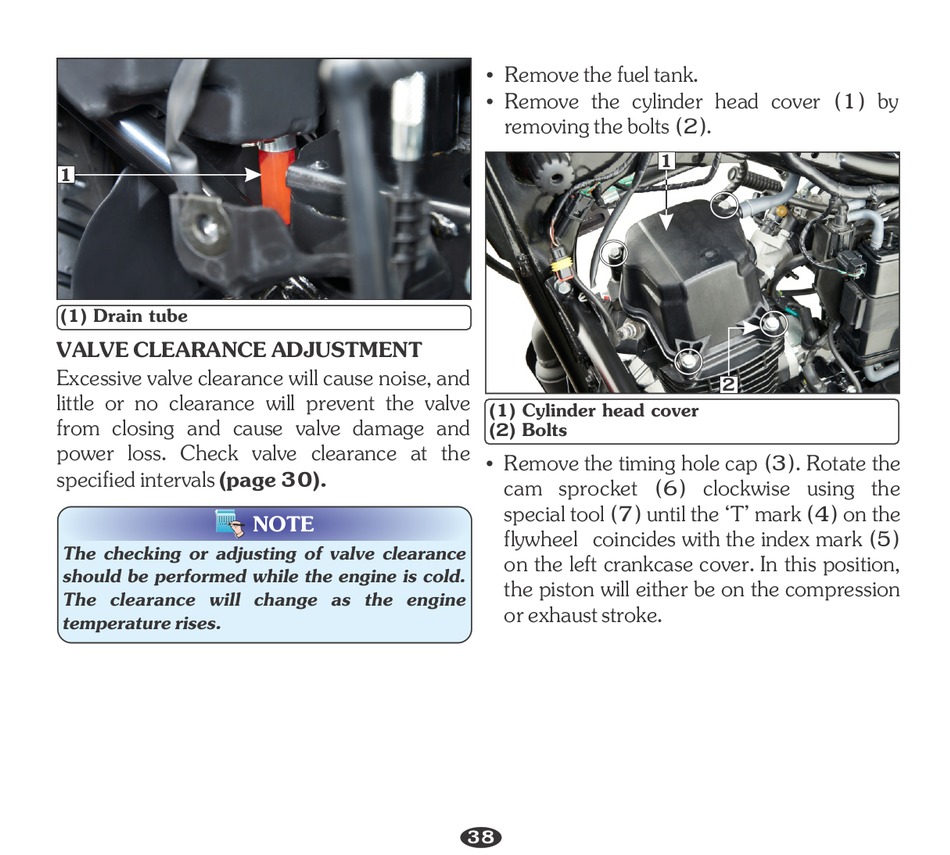

VALVE CLEARANCE ADJUSTMENT

Excessive valve clearance will cause noise, and
little or no clearance will prevent the valve
from closing and cause valve damage and
power loss. Check valve clearance at the
specified intervals (page 30).
The checking or adjusting of valve clearance
should be performed while the engine is cold.
The clearance will change as the engine
temperature rises.
NOTE
Remove the fuel tank.
Ÿ
Remove the cylinder head cover (1) by
Ÿ
removing the bolts (2).
(1) Cylinder head cover
(2) Bolts
Remove the timing hole cap (3). Rotate the
Ÿ
cam sprocket (6) clockwise using the
special tool (7) until the 'T' mark (4) on the
flywheel coincides with the index mark (5)
on the left crankcase cover. In this position,
the piston will either be on the compression
or exhaust stroke.
38
1
2
