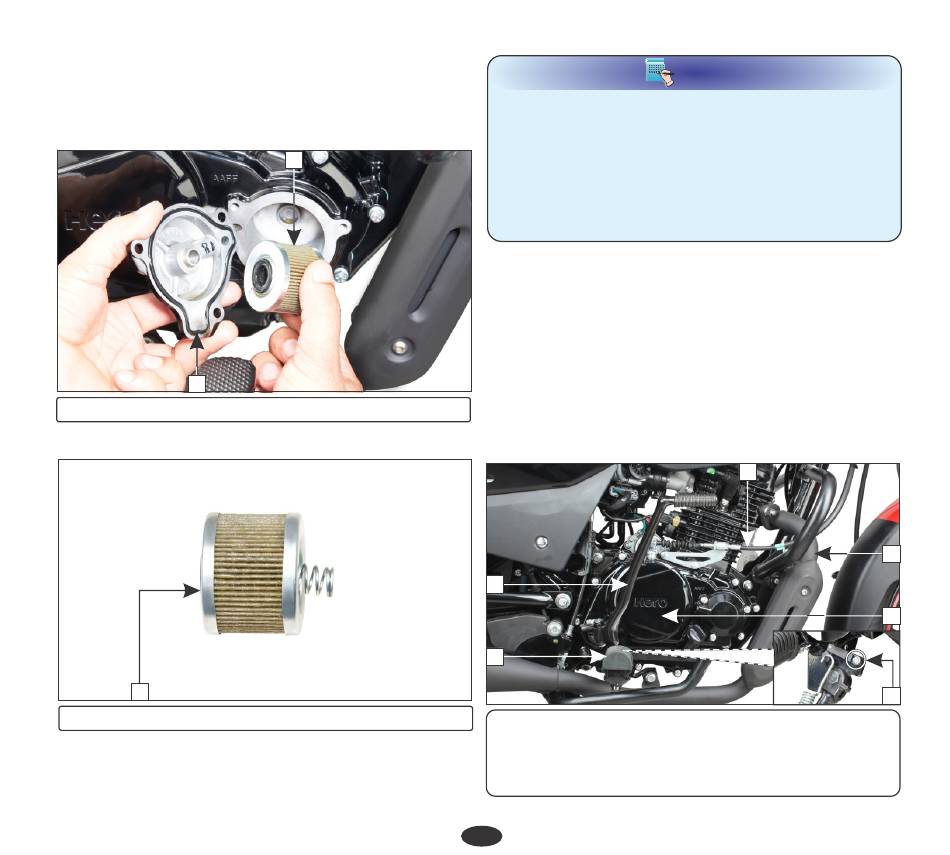

Remove the engine oil filter element cover
•
(2) with O-ring (3).
Remove the engine oil filter element (4)
•
from the cover.
3
(3) O-ring (4) Engine oil filter element
Replace the engine oil filter element (4).
•
4
(4) Engine oil filter element
4
When the engine oil filter element replaced
•
always replace the O-ring with the new one.
Make sure that O-ring is properly seated.
•
Apply engine oil on engine oil filter element
•
before installation.
Inspect and replace engine oil filter element
•
as specified in the maintenance schedule.
Installation is in the reverse order of
•
removal.

OIL FILTER SCREEN

Drain the engine oil thoroughly (page 34).
•
Remove the side stand switch screw (1).
•
D isconnect the lutch able ( ) c
•
Remove the ick tarter edal ( ), k s
•
(4), rider footrest assembly with side stand
(5) and right crankcase cover (6).
3
5
(1) Side stand switch screw (2) Clutch cable
(3) Kick starter pedal
(5) Rider footrest assembly with side stand
(6) Right crankcase cover
35
NOTE
c 2 .
p 3 muffler
2
(4) Muffler
4
6
1
