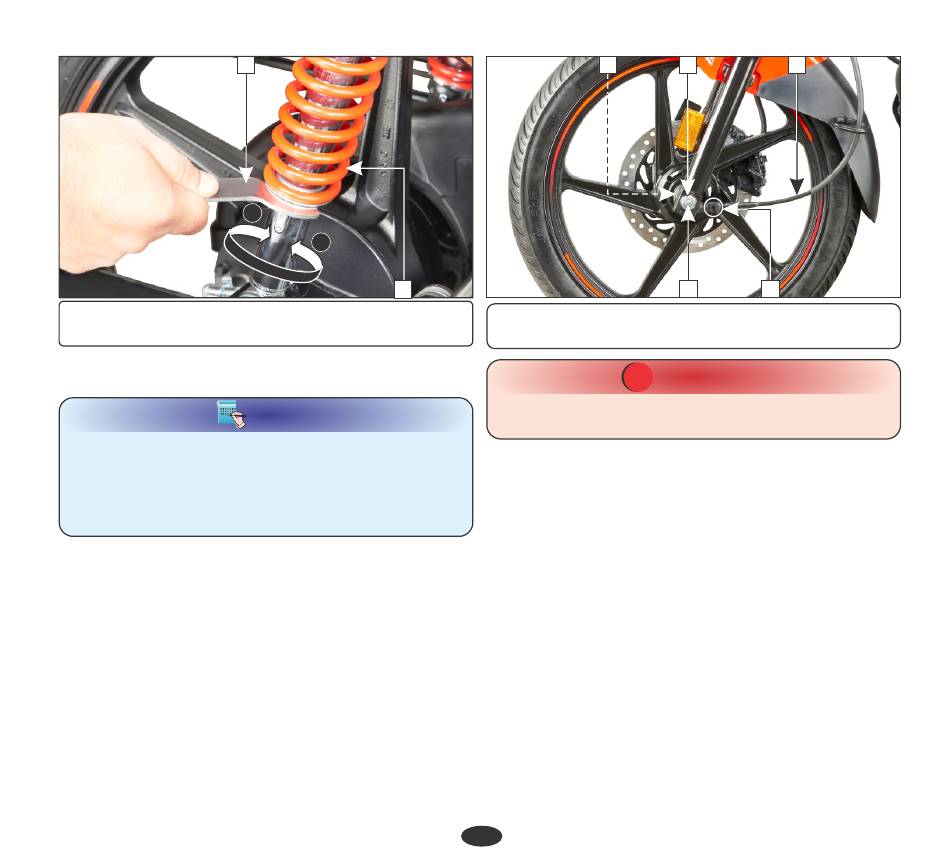

(1) Rear shock absorber
(A) Stiffer
In direction A: Stiffer
•
In direction B: Softer
•
Always adjust both the rear shock absorbers to
the same position. To adjust the rear shock
absorber (1), use the rear shock absorber
adjustment tool (Pin spanner) (2) available in
the tool kit.

WHEEL

(a) Front wheel (Disc type)
Removal
Support the vehicle securely on the main
•
stand and raise the front wheel off the
ground.
Remove the speedometer cable (1) by
•
pressing the tab (2) & pulling cable out
from the speedometer gearbox.
Remove the front axle nut (3).
•
Remove the axle (4) and the wheel.
•
Remove the side collar (5) from the wheel.
•
A
B
1
(2) Pin spanner
(B) Softer
NOTE
5
(1) Speedometer cable (2) Tab (3) Axle nut
(4) Axle
! !
Do not operate front brake lever when the
wheel is removed.
Installation
Install the side collar (1) to the right side of
•
the wheel hub and then install the
speedometer drive gear (2) on the left side
of the wheel hub.
Position the front wheel between the fork
•
legs by aligning the slot on the speedometer
gear box with the lug on the fork leg and the
disc between the brake pads to avoid
damage to the pads. Insert the axle from the
right side through the fork legs and wheel
hub.
Tighten the front axle nut to the specified
•
torque.
TORQUE : 5.0-6.0 kgf-m
49
3 1
4 2
(5) Side collar
CAUTION
