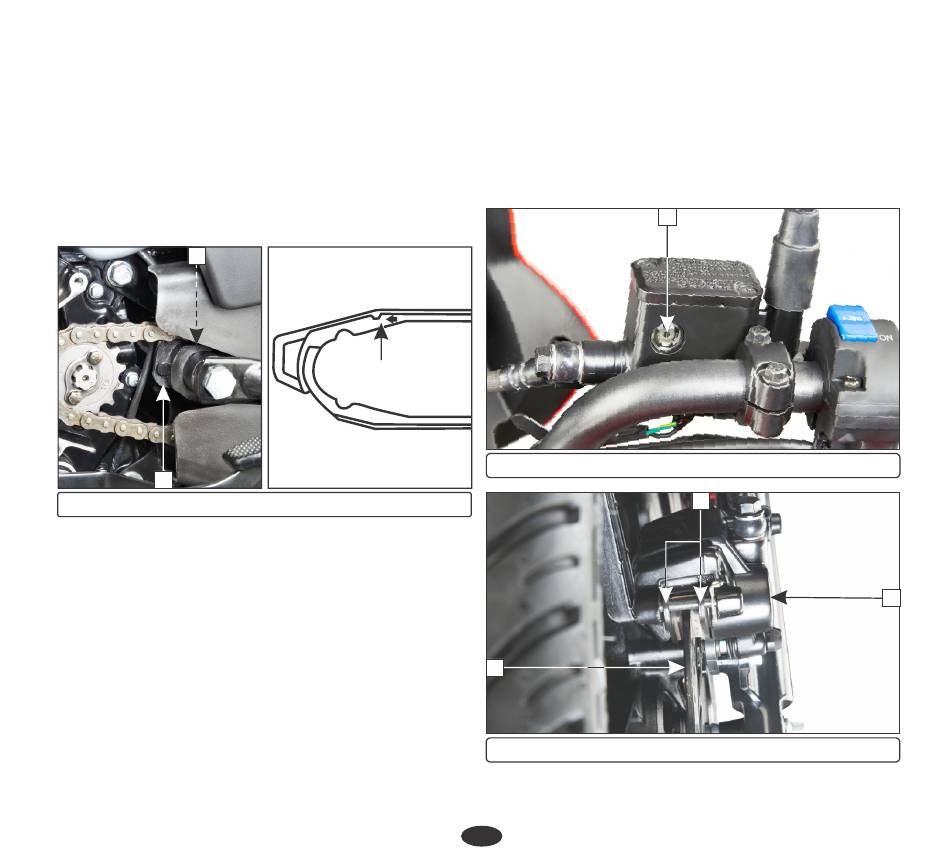

DRIVE CHAIN SLIDER INSPECTION

(Refer to "Maintenance Schedule" on
(page 29).
Check the drive chain slider (1) for wear, the
chain slider must be replaced if it is worn to the
bottom of the cutout or wear limit (2) is
reached. For replacement, visit your
Authorised
Hero MotoCorp
2
1
(1) Drive chain slider

BRAKES

Brakes (Integrated braking system)
Brakes are items of personal safety and should
always be maintained with proper adjustments.
When one applies the Integrated/Rear brake
pedal, front & rear brakes activate jointly.
(a) Front brake inspection (Disc type)
Master Cylinder/Reservoir.
Location: Right handle bar.
Brake fluid recommended: DoT 3 or DoT 4
Fluid level-Ensure that the brake fluid level
does not fall below "MIN" mark (1) on the
master cylinder, when checked with the
master cylinder parallel to the ground. The
level decreases gradually due to piston
movement to compensate pad wear. If the
level decreases abruptly, check for leakage in
the brake system and contact your Authorised
Hero MotoCorp
workshop.
CUTOUT
(2) Wear limit
4
44
workshop.
1
(1) "MIN" mark
(2) Brake pads (3) Caliper
2
(4) Disc
3
