HERO SPLENDOR iSMART PROGRAMMED FI Manual page 54

(1) Side collar (2) Speedometer drive gear
After installing the wheel apply the brake
•
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not rotate
freely.
(b) Front wheel (Drum type)
Removal
Support the vehicle securely on the main
•
stand and raise the front wheel off the
ground.

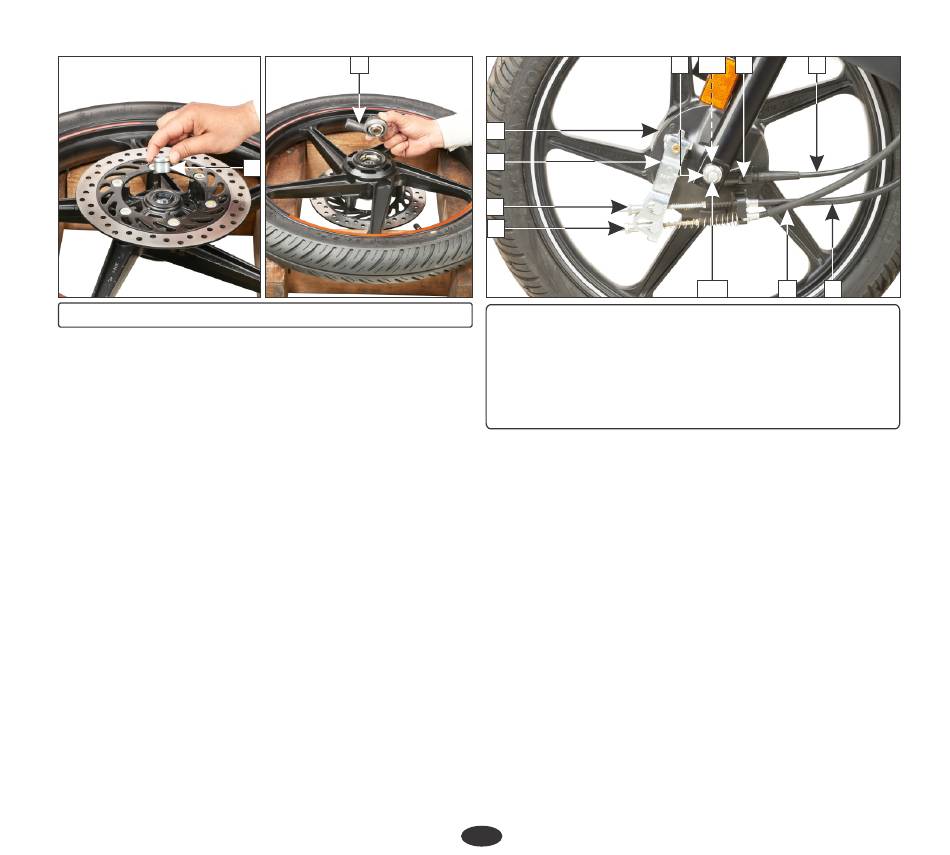

Remove the speedometer cable (1) by
•
pressing the tab (2) & pulling cable out
from the speedometer gearbox.
Disconnect the front brake cable (3) and
•
integrated brake cable (4) from the
integrated brake arm (5) and brake panel
(6) by removing the front brake adjusting
nut (7) and integrated brake adjusting nut
(8).
2
1
6
5
8
7
(1) Speedometer cable (2) Tab
(3) Front brake cable (4) Integrated brake cable
(5) Brake arm
(7) Front brake adjusting nut
(8) Integrated brake adjusting nut
(9) Axle nut (10) Axle
Remove the axle nut (9).
•
Remove the axle (10) and side collar (11).
•
Remove the wheel.
•
Installation
Reverse the removal procedure.
•
Install the front wheel by ensuring that the
•
lug (12) on the left fork is located in the slot
(13) in the brake panel.
Tighten the axle nut.
•
Axle nut torque: 5.4 Kgf-m
50
9 11 2 1
10 3 4
(6) Brake panel
(11) Side collar
