"F" & "C" is marked on integrated brake arm.

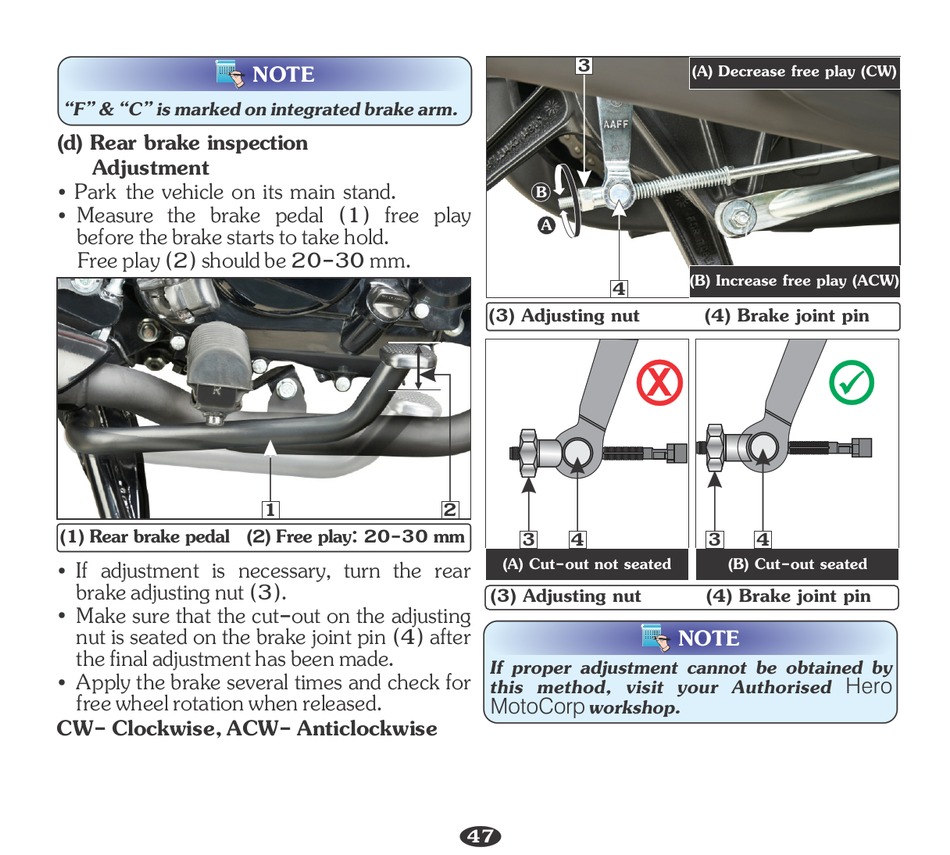

(d) Rear brake inspection
Adjustment
Park the vehicle on its main stand.
•
Measure the brake pedal (1) free play
•
before the brake starts to take hold.
Free play (2) should be 20-30 mm.
(1) Rear brake pedal (2) Free play: 20-30 mm
If adjustment is necessary, turn the rear
•
brake adjusting nut (3).
Make sure that the cut-out on the adjusting
•
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
Apply the brake several times and check for
•
free wheel rotation when released.
CW- Clockwise, ACW- Anticlockwise
NOTE
1 1
3
B
A
4
(3) Adjusting nut
2
3 4
(A) Cut-out not seated
(3) Adjusting nut
If proper adjustment cannot be obtained by
this method, visit your Authorised
workshop.
MotoCorp
47
(A) Decrease free play (CW)
(B) Increase free play (ACW)
(4) Brake joint pin
X
3 4
(B) Cut-out seated
(4) Brake joint pin
