HERO SPLENDOR iSMART PROGRAMMED FI Manual page 20

2. Clutch switch
There is a clutch switch (2) provided for the
safety of the rider. The vehicle cannot be
started by electric starter switch until the clutch
lever is operated when the vehicle is engaged
in gear.
1
(1) Passing switch
3. Headlamp dimmer switch
The headlamp operates only when the engine
is running or when passing switch is operated.
Select " " for high beam and "
low beam.
4. Turn signal lamp switch (
Shift the turn signal lamp switch (4) sideways
for right/left indications and leave it to come
back to its normal position on its own.
IMPORTANT: To switch "OFF" the turn
signal after completing the turn, gently push
inside.

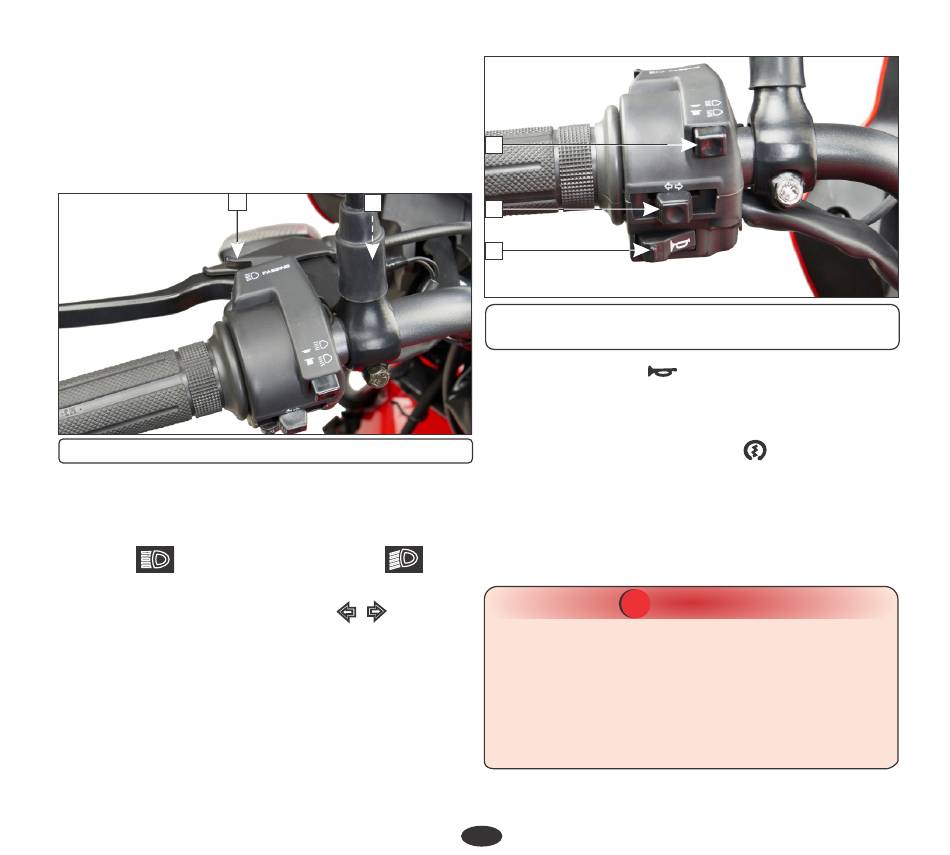

2
(2) Clutch switch
" for
)
16
3
4
5
(3) Headlamp dimmer switch
(4) Turn signal lamp switch (5) Horn switch
5. Horn switch ( )
Press the horn switch (5) to operate the horn.
Right handlebar controls
1. Electric starter switch ( )
Ensure starter switch (1) is operated when the
vehicle is in neutral gear. If the vehicle is
engaged in gear press the clutch lever before
operating the starter switch. Release starter
switch after the engine has started.
CAUTION
! !
If electric starter switch is pressed
•
continuously and engine does not start,
cranking of engine will stop after 5 secs.
After that rider again needs to press the
electric starter switch.
If engine started, cranking of the engine will
•
stop after r/min reaches more than 850.
