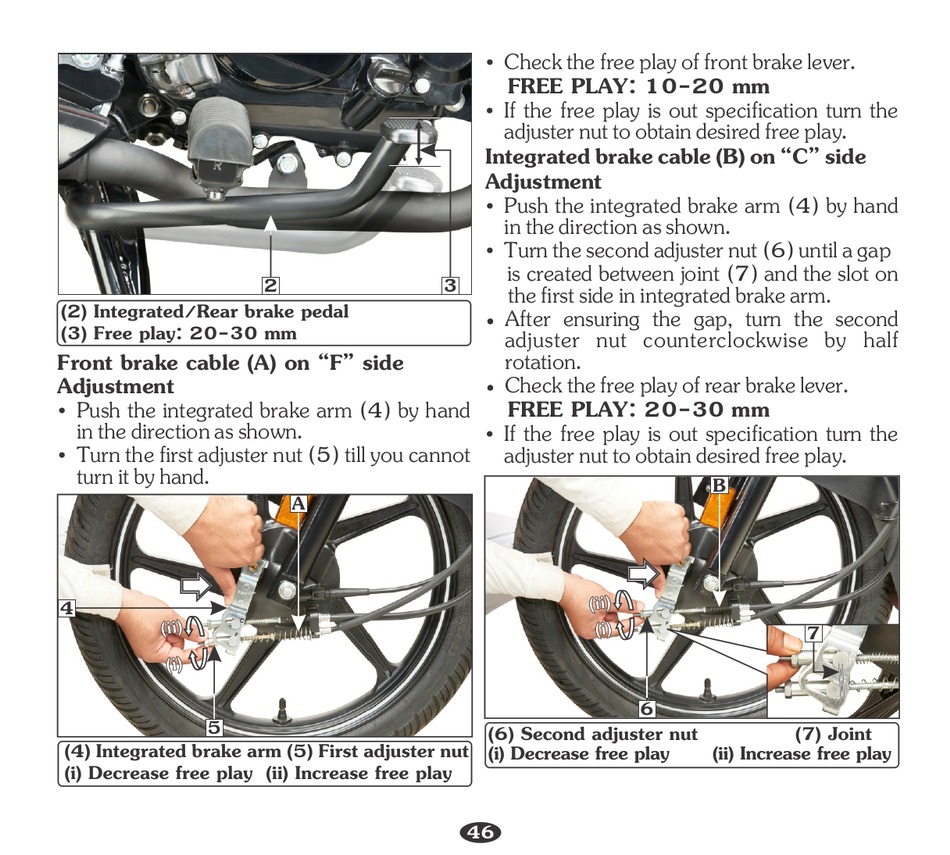

HERO SPLENDOR iSMART PROGRAMMED FI Manual page 50

(2) Integrated/Rear brake pedal
(3) Free play: 20-30 mm
Front brake cable (A) on "F" side
Adjustment
Push the integrated brake arm (4) by hand
Ÿ
in the direction as shown.
Turn the first adjuster nut (5) till you cannot
Ÿ
turn it by hand.
4
5
(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
1 2
A
Check the free play of front brake lever.
Ÿ
FREE PLAY: 10-20 mm
If the free play is out specification turn the
Ÿ
adjuster nut to obtain desired free play.
Integrated brake cable (B) on "C" side
Adjustment
Push the integrated brake arm (4) by hand
Ÿ
in the direction as shown.
Turn the second adjuster nut (6) until a gap
Ÿ
is created between joint (7) and the slot on
3
the first side in integrated brake arm.
After ensuring the gap, turn the second
•
adjuster nut counterclockwise by half
rotation.
Check the free play of rear brake lever.
•
FREE PLAY: 20-30 mm
If the free play is out specification turn the
Ÿ
adjuster nut to obtain desired free play.
(6) Second adjuster nut
(i) Decrease free play
46
B
7
6
(7) Joint
(ii) Increase free play
