Chapter 2: Jumpers and Connectors

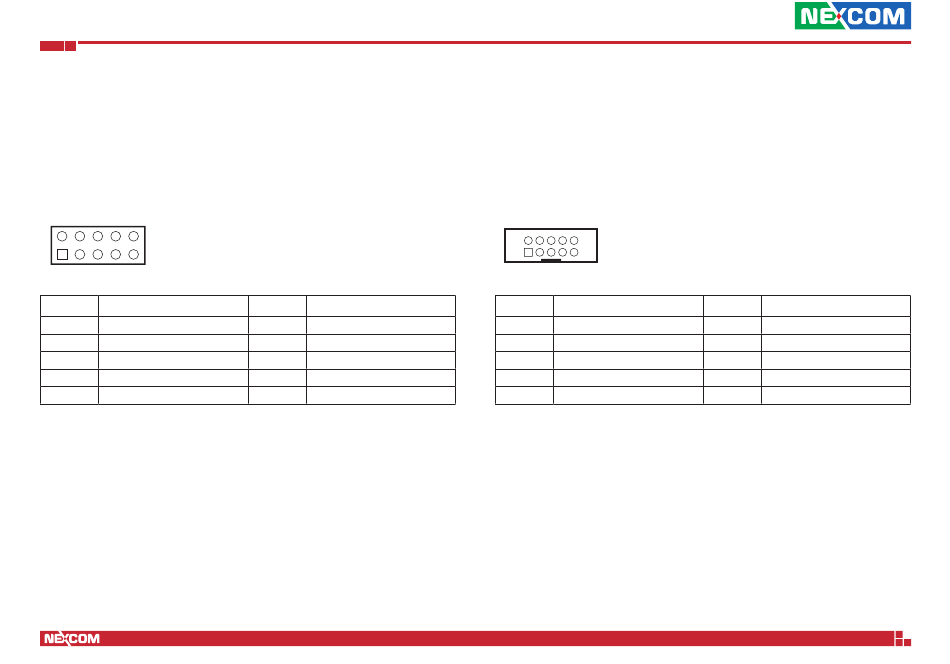

Connector Pin Definitions

Internal Connectors

Digital IO (4 Input/4 Output)

Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: J8
2 10
1 9
Pin Definition
1 VCC5
3 SIO_GP32
5 SIO_GP03
7 SIO_GP04
9 SIO_GP05
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 SIO_GP06
6 SIO_GP07
8 SIO_GP76
10 SIO_GP77

COM 2 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: COM1
10
2
1 9
Pin Definition
1 SP_DCD2
3 SP_TXD2
5 GND
7 SP_RTS2
9 SP_RI2
14
Pin Definition
2 SP_RXD2
4 SP_DTR2
6 SP_DSR2
8 SP_CTS2
10 GND
