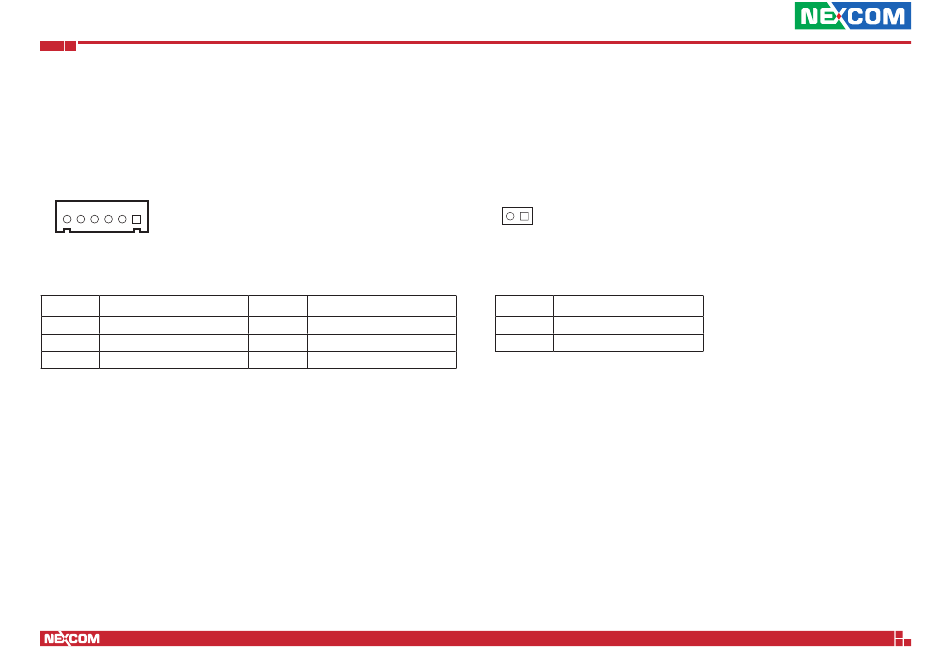

Chapter 2: Jumpers and Connectors
USB2 JST Header Connector
Connector type: 1x6 6-pin header, 2.0mm pitch
Connector location: JUSB1
6
1
Pin
Definition
1
5VDUAL
3
USB0+
5
USB1+
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
USB0-
4
USB1-
6
GND
HW Reset Pin Header
Connector type: 1x2 2-pin header, 2.54mm pitch
Connector location: JRST1
2
1
Pin
Definition
1
PCH_SYS_RESET_N_R
2
GND
15
NSA 3150 User Manual
