Chapter 2: Jumpers and Connectors

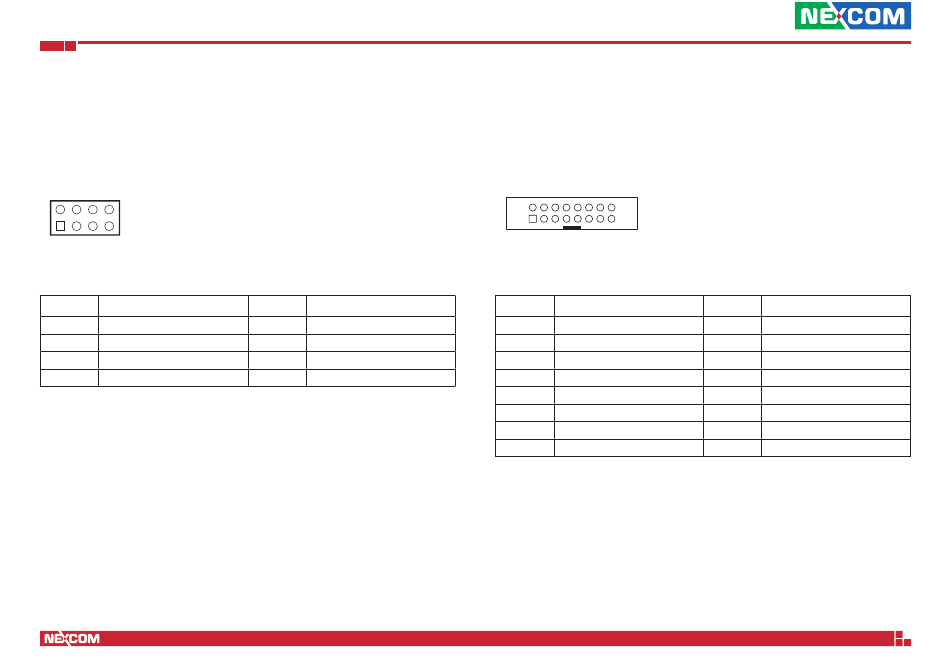

Keyboard/Mouse Connector

Connector type: 2x4 8-pin header, 2.54mm pitch
Connector location: JKBMS1
2 8
1 7
Pin Definition
1 VCC5
3 KDAT
5 KCLK
7 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VCC5
4 MDAT
6 MCLK
8 GND

VGA Connector

Connector type: 2x8 16-pin header, 2.0mm pitch
Connector location: JVGA1
2 16
1 15
Pin Definition
1 RED_VGA
3 BLUE_VGA
5 GND
7 GND
9 VGA_+5V
11 NC
13 HSYNC_VGA
15 DDC_CLK_VGA
20
Pin Definition
2 GREEN_VGA
4 NC
6 GND
8 GND
10 GND
12 DDC_DATA_VGA
14 VSYNC_VGA
16 NC
