Chapter 3: System Setup
Rackmount Bracket Kit (Optional)
The rackmount bracket kit provides a convenient and economical way of
installing the server into a rack cabinet.

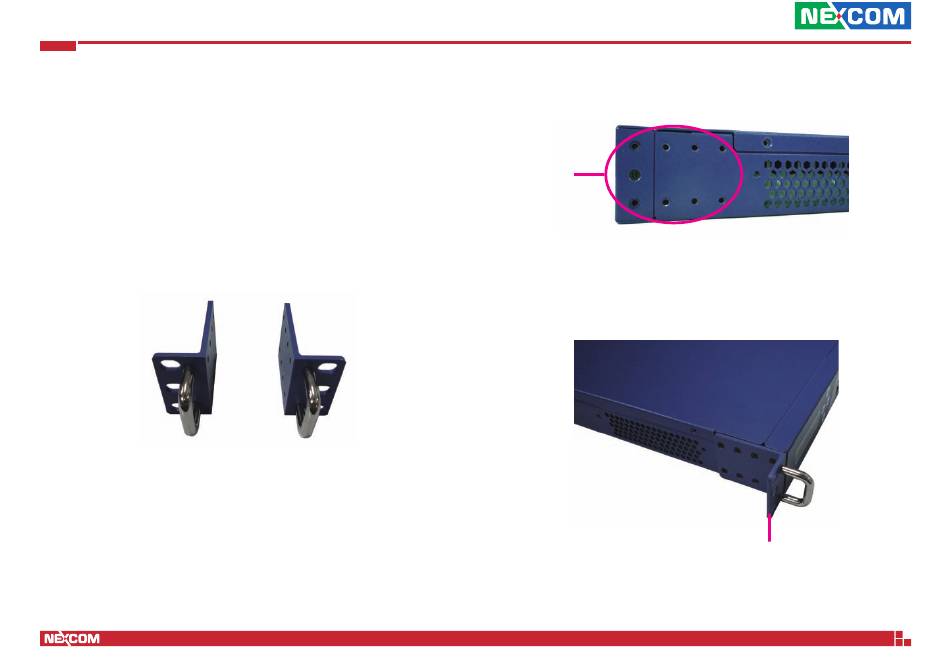

Attaching the Long Rack Ears
The long rack ears are used to support the server in a rack cabinet.
1. The rackmount bracket kit comes with a pair of long rack ears and 16
screws.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
2. There are 8 mounting holes on each side of the front panel.
Mounting
holes
3. Align the mounting holes on the rack ear with the mounting holes on
the front panel. Give special attention to the orientation of the rack ear.
Secure the rack ear with mounting screws.
4. Repeat step 3 to secure the other rack ear.
34
Rack ear
NSA 3150 User Manual
