Chapter 3: System Setup

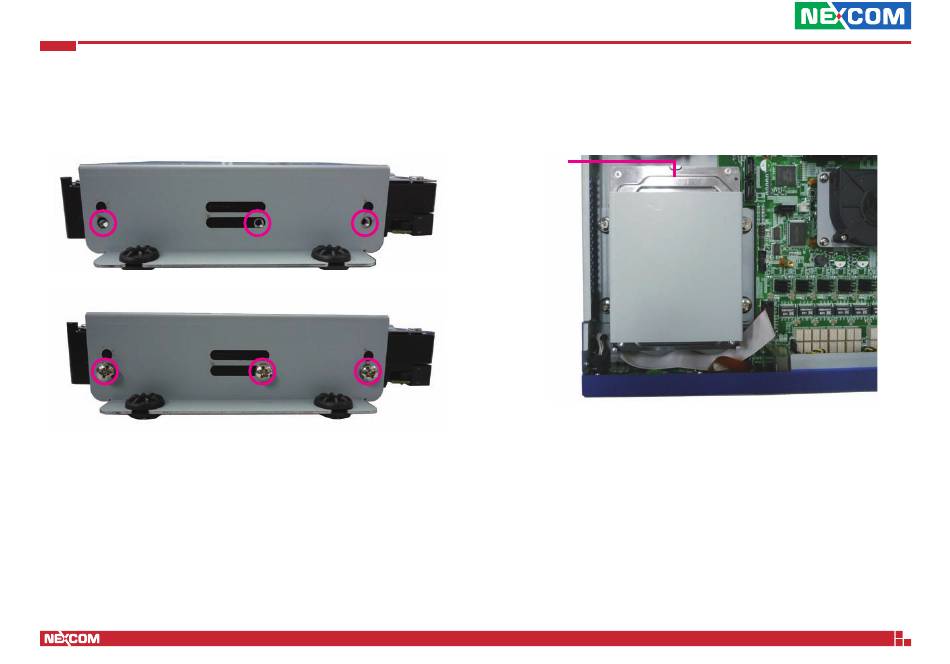

3. Align the mounting holes that are on the sides of the SATA drive with
the mounting holes on the drive bay. Use the provided mounting screws
to secure the SATA drive in place.
4. Repeat step 3 for securing the screws on the other side of the HDD tray.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
5. Place the drive into the chassis with the connector side facing the board,
and then use the provided mounting screws to secure the drive bay in
place.
Connector
side
31
NSA 3150 User Manual
