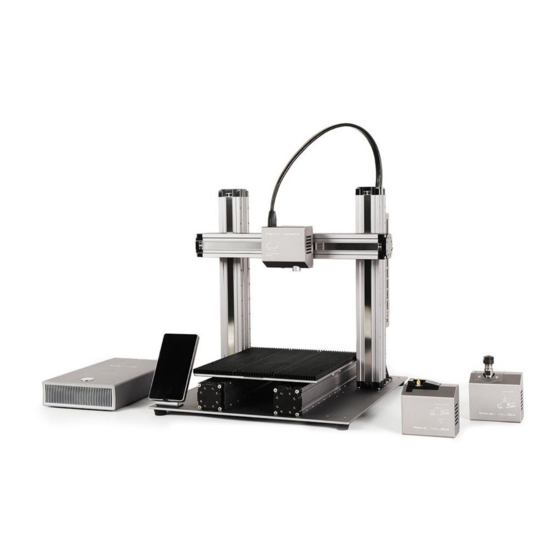

Troubleshooting Guide for
Snapmaker 2.0 3-in-1 3D Printers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapmaker 2.0

Summary of Contents for Snapmaker 2.0

  • Page 1 DISTRIBUTOR TECHNICAL SUPPORT V 1.0 Troubleshooting Guide for Snapmaker 2.0 3-in-1 3D Printers...

  • Page 2: Table Of Contents

    CONTENTS 01 Hardware 02 Touchscreen 02 Touchscreen Shows "not responding" 02 Touchscreen Shows "Fabscreen has stopped" 02 Touchscreen Flashes 03 Touchscreen Is Black  05 Linear Module 05 Clunk Sound While Y Axes Are Moving 05 Linear Module Burns out Suddenly 05 Linear Module Only Moves in One Direction 06 Slider (Carriage) of Linear Module Comes Loose 09 Stainless Steel Strip of Linear Module Comes Loose 10 3D Printing 10 3D Printing Module Isn't Detected...
  • Page 3 26 Machine Is Stuck in Processing during Auto Focus 27 Camera Capture Doesn't Work 29 Laser Module Doesn't Emit Laser 31 Camera Sign Is Yellow on Touchscreen 33 Laser Won't Turn off 35 Laser Won't Burn Material When Enclosure Is Used 36 Enclosure 38 Others 38 Power Module Doesn't Work 38 G-code File Wi-Fi Transfer Is Unsuccessful 39 Machine Can't Detect USB Drive 39 None of the Toolheads Can Be Detected by Machine 40 Alternative to Upgrading Machine's Firmware via USB Drive...
  • Page 4 Please contact support@snapmaker.com with a detailed description of the problem and a video of your troubleshooting process, and send a carbon copy (cc.) to your sales representative (                      @snapmaker. com) at Snapmaker.

  • Page 5: Hardware

    Hardware This chapter covers problems with the modules and addons of the Snapmaker 2.0, which includes the Enclosure, the Touchscreen, the 3D Printing Module, the Laser Module, and the Controller. For problems regarding the Snapmaker Luban, go to the next chapter.

  • Page 6: Touchscreen

    1. Update the firmware. For the latest version, visit https://forum.snapmaker.com/t/snapmaker-2-0-firmware-updates-and-downloads/5443/12. 2. Try a smaller G-code file. 3. Download the latest version of Snapmaker Luban from https://luban.xyz/, and try to generate the G-code file on Snapmaker Luban. Touchscreen Flashes The Touchscreen flashes as in the video: https://youtu.be/ZwH8v3V9ETo.

  • Page 7: Touchscreen Is Black

    1. Check whether the light at the back of the Controller is breathing. - If it breathes slowly, launch Snapmaker Luban, and try to connect your computer with the machine using a USB cable. If Luban has no problem connecting with and controlling the machine, then the Controller is fine. In this case, go to step 2.
  • Page 8 Hardware - If the test values are normal, then the Power Module and the DC power cable are fine, and the Controller is the problem. In this case, replacing the Controller might solve the problem. - If the values are not normal (pin 1 and pin 4 is 0 V or 3 V, for example), then replacing the Power Module and DC power cable might solve the problem.

  • Page 9: Linear Module

    • The end-stop switch is stuck. Actions 1. Connect the machine to your computer with a USB cable.  2. Launch the Snapmaker Luban. In the console, input M119, and check the status of the end-stop switch.  - If X_min or X_max is displayed as TRIGGERED, then the end-stop switch of the X Linear Module might be stuck.

  • Page 10: Slider (Carriage) Of Linear Module Comes Loose

    4. Check if the Linear Module works. If not, replacing the Linear Module might solve the problem. Slider (Carriage) of Linear Module Comes Loose Actions 1. Take the cover (the one with no cable attached) off from the Linear Module. You will need the 2.5 & 2.0 hex screwdriver.
  • Page 11 2. Slide the Slider off from the Linear Module. Note: One side of the bearings is adjustable.
  • Page 12 Hardware 3. Loosen the screw circled in the picture below. 4. Twist the bearing screw with an H3 hex screwdriver to adjust the distance between the bearings of two sides. The distance should be 34.29 mm. 5. Tighten the fastening screw first and then tighten the bearing screw. 6.

  • Page 13: Stainless Steel Strip Of Linear Module Comes Loose

    Stainless Steel Strip of Linear Module Comes Loose Actions Please refer to the video on installing the stainless steel strip of the Linear Module at https://drive.google.com/ file/d/1tUFob6tJCzQmuNlBeBNeBUayOdsDXi4W/view?usp=sharing.

  • Page 14: 3D Printing

    Hardware 3D Printing 3D Printing Module Isn't Detected If you turn on the machine, and the Touchscreen displays an error message Snapmaker tech-team, then it might be that the 3D Printing Module is not detected by the machine. Possible Causes • The toolhead cable is broken. • The Linear Module or the Controller is broken.

  • Page 15: First Layer Doesn't Stick To Print Sheet

    2. Remove all the cables of the Linear Modules from the Controller, and see if the Printing Module, Laser Module, and CNC Module can be detected. - If yes, then it means one or more Linear Modules are disrupting Controller Network Area (CAN) communication.

  • Page 16: 3D Printing Module Pushes Into Print Sheet

    Hardware 2. In Luban, go to Printing Settings to set the Initial Layer Print Speed as 8 mm/s and try again. 3. Try another filament. 3D Printing Module Pushes into Print Sheet The 3D Printing Module clashes against the Print Sheet during calibration or printing. Possible Causes •...

  • Page 17: Filament Runout

    2. Check whether the screws on the aluminum grid platform face downward as illustrated. If not, re-install all the screws on the platform.   3. If the problem persists, check whether the probe sensor is working properly. For detailed instructions, see Adjustprobe/proximitysensor of 3DPrinting Module.  4.

  • Page 18: Filament Won't Load

    Hardware Possible Causes • The filament switch is broken. Actions   1. Remove the fan: https://youtu.be/e2L_Y_HZGgA. 2. Adjust the filament switch: https://youtu.be/_KAQvMNoJUQ. Filament Won't Load Possible Causes • The nozzle is jammed. • The filament is bent or compromised. • The 3D Printing Module or Controller is broken. Actions 1.
  • Page 19 4. On the Touchscreen, go to Control > Nozzle. 5. Wait for the nozzle to heat up until you can tap the Load or Unload button. Make sure the nozzle temperature matches the working temperature of the filament you are using (ABS generally requires a higher temperature than PLA, for example). Tap Load to see if the gear inside the 3D Printing Module rotates. - If it does, then use a metal stick to poke the feeding hole (see picture below).

  • Page 20: Blobs On Nozzle

    Hardware - If it doesn't, then check whether the Laser Module works. - If the Laser Module works well, then the Printing Module itself is broken, replacing it might solve the problem. - If the Laser Module won't emit blue laser light (or won't stop emitting it, for that matter), then something is wrong with the Controller.
  • Page 21 Actions 1. Replace the hot end before trying any of the following steps. A spare hot end is included in the box. For how to change the new hot end kit, see https://youtu.be/2anRrb_R63o. Note: If it's hard to remove the blobs from the current hot end, heat the nozzle up to 230 ℃ and try again. 2.

  • Page 22: Nozzle Temperature Is Too High

    Hardware ℃  Nozzle Temp Touchscreen Shows a -30 Possible Causes • The thermistor is dislocated. • The hot end is broken.  Actions 1. Check if the thermistor (see circled in picture below) is securely seated in the hole. Plug it back in if it is not. If the problem persists, try the next step.

  • Page 23: Heated Bed Won't Heat Up

    2. If the problem persists, replacing the 3D Printing Module might solve the problem. Heated Bed Won't Heat up The Heated Bed won't heat up when you set the target temperature on the Touchscreen or when you start a print. Possible Causes •...
  • Page 24 Hardware 2. Get a multimeter, unplug the Heated Bed cable from the Controller, and measure the resistance of the Heated Bed. The resistance should be in the range of 60 KΩ – 130 KΩ. If the test value is out of the range, then the Heated Bed might be broken, replacing it might solve the issue. 3.

  • Page 25: Printing Module Clashes Against The Print Sheet During Calibration

    1. Download and install the latest version of firmware from     https://forum.snapmaker.com/t/snapmaker-2-0-firmware-updates-and-downloads/5443/12. See if this solves the problem. If not, follow the steps below to test your probe sensor. 2. Start auto-calibration on the Touchscreen. The 3D Printing Module will go back to its home position and then move down.
  • Page 26 Hardware 4.3 Loosen the screw of the probe sensor so that it can be adjusted. 4.4 Find a credit card (or anything with a height of about 1 mm). Move the module down until the nozzle tip touches the Print Sheet; then put the card under the probe sensor so that the sensor is approximately 1 mm higher than where the nozzle tip is.
  • Page 27 4.7 Redo calibration following the prompts on the Touchscreen. Keep the machine connected to the computer the whole time.

  • Page 28: Laser

    Hardware Laser Laser Calibration Fails If the Laser Calibration doesn't go well, the Touchscreen will display Failed.  Possible Causes • The laser is too high. Actions Two options are available. 1. Redo auto focus. Tap Failed, slide the scale left to select the leftmost line, and tap Save. The screen should go back to the main menu.

  • Page 29: Laser Is Discontinuous Or Weak

    2. Change the Laser Height manually. On the Touchscreen, tap Failed > Settings > Laser > Adjust Laser Height. Set the Laser Height to 23.0mm and then recalibrate. If the Touchscreen keeps showing Failed, and several lines fail to be burned, then lower the laser height (to 21.5 mm or 19 mm, for example), and try again. Laser Is Discontinuous Or Weak The Laser Module emits weak light and doesn't engrave at its full power, and therefore the module can't finish Auto Focus.

  • Page 30: Machine Is Stuck In Processing During Auto Focus

    Actions Twist to remove the bottom half of the laser shade, and see if the problem persists. If so, please export the log file from the Touchscreen to your USB drive and send it to support@snapmaker.com for further investigation. For how to export the log file, see https://drive.google.com/file/d/189CIUW4D4o_Qm2mY2j63N3rKzn7n3zZp/view. ...

  • Page 31: Camera Capture Doesn't Work

    Camera Capture Doesn't Work If the image isn't fully processed, it indicates that camera capture isn't working properly. Possible Causes • Your Snapmaker Luban is running the old version. • You are not using camera capture correctly. Actions 1. Download the latest version of Snapmaker Luban from ...
  • Page 32 2.2 Click Start to see if it works properly. 2.3 If the camera capture feature still doesn't work, please find the images generated by the camera through the following path. Export them to your USB drive, and send them to support@snapmaker.com for further investigation. - Windows OS: C:\Users\admin\AppData\Roaming\snapmaker-luban\Tmp - macOS: /Users/admin/Library/Application\ Support/snapmaker-luban/Tmp Note: admin is your username.

  • Page 33: Laser Module Doesn't Emit Laser

    Laser Module Doesn't Emit Laser Possible Causes • The laser is disabled. • The Controller is broken. Actions 1. On the Touchscreen, go to Control > Laser Power > Laser Status to turn it on. See if blue laser light comes out. If not, go to step 2. 2.
  • Page 34 Hardware 4. Wait for the nozzle to reach 200 ℃ , tap Load or Unload, and see if the gear in the module rotates. - If it does, then change the toolhead cable.  - If it doesn't, then the Controller is broken. It might be that the customer has connected the toolhead cable in the wrong direction, and the toolhead and the Controller is damaged as a result.

  • Page 35: Camera Sign Is Yellow On Touchscreen

    Camera Sign Is Yellow on Touchscreen When the camera sign on the Touchscreen is yellow, it means that the camera isn't working properly. Possible causes • Something is wrong with the Touchscreen's settings. • The toolhead cable is broken. Actions 1. Reset the Touchscreen.  1.1 Tap Settings >...
  • Page 36 Hardware 1.2 Tap the image five times and the Touchscreen will prompt you to Enter Developer Mode. Tap OK. 1.3 Under Developer Mode, tap Experiment > Preference > Reset All. See if this solves the problem. If not, go to step 2.

  • Page 37: Laser Won't Turn Off

    Toolhead Cable Y Conversion Cable Z Conversion Cable Laser Won't Turn off The blue laser light of the Laser Module turns on and can't be turned off via the Touchscreen or Snapmaker Luabn. Possible Causes • The Toolhead cable is broken. • The Laser Module or the Controller is broken.
  • Page 38 Hardware 2.2 On the Touchscreen, go to Control > Nozzle. 2.3 Wait for the nozzle to heat up until you can tap Load or Unload. Tap Load to see if the gear inside the 3D Printing Module rotates. - If it does, then the Laser Module might be broken, replacing it might solve the problem. - If it doesn't, then something is wrong with the Controller. Go to step 3.

  • Page 39: Laser Won't Burn Material When Enclosure Is Used

    - You will need to first replace the Controller. Then, check if the 3D Printing Module and the Laser Module work properly with the new Controller. If not, these modules may also be broken and need to be replaced. Laser Won't Burn Material When Enclosure Is Used Possible Cause •...

  • Page 40: Enclosure

    Hardware Enclosure Enclosure Isn't Detected Or Recognized The Enclosure of Snapmaker 2.0 isn't recognized by the machine. That is, when it's connected to the machine, there is no Enclosure icon on the Touchscreen. Possible Causes • The firmware is outdated.
  • Page 41 4. Unplug the enclosure cable from the Converter while the other end remaining connected to the Controller. Turn on the machine. Set the multimeter to voltage mode and test the two big pins. The normal value should be 24 V.  5. Test the GND & pin 1, and then test the GND & pin 2 (see below) respectively. The test results should both be 2.2 V. If any of the test results in step 4 or 5 is abnormal, then the Controller is broken.

  • Page 42: Others

      3. Download and install the latest version of Luban from https://snapmaker.com/product/snapmaker-2/downloads. If this doesn't solve the problem, try the next step. In the meantime, we would appreciate it that you file an issue on our GitHub page:  https://github.com/Snapmaker/Luban. Your feedback will motivate us to do better.

  • Page 43: Machine Can't Detect Usb Drive

    • The Controller is broken. Actions 1. Download and install the latest version of firmware from https://forum.snapmaker.com/t/snapmaker-2-0-firmware-updates-and-downloads/5443/12. 2. Turn off the machine, and unplug all the cables (except for the ones for the Power Module and Touchscreen) from the Controller. 3. Connect one of the three toolheads.

  • Page 44: Alternative To Upgrading Machine's Firmware Via Usb Drive

    Hardware 5. Turn off the machine and plug in another toolhead cable to repeat step 3 and 4 until you have tested all the toolheads. - If the problem persists, please contact us with the results and a recorded video via email. - If the toolheads can be detected, then the problem is with the Linear Modules or the port on the Controller.

  • Page 45: Software

    Software The Snapmaker Luban is still a young software, compared with many of its counterparts. And as with every software, Snapmaker Luban isn't perfect. The troubleshooting in this chapter is helpful in solving preliminary issues, and you should follow them first. If the problem persists, please  ...

  • Page 46: Luban Won't Generate G-Code File

    Software Luban Won't Generate G-code File The Snapmaker Luban fails to generate G-code files. The progress bar gets stuck. Possible Causes • This is an old version of Luban. • There is a bug in the software. • The file is too large to be parsed.

  • Page 47: Luban Is Blank Upon Launched

    5. Launch the Snapmaker Luban, select the correct port and try again. Luban Is Blank upon Launched The Snapmaker Luban goes blank right after you launch it, and only the menu bar on the top-left corner is available. Actions 1. Reload Snapmaker Luban. On the menu bar, click View > Reload (or press Ctrl + R) to reload Luban.
  • Page 48 6. If the problem persists, then proceed to track information with the Developer Tool. Launch Luban, and then press Ctrl + Shift + I keys at the same time to access the Developer Tool. Click Console, and screen capture the error messages. Email the captured image to support@snapmaker.com.

  • Page 49: Luban Shows "The Machine Is Not Ready

    Luban Shows "The machine is not ready" When trying to connect the machine to the Snapmaker Luban, it shows The machine is not ready or cannot open the port. Possible Causes • You haven't installed the CH340 driver. • You attempted to connect to the wrong port. ...

  • Page 50: No Camera Capture Button In Luban

    Software No Camera Capture Button in Luban Possible Cause • You are using the USB cable to connect the machine to Luban (camera capture can only be accessed via Wi-Fi connection). USB Cable Action Connect the machine with Luban via Wi-Fi instead, and you will be able to use camera capture. ...

  • Page 51: Appendix

    Appendix...

  • Page 52: Parts List

    Appendix Parts List CNC Module Heated Bed 3D Printing Module Laser Module Touchscreen Controller Linear Module Print Sheet | A350 QUICK START GUIDE MAKE SOMETHING WONDERFUL Material Bag CNC Carving Platform Power Module Quick Start Guide Filament Fixture Accessory Touchscreen Holder Converter Z-Axis Holder Laser Engraving/Cutting...
  • Page 53 Tool Box M4 x 8 Screw M4 x 30 Screw M4 x 10 Hex Socket M4 x 10 Hex Flat Head Screw Head Screw Wing Nut ER11 Collet (Only for 3.175 mm M4 x 70 Screw Foot + M4 x 10 Hex Socket CNC Bits) + ER11 Nut Head Screw Steel Strip Adjustor (For...

  • Page 54: Specs Sheet

    Appendix Specs Sheet Snapmaker 2.0 General The maximum length of the support platform of the Snapmaker 2.0 A150 model is 360 mm. The maximum length of the support platform of the Snapmaker 2.0 A250 model is 580 mm. The maximum length of the support platform of the Snapmaker 2.0 A350 model is...
  • Page 55 Wi-Fi, USB Cable, USB Flash Drive Connectivity 5”, Android OS, Quad Core A7 CPU @ 1.1 GHz Touchscreen Software Snapmaker Luban. You can also use third party software to generate G-code files. Supported OS macOS, Windows, Linux Rated Power 320 W...
  • Page 56 Appendix A150 Laser A250 A350 Built-in Camera Camera Laser Power 1600 mW 450 nm Laser Diode Wavelength 450 nm Safety Class Class 4 Supported Materials Wood, leather, plastic, fabric, paper, non-transparent acrylic, more being tested .svg, .jpeg, .png, .jpg, .bmp, .dxf, .snaplzr Design File Formats Processable Format...
  • Page 57 A150 A250 A350 Shank Diameter 0.5 mm–6.35 mm (0.02–0.25 inches) Spindle Speed 6,000–12,000 RPM Wood, acrylic, PCB, carbon fiber sheet, jade, more Supported Materials being tested .svg, .jpeg, .png, .jpg, .bmp, .dxf, .snapcnc Design File Formats Processable Format .cnc Note: The specifications are subject to change without notice.
