Page 2
We 2.0. We went beyond our limits once again. of people like you are using the Snapmaker rules of traditional desktop 3D printers and knew people had a lot of uncertainty about...
Page 3

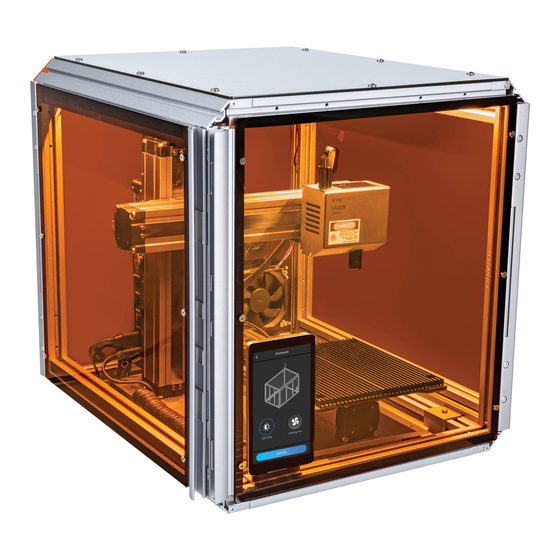

Modular System This machine is built for innovators. Our goal is to assist Snapmaker is not only a 3D printer, but also a powerful you to make the world a better place with a machine we machine that you can modify with all kinds of addons. You built with love.
Page 4
CONTENTS Before You Start Before You Start Enclosure Assembly How to Use...
Page 6
Rotate the enclosure parts horizontally to a certain degree as shown. may lead to personal injury, inferior results or damage to the Snapmaker products. Always make sure that anyone who uses this product knows and understands the contents of the manual to make the most out of it.
Page 7
Before You Start (2) Detach Touchscreen • Switch off the power and unplug the DC Power Cable. • Disconnect the touchscreen cable from the machine controller and detach the touchscreen. • Detach the touchscreen holder from the machine, and keep it properly. Enclosure Assembly...
Page 8
M4 × 28 Hex Socket Short Head M4 × 28 Hex Socket Short Head × 2 Screw Screw × 2 Make sure the 48CA Beams are accurately mounted onto the grooves of the 24 Beams when assembling. Snapmaker Enclosure |...
Page 9
Assemble the bottom rectangular frame – 3. Attach the Touchscreen Holder. M4 × 20 Hex Socket Head × 2 Screw Touchscreen Holder × 1 24 BEAM A150-1 × 1 M4 × 28 Hex Socket Short Head Screw × 4 Snapmaker Enclosure |...
Page 10
48CA BEAM A150-1 × 1 24 BEAM A150-1 × 1 24 BEAM A150-2 × 3 M4 × 28 Hex Socket Short Head M4 × 28 Hex Socket Short Head × 8 × 2 Screw Screw Snapmaker Enclosure |...
Page 11
Notice the position of the LED Strip Port. M4 × 28 Hex Socket Short Head × 4 Screw 48CA BEAM A150-1 × 1 24 BEAM A150-1 × 1 M4 × 28 Hex Socket Short Head × 2 Screw Snapmaker Enclosure |...
Page 12
180° STEP 08 M4 × 28 Hex Socket Short Head Attach 8 M4 × 28 screws, and × 8 Screw tighten all the 16 M4 × 28 screws that are attached in Step 5 and Step 9. Snapmaker Enclosure |...
Page 13
When having difficulty in aligning the Back Panel's screw holes with those of the frame, it's suggested to slightly loosen the screws that are attached in Step 5 & Step 9 and fine- tune the shape of the frame. Snapmaker Enclosure |...
Page 14
Enclosure Assembly 13 14 Connect the Door Switch Cable to either Door Switch Port of the Enclosure Converter. Connect the LED Strips with the Enclosure Converter using two LED Strip Cables. LED Strip Cable × 2 Snapmaker Enclosure |...
Page 15
Tilt the snap joint of the Cable Clip and press it against the groove of the beam to clip it in. The sheet of the Cable Clip should hold the cable inside the adjacent groove. Cable Clip × 8 Snapmaker Enclosure |...
Page 16
The sheet of the Cable Clip should hold the cable inside the adjacent groove. Cable Clip × 5 The provided vent duct measures 75mm in diameter and 2m in length. For the convenience of venting, please choose the position properly. Snapmaker Enclosure |...
Page 17
SMH Expansion Cable. Foot Fixture × 4 SMH Expansion Cable × 1 M4 × 20 Hex Socket Head × 4 Screw Make sure the connectors are in the right direction. Snapmaker Enclosure |...
Page 18
Align the Side Door with the left side face of the frame, then fix the Side Connect the Touchscreen to the machine’s Controller and place it on the Door with screws. Touchscreen Holder of the enclosure. Side Door × 1 M4 × 20 Hex Socket Head × 4 Screw Snapmaker Enclosure |...
Page 19
Attach the Side Panel. Door with screws. Snap Bushing × Front Door × 1 Side Panel × 1 M4 × 20 Hex Socket Head M4 × 12 Hex Socket Round Head Screw × 4 Screw × 8 Snapmaker Enclosure |...
Page 20
Enclosure Assembly 25 26 Attach the Filament Holder. Attach the Top Panel. M4 × 12 Hex Socket Round Head × 8 Screw Top Panel × 1 M4 × 20 Hex Socket Head × 2 Screw Snapmaker Enclosure |...
Page 21
Switch off the power and unplug the DC Power Cable, the SMH Expansion Cable and the Touchscreen cable. Detach the Foot Fixtures and move the machine into place. Enclose the machine and fix the Foot Fixtures. Snapmaker Enclosure |...
Page 22
3.1 LED Strips & Exhaust Fan Guides & Pictures / Snapmaker How to Use When the machine is not under a 3D printing, laser or CNC process, the LED Strips and the Exhaust Fan can be controlled by entering Home -> Enclosure -> LED Strip or Exhaust Fan on the touchscreen.
Page 23
When the machine is under working condition, you can swipe left on the Touchscreen to control the LED Strips and the Exhaust Fan. Guides & Pictures / Snapmaker To change the toolheads and the platforms when the machine is enclosed, follow the steps as follow.
Page 24
When the machine is connected to a computer with the USB cable, and is operated Check if all the cables are properly connected before powering on the machine. Wrong on a laser process through Snapmaker Luban, the Door Detection is not available. In connection may cause damage to the machine.
Page 25
We are here for you whenever you need general information or technical support: support@snapmaker.com For any sales inquiries, you can reach out to us at: sales@snapmaker.com You can purchase products in our official online store: https://shop.snapmaker.com Share anything you want with other Snapmaker users at our forum: https://forum.snapmaker.com...
