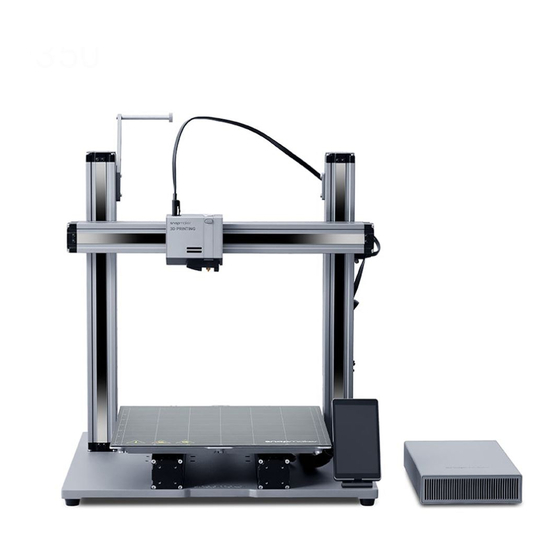

Snapmaker F350 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

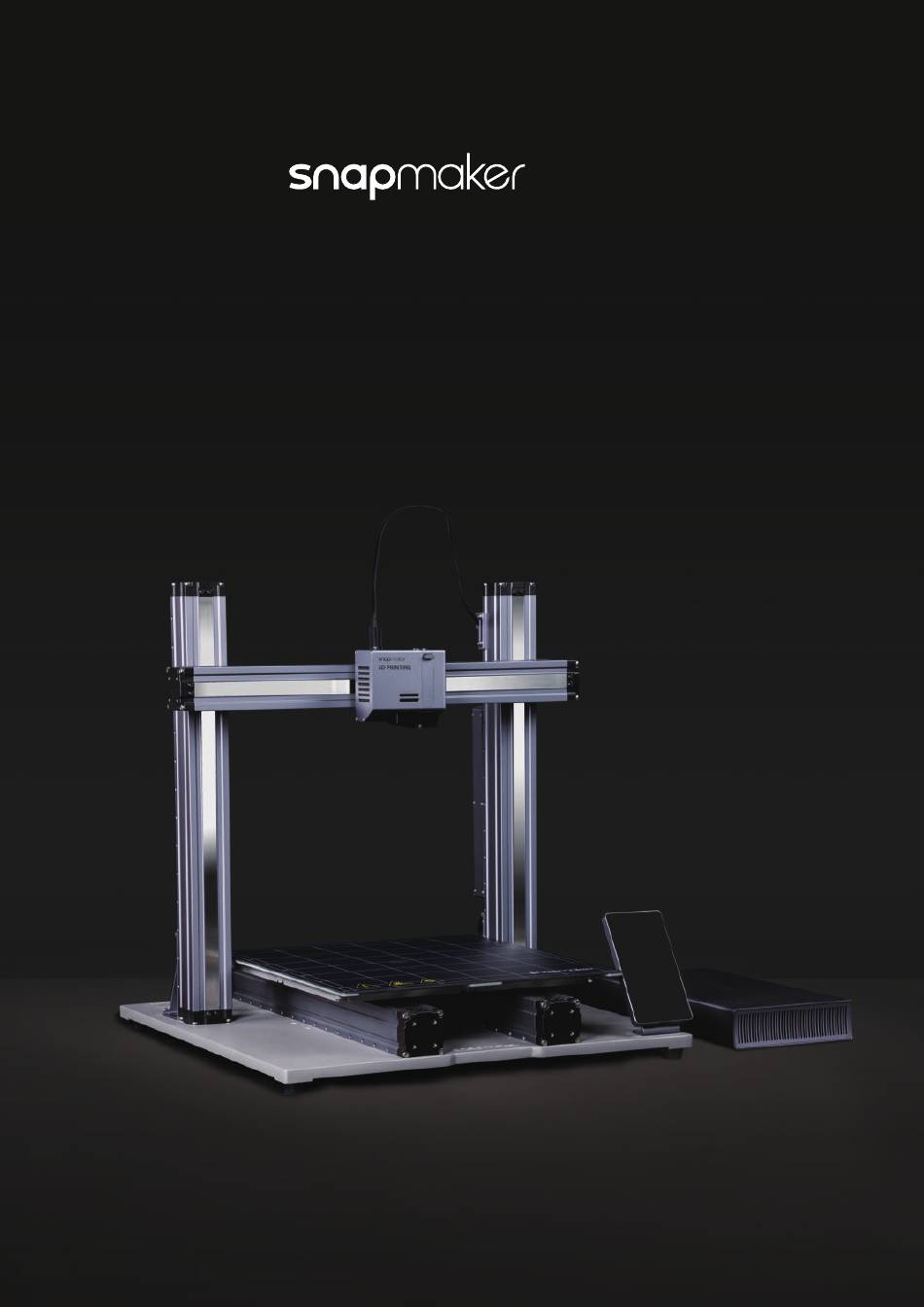

| F350
QUICK START GUIDE
MAKE SOMETHING WONDERFUL

Advertisement

loading
Need help?

Need help?

Do you have a question about the F350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snapmaker F350

Summary of Contents for Snapmaker F350

  • Page 1 | F350 QUICK START GUIDE MAKE SOMETHING WONDERFUL...
  • Page 2 CONTENTS Before You Start Machine Assembly 3D Printing...
  • Page 3 BEFORE START Quick Start Guide |...
  • Page 4 This language version of the manual is verified by the manufacturer (Original Instruction). No part of this publication, including pictures may be reproduced or made public, whether by printing, photocopying, microfilm or by any other means whatsoever, without the prior written permission of Snapmaker.
  • Page 5 Please read and understand the contents of the manual of this product carefully. Failure to read the manual may lead to personal injury, inferior results or damage to the Snapmaker products. Always make sure that anyone who uses this product knows and understands the contents of this manual to make the most out of it.
  • Page 6 Before You Start - You smell burning in this machine at any point. - The machine stops working unexpectedly. - You see any damage to the interior components of this machine. - Unusual lights, sparks, or sounds come out of this machine which were not occurring previously. 3D Printing Safety - Do not touch the nozzle, Print Sheet and Heated Bed when the machine is printing or heating.
  • Page 7 MacOS, Windows, Linux Rated Power 320 W 3D Printing Build Volume F250: 230 x 250 x 235 mm F350: 320 x 350 x 330 mm Heated Bed Temperature F250: Up to 100°C F350: Up to 80°C Layer Resolution 50 - 300 microns Nozzle Temperature Up to 275°C...
  • Page 8 Before You Start 1.6 Parts List 3D Printing Module Touchscreen Touchscreen Holder Controller Toolhead Cable Y Conversion Z Conversion Cable Cable AC Power Cable Base Plate DC Power Cable USB Cable...
  • Page 9 | F350 QUICK START GUIDE MAKE SOMETHING WONDERFUL Linear Module Quick Start Guide Filament Calibration Card Filament Holder Sheet Tool Box Filament Holder Tube Power Module Converter Heated Bed Platform Print Sheet Z-axis Holder Quick Start Guide |...
  • Page 10 Before You Start Tool Box M4 x 30 Screw x 12 M4 x 10 Hex Socket M4 x 8 Screw x 68 Head Screw x 17 M4 x 10 Hex Flat Head Screw Foot + M4 x 10 Hex Socket Divider x 22 Head Screw...
  • Page 11 Visit our website at https://support.snapmaker.com/hc/en-us -> select Snapmaker 2.0 -> Go to Video Tutorial. 1.8 Used Symbols Ignoring this type of message might result in malfunction or damage of the CAUTION machine and injuries to users.
  • Page 12 Machine Assembly...
  • Page 13 MACHINE ASSEMBLY Quick Start Guide |...
  • Page 14 Machine Assembly  01 Attach the feet to the Base Plate. M4 x 10 Hex Socket Head Screw Foot Base Plate...
  • Page 15  02 All Linear Modules must be assembled in their intended position. Now, identify two Linear Modules with the laser pattern "Lead 20 mm"; they will be the Y Axes. Linear Module × 2 There are three Linear Modules engraved with the laser pattern "Lead 20 mm". The unused one will be defined as X Axis in Step 13.
  • Page 16 Machine Assembly  03 Make sure the sliders are aligning with each other. If not, you can move them to the same position as illustrated. Hold the Linear Modules carefully to prevent them from falling. DONE! Do not press the steel strip.
  • Page 17  04 Attach the Y Axes to the Platform. Do not tighten the screws until Step 6. M4 x 8 Screw Make sure to assemble the Platform in correct orientation. Platform Quick Start Guide |...
  • Page 18 Machine Assembly  05 Attach the Y Axes to the Base Plate. M4 x 8 Screw x 16 Make sure the Y-axis Linear Modules are accurately mounted onto the grooves of the Base Plate.
  • Page 19  06 Tighten the screws on the Y-axis sliders. If the screws on the sliders are not aligning with the screw holes on the Base Plate, move the Platform to the proper position. Quick Start Guide |...
  • Page 20 Machine Assembly  07 Attach the Z-axis Holders to the Base Plate. Z-axis Holder M4 x 8 Screw...
  • Page 21  08 Attach the Touchscreen Holder to the Base Plate. Touchscreen Holder M4 x 8 Screw Quick Start Guide |...
  • Page 22 Machine Assembly  09 Identify the two Linear Modules with the laser pattern "Lead 08 mm". They will be the Z Axes. Linear Module × 2...
  • Page 23  10 Thread the connecting cables through the holes of the holders, and then attach the Z Axes to the Z-axis Holders. Do not tighten the screws until Step 14. M4 x 8 Screw x 12 Quick Start Guide |...
  • Page 24 Machine Assembly  11 Install the screws to the bottom of the Z Axes. Do not tighten the screws until Step 15. M4 x 8 Screw...
  • Page 25  12 From the middle, move the Platform to the position as illustrated. Then move the Z-axis sliders to the farthest end. Quick Start Guide |...
  • Page 26 Machine Assembly  13 The last Linear Module with the laser pattern "Lead 20 mm" will be the X Axis. Attach the X Axis to the Sliders on the Z Axes. Linear Module M4 x 8 Screw...
  • Page 27  14 Tighten the screws that are used to attach the Z Axes to the Z-axis Holders. Quick Start Guide |...
  • Page 28 Machine Assembly  15 Tighten the screws to the bottom of the Z Axes.
  • Page 29  16 Put your hands at each end of the Linear Module, and then move the X Axis to the top. Make sure both ends of the Linear Module are in horizontal alignment with each other throughout the process. Quick Start Guide |...
  • Page 30 Machine Assembly  17 Locate the Y Conversion Cable, and the attached cable on both of the two Y Axes as illustrated. Connect them to the Converter. Y Conversion Cable Converter Y Conversion Cable...
  • Page 31  18 Attach the Y-axis Converter to the Base Plate. M4 x 30 Screw Quick Start Guide |...
  • Page 32 Machine Assembly  19 Locate the Z Conversion Cable, and the attached cable on both of the two Z Axes as illustrated. Connect them to the Converter. Z Conversion Cable Converter Z Conversion Cable...
  • Page 33  20 Attach the Z-axis Converter to the Base Plate. M4 x 30 Screw Use the provided cable tie to organize the cables. Quick Start Guide |...
  • Page 34 Machine Assembly  21 Attach the Controller to the Z Axis. M4 x 30 Screw Controller...
  • Page 35  22 Open the dust plugs, and then connect the X, Y and Z Axes with the Controller. X Axis Y Axis Z Axis Make sure the connectors are in the right direction. Keep the protective dust plugs on the unplugged slots. Dust accumulation may seriously affect the performance of the Controller.
  • Page 36 Machine Assembly  23 Place the Touchscreen, and then connect the Touchscreen with the Controller. Touchscreen...
  • Page 37  24 Connect the cables for the Power Module. Do not connect or disconnect any cables when the machine is powered on. Power Module AC Power Cable DC Power Cable Make sure the power switch is in the Off position. Quick Start Guide |...
  • Page 38 3D Printing...
  • Page 39 3D Printing 3.1 Assembly 3.1.1 Assemble the 3D Printer 3.1.2 Initial Setup 3.2 Get Started 3.2.1 Calibrate the Bed 3.2.2 Load Filament 3.3 Start Printing 3.3.1 Prepare the G-code File 3.3.2 Start Your First Print 3.3.3 Remove the Print Quick Start Guide |...
  • Page 40 3D Printing 3.1.1 Assemble the 3D Printer Guides & Pictures / Snapmaker Attach the 3D Printing Module to the slider on the X Axis. M4 x 8 Screw 3D Printing Module Make sure the power switch is in the Off position.
  • Page 41 Connect the 3D Printing Module with the Controller. Make sure the connector is in the right direction. Toolhead Cable Quick Start Guide |...
  • Page 42 3D Printing Attach the Filament Holder to the Z Axis. M4 x 10 Hex Socket Head Screw Filament Holder Tube Filament Holder Sheet M4 x 10 Hex Socket Head Screw...
  • Page 43 Attach the Heated Bed to the Platform. M4 x 10 Hex Flat Head Screw x 22 Heated Bed Quick Start Guide |...
  • Page 44 3D Printing Place the Print Sheet. Make sure the Heated Bed is contamination-free before you place the Print Sheet. Make sure the Print Sheet aligns perfectly with the Heated Bed. Print Sheet...
  • Page 45 Connect the Heated Bed with the Controller. Heated Bed Quick Start Guide |...
  • Page 46 3D Printing Attach the Cable Holder to the Z Axis, and then lock the Toolhead Cable into place. Cable Holder M4 x 8 Screw Make sure there is enough cable length for the toolhead to move.
  • Page 47 3.1.2 Initial Setup Guides & Pictures / Snapmaker Plug the AC Power Cable into an electrical outlet. Switch the power on and follow the prompts on the touchscreen: Read the Terms -> Name the Machine -> Connect to a Wi-Fi Network.
  • Page 48 3D Printing 3.2.1 Calibrate the Bed Guides & Pictures / Snapmaker How It Works: Auto Leveling The 3D Printing Module conducts a leveling procedure, with the sensor measuring the distance between the nozzle and the Heated Bed at specific points. The movements of the extruder are adjusted to ensure that the nozzle and the Heated Bed are at an optimum distance throughout the printing process.
  • Page 49 How to Level 1. Run the Auto Leveling procedure on the touchscreen. 2. Place the Calibration Card or a piece of A4 paper between the nozzle and the Heated Bed, and manually calibrate the Z Offset for the last point. 3.
  • Page 50 3D Printing 3.2.2 Load Filament Guides & Pictures / Snapmaker How It Works: Filament Loading The motor drives the filament into the extruder, where the filament extrudes through the nozzle after being heated by the heated block. How to Load Filament 1.
  • Page 51 2. Tap Start on the Load Filament screen. After the temperature reaches the target temperature, tap Load and then gently push the filament into the 3D printing module until you can feel the motor pulling the filament in. You can change the target Nozzle Temp by sliding the scale bar. 3.
  • Page 52 3D Printing Congratulations! You are now ready to print. Please continue to generate the G-code file. When you need to change the filament, select Controls and Nozzle. After the temperature reaches the target temperature, tap Unload and pull the filament out of the module.
  • Page 53 Download our software the Snapmaker Luban at https://www.snapmaker.com/download and install. Then connect Snapmaker Luban to your machine through the same Wi-Fi network: Enter Workspace -> Connection -> Select Wi-Fi -> Click Refresh -> Select your machine -> Click Connect -> Tap Yes on the Touchscreen.
  • Page 54 3D Printing 3.3.2 Start Your First Print Guides & Pictures / Snapmaker After receiving the G-code file, tap Disconnect on the Touchscreen. Then find and select the received G-code file, and tap Start to start printing. The first layer of the print is key to print success.
  • Page 55 3.3.3 Remove the Print Guides & Pictures / Snapmaker Wait for the temperatures of the nozzle and the Heated Bed to drop to room temperature (displayed on the Touchscreen) . Remove the Print Sheet from the Heated Bed and bend it slightly.
  • Page 56 3D Printing Remove the Print Sheet from the Heated Bed, and place it down on a stable and flat surface. You can also use the palette knife to remove the print. The palette knife is sharp. Share! Share your prints in our Facebook group and our forum.
  • Page 57 Settings > Firmware Update > Check for Updates > Update Now > Complete. : Download our firmware from https://snapmaker.com/product/snapmaker-2/downloads > Insert the USB flash drive into the Controller > Turn on the machine > Swipe left on the Touchscreen > Tap Files > Tap USB >...
  • Page 58 This guide is subject to change. The latest version is on our Support website: Select Snapmaker 2.0 -> Go to Quick Start Guide. https://support.snapmaker.com/hc/en-us Besides this guide, a User Manual is available on our Support website: Select Snapmaker 2.0 -> Go to User Manual. https://support.snapmaker.com/hc/en-us We are here for you whenever you need general information or technical support: support@snapmaker.com.
