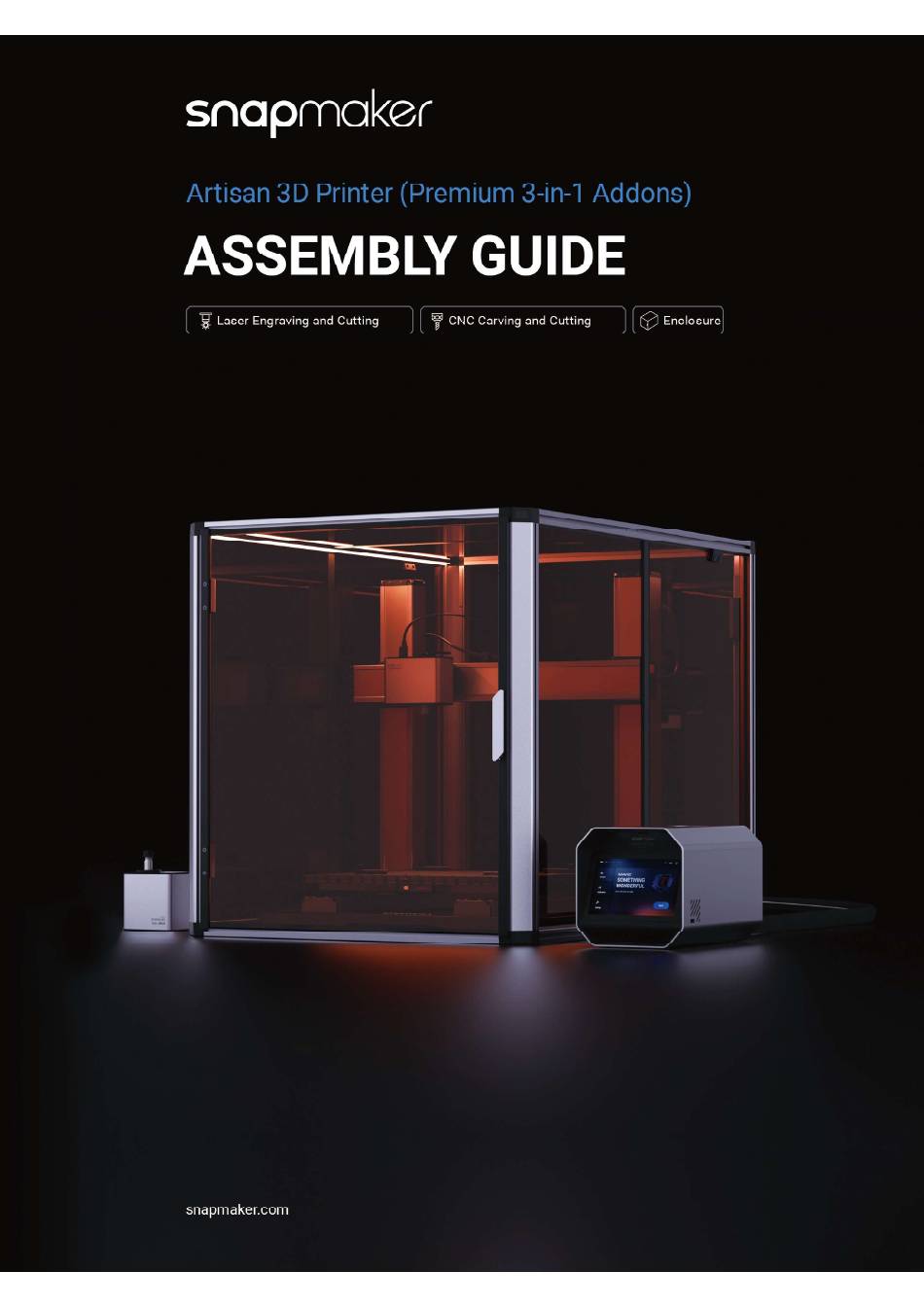

Snapmaker Artisan Assembly Manual

Hide thumbs Also See for Artisan:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artisan and is the answer not in the manual?

Questions and answers

Related Manuals for Snapmaker Artisan

Summary of Contents for Snapmaker Artisan

  • Page 2: Table Of Contents

    Before You Start ............................01 1.1 Disclaimer..................................02 1.2 Intended Use ................................... 02 1.3 Safety Information ................................03 1.4 Safety Labels on Your Snapmaker ..........................06 1.5 Specifications .................................. 07 1.6 Parts List ..................................08 1.7 Assembly Instructions ..............................10 1.8 Used Symbols .................................. 12 1.9 About This Guide ................................

  • Page 3: Before You Start

    Before You Start...

  • Page 4: Disclaimer

    No part of this guide may be reproduced, edited, or revised by any means without the prior written permission of Snapmaker. We reserve the right to modify or revise this guide in our sole discretion at any time without notice.

  • Page 5: Safety Information

    02-03 Before You Start 1.3 Safety Information 1.3.1 General Safety Information - Follow the applicable local laws and regulations in the operation and application of this product. - Follow the instructions of the guide to use and maintain this product for safety purposes. - Do not expose this machine to rain or wet conditions.
  • Page 6 The heating which occurs during laser cutting or engraving can cause charring, pyrolysis, or even combustion of the material being worked on and generate gases or fumes. - Airway Irritation Gases and fumes may irritate the airways and potentially be extremely dangerous. If airway irritation occurs, https://snapmaker.com/...
  • Page 7 04-05 Before You Start take the following steps as an emergency response: 1. Expose the casualty to fresh air. 2. Call for medical help. 3. If the person is unresponsive, not breathing, or not breathing normally, perform CPR until the person begins breathing or emergency help arrives.

  • Page 8: Safety Labels On Your Snapmaker

    1.4 Safety Labels on Your Snapmaker Label Warning Location Take care to avoid injury from sharp objects (e.g., On the 200W CNC CNC bits). Module Laser radiation is emitted from this aperture. Do not touch the aperture, On the Laser...

  • Page 9: Specifications

    Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded) CNC Carving & Cutting Snapmaker Luban Supported OS Windows, macOS, Linux Work Area X × Y 400 mm × 400 mm Supported File 3D Printing: .stl, .obj...

  • Page 10: Parts List

    Long Beam (with tube holder) × 2 Middle Column × 2 Middle Beam × 1 Side Panel × 2 Door Panel × 1 Side Panel (with tube holder cutout) × 2 Back Panel Top Panel × 1 × 2 https://snapmaker.com/...
  • Page 11 08-09 Before You Start Sealing Plug Column-1 (with hinge) × 1 × 8 Column-2 (with hall switch) CNC Carving and Laser Engraving and Filament Tube Clip × 1 Cutting Platform Cutting Platform × 2 × 1 × 1 Column-3 (with Enclosure converter) ×...

  • Page 12: Assembly Instructions

    To start your first job, please visit our Wiki website (https://wiki.snapmaker.com/en/snapmaker_artisan/ manual): Snapmaker Artisan > Manual > Getting Started > Start Your First Job. 1.7.2 Tips & Notes At least two people are required to assemble and lift the machine and the Enclosure.
  • Page 13 -011 Before You Start Do NOT place any object near the left or the right side of the base plate to avoid interfering with the movement of the Linear Modules and the work platforms. Do NOT plug or unplug any cables when the machine is powered Do NOT press the steel strip.

  • Page 14: Used Symbols

    Carver and Cutter, and familiarize you with the Enclosure settings with concise instructions and graphics. Our online User Manual is considered as a more comprehensive guide. To bring your first job into the world, go to Snapmaker Wiki (https://wiki.snapmaker.com). https://snapmaker.com/...

  • Page 15: Enclosure Assembly And Settings

    Enclosure Settings Enclosure Assembly and Settings...
  • Page 16 https://snapmaker.com/...
  • Page 17 14-15 Enclosure Settings Attach the two base fixtures (upper) to the two long beams. M4 × 20 Screw × 2 Base Fixture (upper) × 2 Long Beam × 2 Ensure that the side of the beam with the screw cutout faces outwards.
  • Page 18 Attach the profile connectors to both ends of the long beams. M5 × 12 Screw × 4 Profile Connector × 4 Make sure Make sure the all four alignment tabs profile of the profile connectors connectors are are inside inside the beam grooves. https://snapmaker.com/ https://snapmaker.com/...
  • Page 19 16-17 Enclosure Settings Attach the short beam (with screw holes) to the profile connectors. M5 × 12 Screw × 2 Short Beam (with screw holes) × 1 Make sure Make sure the the two alignment tabs screw holes of the profile of the short connectors beam (rear)
  • Page 20 Attach the short beam to the profile connectors. M5 × 12 Screw × 2 Short Beam × 1 Make sure the alignment tabs of the profile connectors are inside the beam grooves. https://snapmaker.com/ https://snapmaker.com/...
  • Page 21 18-19 Enclosure Settings...
  • Page 22 Attach the column-1 (with hinge) to the bottom frame. M5 × 30 Screw × 2 You can also erect the bottom frame and install the columns as illustrated. Column-1 (with hinge × 1 Make sure the alignment tabs of the profile connectors are inside the column grooves. https://snapmaker.com/...
  • Page 23 20-21 Enclosure Settings Attach the column-2 (with hall switch) to the bottom frame. M5 × 30 Screw × 2 Column-2 (with hall switch) × 1 Make sure the alignment tabs of the profile connectors are inside the column grooves.
  • Page 24 Attach the column-3 (with Enclosure converter) to the bottom frame. M5 × 30 Screw × 2 Column-3 (with Enclosure converter) × 1 Make sure the alignment tabs of the profile connectors are inside the column grooves. https://snapmaker.com/...
  • Page 25 22-23 Enclosure Settings Attach the column-4 to the bottom frame. M5 × 30 Screw × 2 Column-4 × 1 Make sure the alignment tabs of the profile connectors are inside the column grooves.
  • Page 26 Make sure the screw holes of the short beam (with screw holes) are oriented vertically. Make sure that the alignment tabs of the profile connectors are inside the grooves of the beams and columns. https://snapmaker.com/...
  • Page 27 24-25 Enclosure Settings...
  • Page 28 M5 × 12 Screw × 2 Long Beam (with tube holder) × 2 Profile Connector × 2 Make sure Make sure the the two alignment tabs profile of the profile connectors connectors are are inside inside the beam grooves. https://snapmaker.com/...
  • Page 29 26-27 Enclosure Settings Attach the short beam (with screw holes) to the profile connectors. M5 × 12 Screw × 2 M5 × 12 Screw × 2 Short Beam (with screw holes) × 1 Make sure the Make sure the closer pair of alignment tabs screws on the of the profile...
  • Page 30 Middle Beam × 1 Middle Beam × 1 Top Panel × 2 Make sure the cut corner Make sure the of the top shorter side of the panel faces middle beam is the profile facing up. connector. https://snapmaker.com/...
  • Page 31 28-29 Enclosure Settings Rotate the top panel kit horizontally for 180° Then attach the short beam (with profile connectors) to the two long beams. M5 × 12 Screw × 2 Short Beam (with profile connectors) × 1 Make sure Make sure the the two alignment tabs profile...
  • Page 32 Connect the two LED strips. Make sure the connectors are in the correct direction. https://snapmaker.com/...
  • Page 33 30-31 Enclosure Settings Flip the top frame.
  • Page 34 Sealing Strip (narrow) × 2 Measured in mm Intersecting Surface Make sure to install the sealing strip Outside Profile correctly. Panel The sealing strips can help steady the panel in the frame. https://snapmaker.com/...
  • Page 35 32-33 Enclosure Settings Cut six wide sealing strips and press them into the outer gaps between the two top panels and their adjacent profiles, respectively. Sealing Strip (wide) × 6 Measured in mm Intersecting Surface Make sure to install the sealing strip Profile Panel...
  • Page 36 https://snapmaker.com/...
  • Page 37 34-35 Enclosure Settings Insert the four side panels into the frame. Side Panel (with tube holder cutout) × 2 Side Panel × 2 Make sure the left, right and bottom edges of the side panels are inserted into the grooves of the corresponding profiles.
  • Page 38 Insert the two middle columns between the side panels. Middle Column × 2 Make sure the longer side of the middle column facing outwards. https://snapmaker.com/...
  • Page 39 36-37 Enclosure Settings Attach the top panel kit to the frame. M5 × 30 Screw × 8 Make sure to insert the top edges of the side panels into the grooves of the corresponding beams. It is recommended to pre-tighten all the screws first and then fully tighten them.
  • Page 40 Connect the LED strips and the hall switch to the Enclosure converter. Column-2 2 Pin 4 Pin Column-3 https://snapmaker.com/...
  • Page 41 38-39 Enclosure Settings Cut four narrow sealing strips and press them into the outer gaps between the side panels and the middle column. Sealing Strip (narrow) × 4 Measured in mm Intersecting Surface Make sure to install the sealing strip Outside Profile correctly.
  • Page 42 Sealing Strip (wide) × 14 Meaured in mm Intersecting Surface Make sure to install the sealing strip Profile Panel correctly. Outside The sealing strips can help steady the panel in the frame. https://snapmaker.com/...
  • Page 43 40-41 Enclosure Settings...
  • Page 44 Attach the Enclosure door to the frame. M4 × 12 Flat Head Screw × 4 It is recommended to pre-tighten the uppermost and lowermost screws first, then pre-tighten the remaining screws, and finally tighten all the screws in the pre-tightening order. https://snapmaker.com/...
  • Page 45 42-43 Enclosure Settings...
  • Page 46 Insert the two base fixtures (lower) underneath the left and the right sides of the base plate. Base Fixture (lower) × 2 https://snapmaker.com/...
  • Page 47 44-45 Enclosure Settings Cover the machine with the Enclosure from above. Although there are no middle beam and middle column in some of illustrations, the instructions are the same. Make sure the Enclosure does not collide with the machine while moving. It is recommended that at least two people operate together.
  • Page 48 Plug the Enclosure cable into the Enclosure converter. Enclosure Cable × 1 Ensure that the connector is in the correct direction. https://snapmaker.com/...
  • Page 49 46-47 Enclosure Settings Gather the cables with the cable collector. Cable Collector × 1...
  • Page 50 The rightmost cable hole is reserved for the extension cable of the Rotary Module (for 4-axis machining), which is available for purchase on our online store. https://snapmaker.com/...
  • Page 51 48-49 Enclosure Settings...
  • Page 52 Attach the exhaust fan guard, the boosted exhaust fan and the hose connector to the back panel. M4 × 40 Screw × 4 Back Panel × 1 Exhaust Fan Guard × 1 Boosted Exhaust Fan × 1 M4 Wing Nut × 4 https://snapmaker.com/...
  • Page 53 50-51 Enclosure Settings Connect the exhaust fan to the Enclosure converter. Then, cut a suitable length of the cord collecting strip to bury the exhaust fan cord into the column groove. Cord Collecting Strip × 1...
  • Page 54 It is recommended to pre-tighten the screws near the corners first, then pre-tighten the remaining screws, and finally tighten all the screws in the pre-tightening order. You can install the two uppermost screws first, hang the back panel on them, and then install the other screws. https://snapmaker.com/...
  • Page 55 52-53 Enclosure Settings Put the hose into the hose clamp and secure the hose to the hose connector as illustrated. Hose Clamp × 1 Hose × 1...
  • Page 56 https://snapmaker.com/...
  • Page 57 54-55 Enclosure Settings Plug the toolhead cable, the Enclosure cable, the heated bed cable, and the Linear Module cables into the Integrated Controller. Integrated Controller × 1 Ensure that the connector is in the correct direction. Place the Integrated Controller within easy reach so that you can press the emergency stop button on top of the controller to respond quickly to an emergency.
  • Page 58 Insert the sealing plugs into the four bottom profile connectors. Sealing Plug × 4 https://snapmaker.com/...
  • Page 59 56-57 Enclosure Settings Connect the upper and lower base fixtures to lock the relative position of the machine and the Enclosure. M5 × 12 Screw × 2 To move the Enclosure or the machine, you must first separate the machine and the Enclosure.

  • Page 60: Enable/Disable Door Detection

    The column-2 of the Enclosure features a hall switch to detect whether the door is opened or closed in real time. You can tap Settings > Enclosure to enable or disable Door Detection during a 3D printing or CNC process. During a laser process, Door Detection is enabled by default and cannot be disabled. https://snapmaker.com/...
  • Page 61 58-59 Enclosure Settings After Door Detection is enabled, the machine will stop operating or end the calibration process immediately whenever the hall switch has detected that the door is opened. To resume operations, you need to close the door first, and then tap on the Touchscreen to continue the job or restart the calibration process.

  • Page 62: Turn On/Off Led Strips And The Exhaust Fan

    In this case, you can turn on the exhaust fan after printing. To protect your health and prevent environmental pollution, we recommend using Snapmaker Air Purifier or other air purifying devices during such a 3D printing process.

  • Page 63: Laser Engraver And Cutter Assembly

    Laser Engraving and Cutting Laser Engraver and Cutter Assembly...
  • Page 64 Loosen the cam handle of the support platform by turning it to the left, and install the laser engraving and cutting platform onto the support platform. Laser Engraving and Cutting Platform × 1 Ensure that the platform is correctly clamped. https://snapmaker.com/...
  • Page 65 62-63 Laser Engraving and Cutting Tighten the cam handle of the support platform by turning it to the right.
  • Page 66 Attach the toolhead quick-swap plate to the 40W Laser Module using the H2.5 hex key and the M4 × 12 screws. Toolhead Quick-swap Plate × 1 M4 × 12 Low Head Cap Screw × 2 Skip this step if the toolhead quick-swap plate has been pre-assembled. https://snapmaker.com/...
  • Page 67 64-65 Laser Engraving and Cutting Loosen the cam handle of the toolhead bracket by turning it to the left, and then slide the Laser Module into the bracket. This guide takes 10W Laser Module as an illustration, all steps demonstrated apply to 40W Laser Module.
  • Page 68 Tighten the cam handle of the toolhead bracket by turning it to the right. Make sure to fully tighten the cam handle. https://snapmaker.com/...
  • Page 69 66-67 Laser Engraving and Cutting Plug the toolhead cable into the Laser Module. Ensure that the connector is in the correct direction.
  • Page 70 Plug the AC power cable into the Integrated Controller and the electric outlet. Do NOT plug Before plugging, or unplug any ensure that the cables when power switch is the machine is OFF. powered on. AC Power Cable × 1 https://snapmaker.com/...
  • Page 71 68-69 Laser Engraving and Cutting Attach the M5 air tube connector to the toolhead. M5 Air Tube Connector × 1...
  • Page 72 Insert the air tube into the tube connector. Air Tube × 1 To pull out the air tube, firmly press the round clamp of the air tube connector while pulling. https://snapmaker.com/...
  • Page 73 70-71 Laser Engraving and Cutting Cut the cable ties into four, and use them to collect and fix the toolhead cable and the air tube.
  • Page 74 Thread the air tube through the leftmost hole of the cable pass-through fixture to the outside of the Enclosure. https://snapmaker.com/...
  • Page 75 72-73 Laser Engraving and Cutting Use the cable collector to organize the air tube together with other cables. Cable Collector × 1...
  • Page 76 Attach the M8 air tube connector to the air assist pump. Air Assist Pump × 1 M8 Air Tube Connector × 1 https://snapmaker.com/...
  • Page 77 74-75 Laser Engraving and Cutting Insert the other end of the air tube into the M8 air tube connector. Air Tube × 1 To pull out the air tube, firmly press the round clamp of the air tube connector while pulling.
  • Page 78 Insert the power cable of the air assist pump into the Heated Bed port of the Integrated Controller. Congrats! You have completed the assembly. Tear off the base plate sticker To bring your first job into the world, refer to our User Manual in Snapmaker Wiki (https://wiki.snapmaker.com). https://snapmaker.com/...

  • Page 79: Cnc Carver And Cutter Assembly

    76-77 Laser Engraving and Cutting CNC Carver and Cutter Assembly...
  • Page 80 CNC carving and cutting platform onto the support platform. CNC Carving and Cutting Platform × 1 Ensure that the platform is correctly clamped. Ensure that the whole CNC carving and cutting platform is installed horizontally without being tilted in any direction. https://snapmaker.com/...
  • Page 81 78-79 CNC Carving and Cutting Tighten the cam handle of the support platform by turning it to the right.
  • Page 82 Loosen the cam handle of the toolhead bracket by turning it to the left, and slide the 200W CNC Module into the bracket. 200W CNC Module × 1 Make sure to fully slide the toolhead into the bracket. https://snapmaker.com/...
  • Page 83 80-81 CNC Carving and Cutting Tighten the cam handle of the toolhead bracket by turning it to the right. Make sure to fully tighten the cam handle.
  • Page 84 Plug the toolhead cable into the 200W CNC Module. Ensure that the connector is in the correct direction. https://snapmaker.com/...
  • Page 85 OFF. powered on AC Power Cable × 1 Congrats! You have completed the assembly. Tear off the base plate sticker To bring your first job into the world, refer to our User Manual in Snapmaker Wiki (https://wiki.snapmaker.com).

  • Page 86: Resources

    Resources You can learn more about the usage, maintenance, and troubleshooting of your printer in Snapmaker Wiki: https://wiki.snapmaker.com We are here for you whenever you need support: https://support.snapmaker.com For any sales inquiries: sales@snapmaker.com For product purchases: https://shop.snapmaker.com Share anything you want with other Snapmaker users in our forum:...
