Connectors
Table 3-12. CAN Interface Connectors (P12, P13) (Cont'd)
Pin
3
4

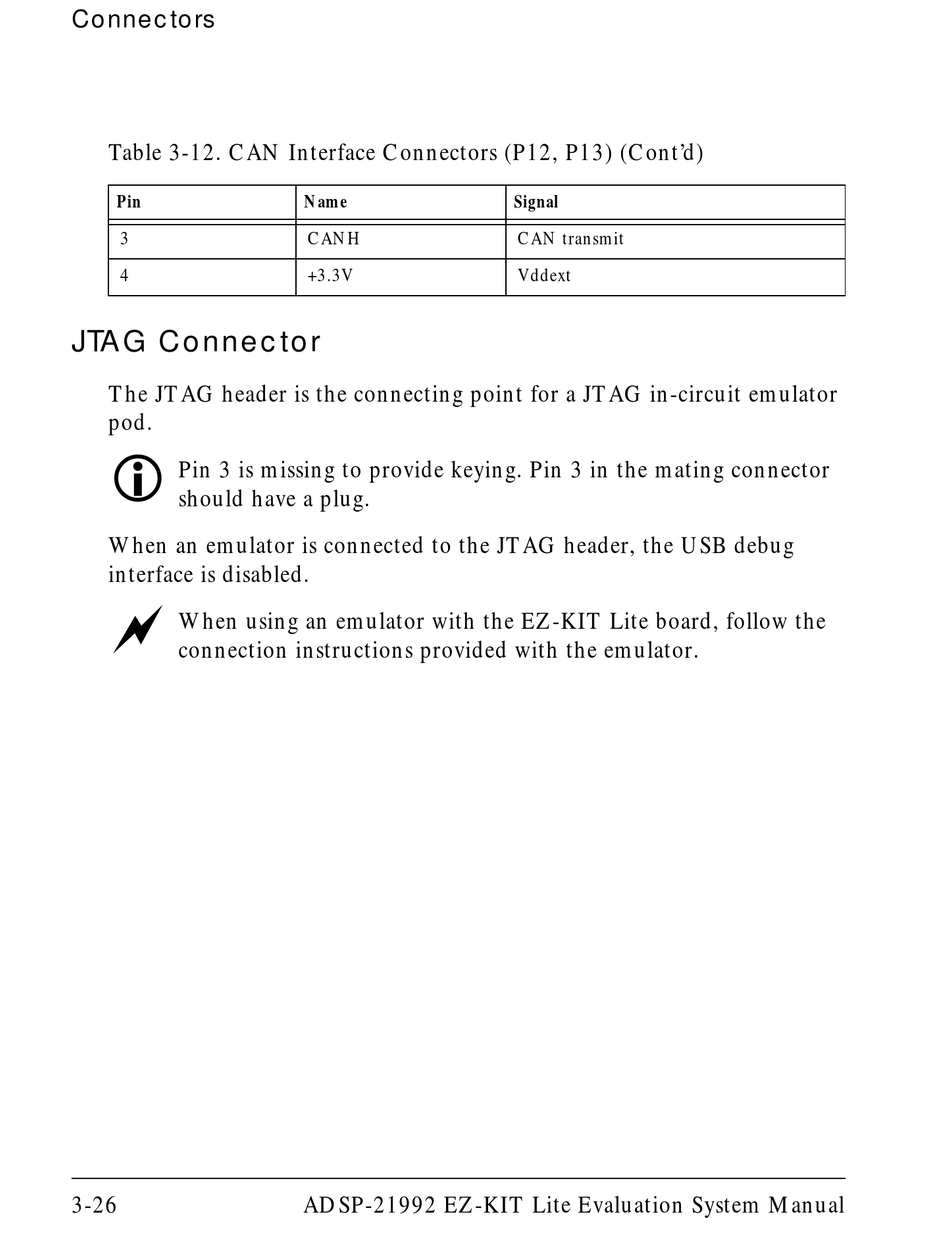

JTAG Connector

The JTAG header is the connecting point for a JTAG in-circuit emulator
pod.
!
Pin 3 is missing to provide keying. Pin 3 in the mating connector
should have a plug.
When an emulator is connected to the JTAG header, the USB debug
interface is disabled.
$
When using an emulator with the EZ-KIT Lite board, follow the
connection instructions provided with the emulator.
3-26
Name
CANH
+3.3V
ADSP-21992 EZ-KIT Lite Evaluation System Manual
Signal
CAN transmit
Vddext
