Installation

This section describes the installation of the SF 28PT speaker and includes the following
topic:
AVERTISSEMENT : Risque de dommages corporels ou matériels. L'installation finale
NOTE: This speaker is intended for flexible wiring connection only.

Installing the SF 28PT Speaker

The SF 28PT speaker is ideal for open ceilings. It is suspended using the
PendantConnect-2 cable that is composed of 2 steel support cables and 2 speaker wires.

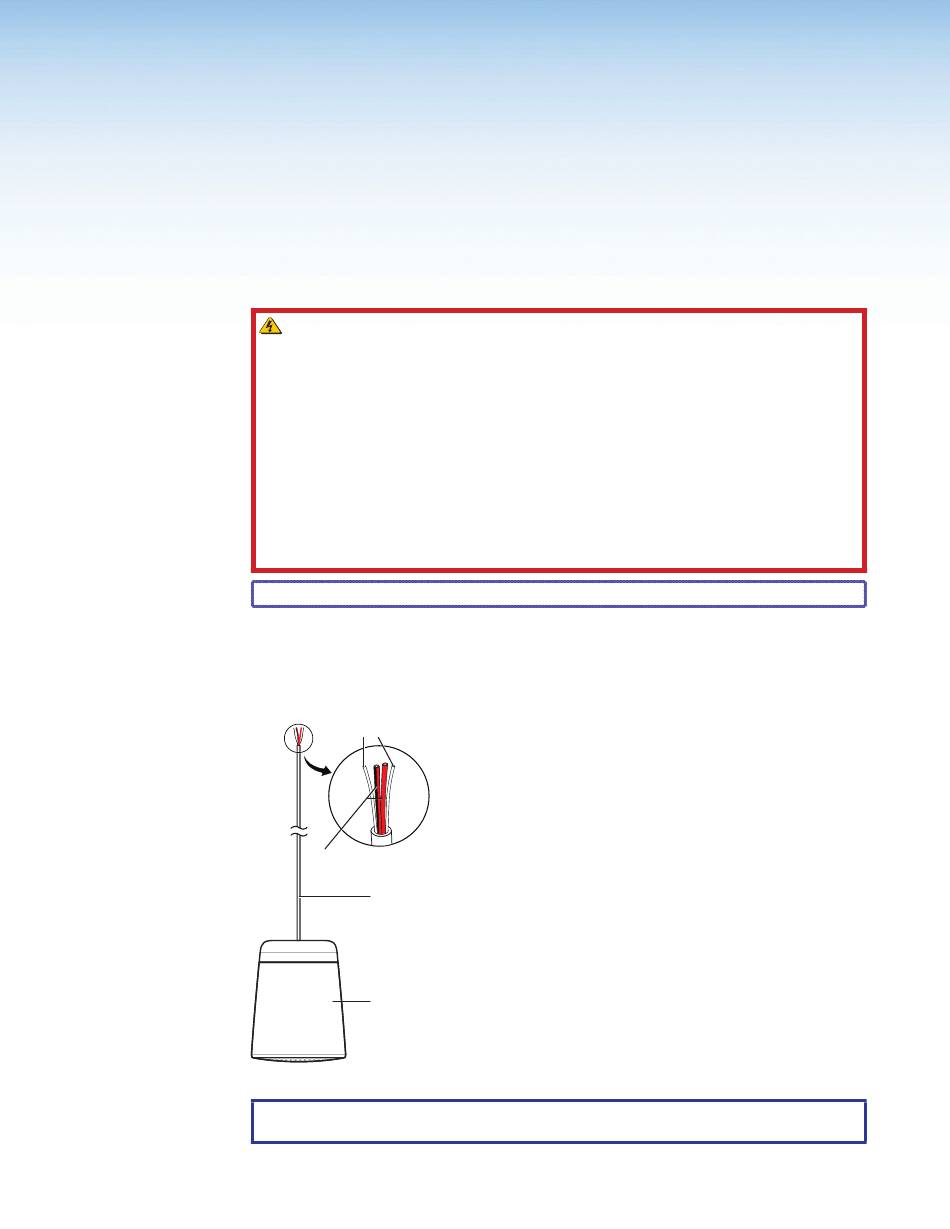

Figure 2.
NOTE: If you need to paint the speaker grille or enclosure, please refer to
WARNING: Risk of personal injury or property damage. The final
installation should be able to continuously support the speaker weight. The final
installation should also be able to support any short term overloading. Since
applications can vary considerably, it is assumed that the installer will exercise good
judgment when selecting the mounting location, method, and hardware. Installation
and service must be performed by authorized personnel only.
doit pouvoir supporter en permanence le poids de l'enceinte. L'installation finale
doit également supporter toute surcharge temporaire. Étant donné la possibilité
d'évolution considérable des applications, il est supposé que l'installateur fera preuve
de discernement lors de la sélection de l'emplacement, du mode, et du matériel de
montage. L'installation et la maintenance du système doivent être exclusivement
effectuées par le personnel autorisé.
Steel Cables (2)
Speaker Wires (2) —
• Red with Black Stripe
• Red
PendantConnect-2
Cable
Speaker
SF 28PT Speaker Assembly
Speaker Grille on page 22 and Painting the Speaker Enclosure
SF 28PT User Guide • Installation
Painting the
on page 23.
