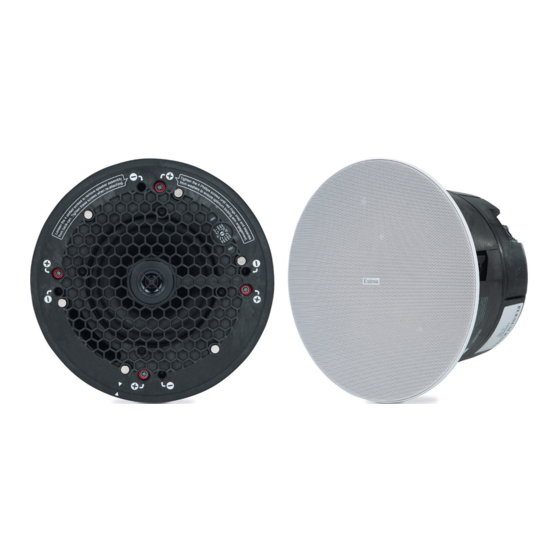

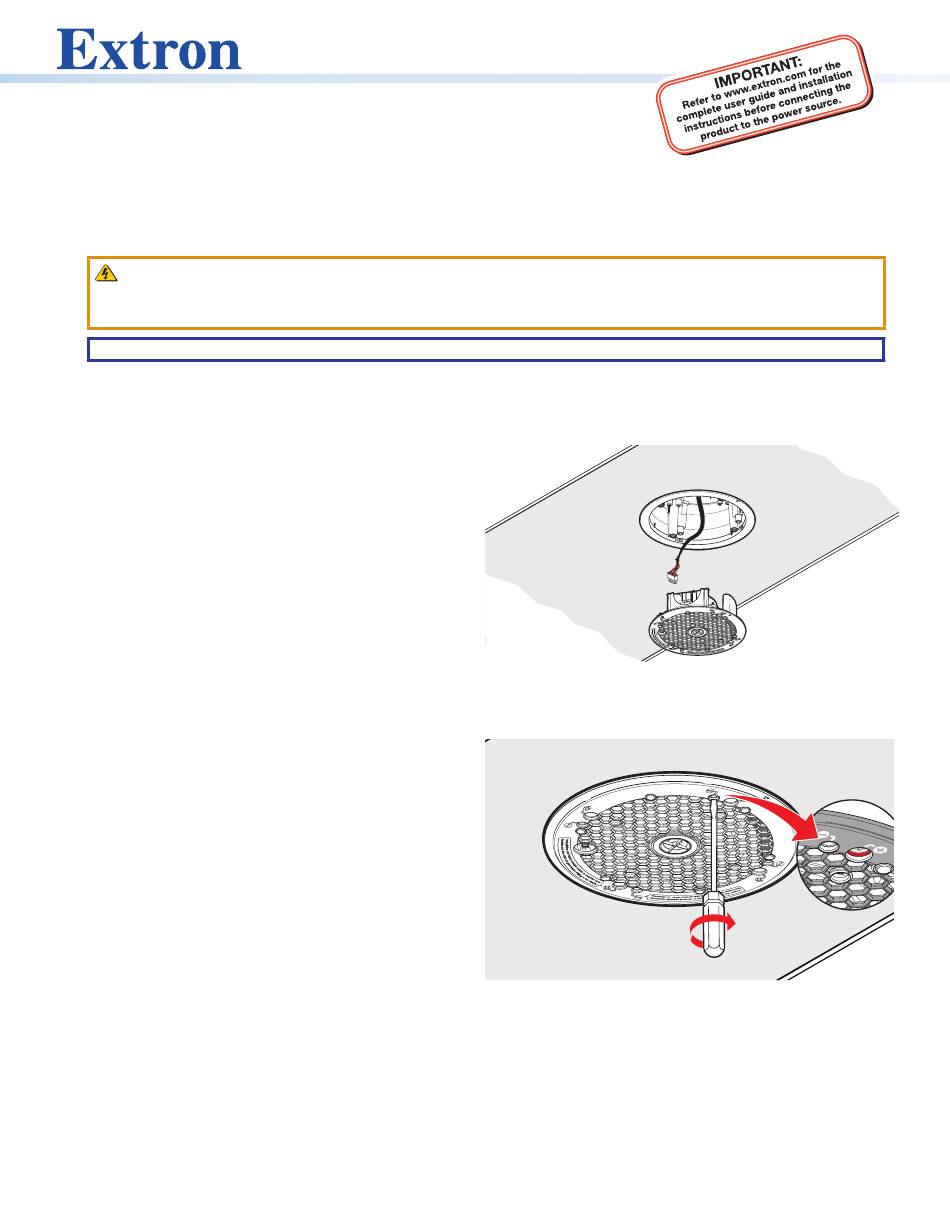

DAK SF 26CT • Setup Guide
This setup guide contains installation information about the DAK SF 26CT speaker driver. When installed and assembled together
with the BCK SF 26CT, they become a fully functional SF 26CT SoundField® XD 2-way speaker.
The complete assembly can be installed by a single-trade installation procedure or by a multi-trade installation procedure (see the
SF 26CT User Guide, available at www.extron.com, for details). The entire assembly is plenum rated.
WARNING: Potential risk of severe injury. Installation and service must be performed by authorized personnel only.
AVERTISSEMENT:
uniquement par un technicien qualifié.
NOTE: Installation of conduit and conduit adapters must conform to all applicable building codes and local ordinances.

Installing the DAK SF 26CT into the BCK SF26CT

Attach the speaker assembly to the back can
1.
enclosure as follows:
Connect the speaker wires from the back can
a.
enclosure to the speaker assembly (see figure 1).
Rotate the speaker assembly so that the white
b.
arrows on the back can enclosure and the speaker
assembly are aligned with each other, and insert the
speaker assembly into the back can. Make sure that
the speaker wires do not get in the way or become
pinched.
Using a flat head screwdriver, tighten the four
c.
screws that attach the speaker assembly to the
back can (see figure 2).
Risque potentiel de blessure grave ou de mort. L'installation et l'entretien doivent être effectués
Continued on reverse side
Connect the Speaker Wires
Figure 1.
Tighten the Attachment Screws
Figure 2.
1
