2.
Determine the strip point (D) along the cable.
a.
Subtract 2.14 inches from (T).
NOTE: Dimension D is the strip point.
A
Floor

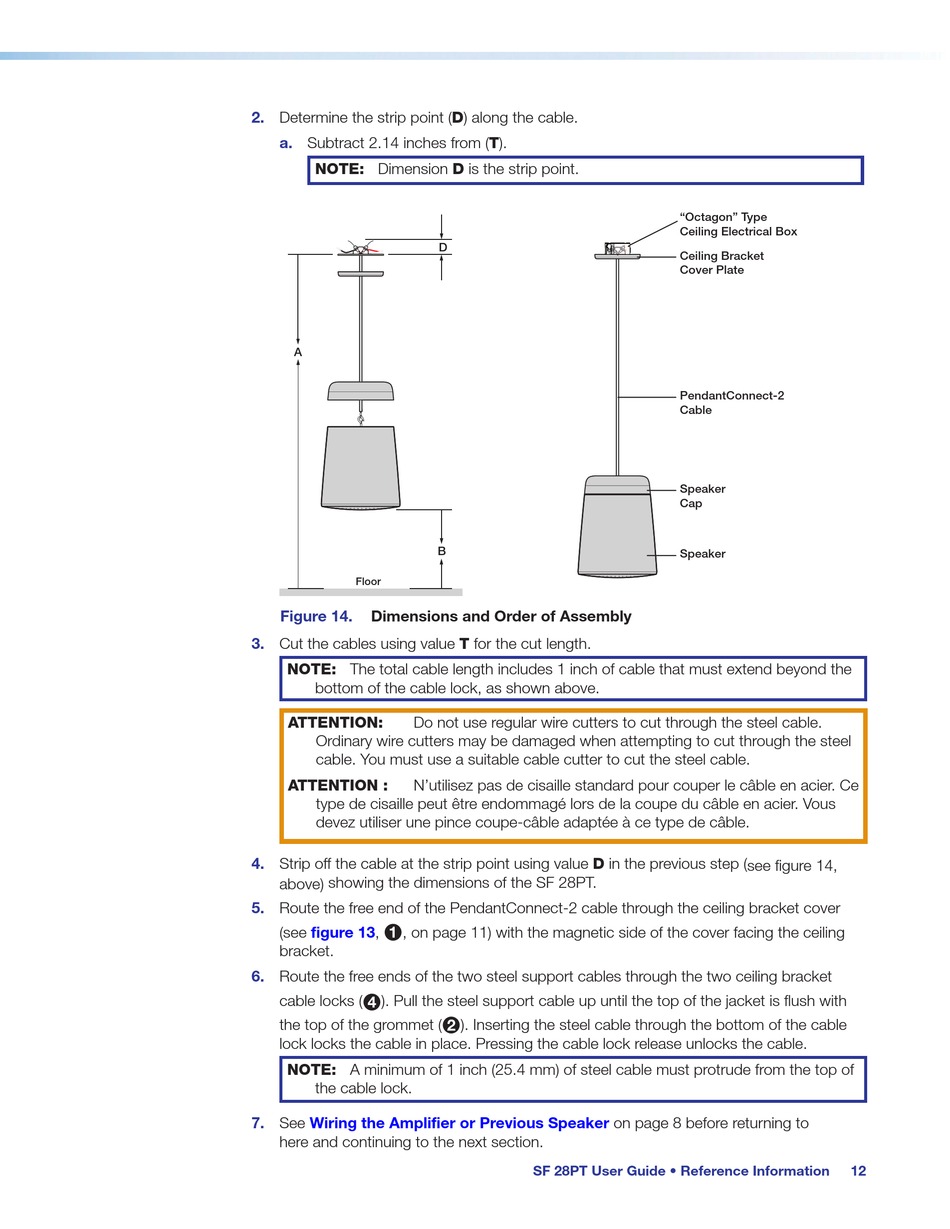

Figure 14.
Dimensions and Order of Assembly
3.
Cut the cables using value T for the cut length.
NOTE: The total cable length includes 1 inch of cable that must extend beyond the
bottom of the cable lock, as shown above.
Do not use regular wire cutters to cut through the steel cable.
ATTENTION:
Ordinary wire cutters may be damaged when attempting to cut through the steel
cable. You must use a suitable cable cutter to cut the steel cable.
N'utilisez pas de cisaille standard pour couper le câble en acier. Ce
ATTENTION :
type de cisaille peut être endommagé lors de la coupe du câble en acier. Vous
devez utiliser une pince coupe-câble adaptée à ce type de câble.
4.
Strip off the cable at the strip point using value D in the previous step ( see figure 14,
above) showing the dimensions of the SF 28PT.
5.
Route the free end of the PendantConnect-2 cable through the ceiling bracket cover
(see figure 13,
, on page 11) with the magnetic side of the cover facing the ceiling
1
bracket.
6.
Route the free ends of the two steel support cables through the two ceiling bracket
cable locks (
). Pull the steel support cable up until the top of the jacket is flush with
4
the top of the grommet (
lock locks the cable in place. Pressing the cable lock release unlocks the cable.
NOTE: A minimum of 1 inch (25.4 mm) of steel cable must protrude from the top of
the cable lock.
7.
See
Wiring the Amplifier or Previous Speaker
here and continuing to the next section.
D
B
). Inserting the steel cable through the bottom of the cable
2
on page 8 before returning to
SF 28PT User Guide • Reference Information
"Octagon" Type
Ceiling Electrical Box
Ceiling Bracket
Cover Plate
PendantConnect-2
Cable
Speaker
Cap
Speaker
12
