SB 33 A Series • Setup Guide (Continued)

Installation Overview

The installation of the SB 33 A speaker uses the included wallplate to mark the wall where the SB 33 A is being mounted. After
the wallplate is attached to the wall the SB 33 A is then attached to the wallplate. The following section describes the mounting
procedure for safely and securely mounting the speaker.
NOTE: Install the wallplate onto wall material using common installation methods with applicable hardware dictated per
local building code.

Preparing the Mounting Location

Display
Left Speaker Module Center
Bracket

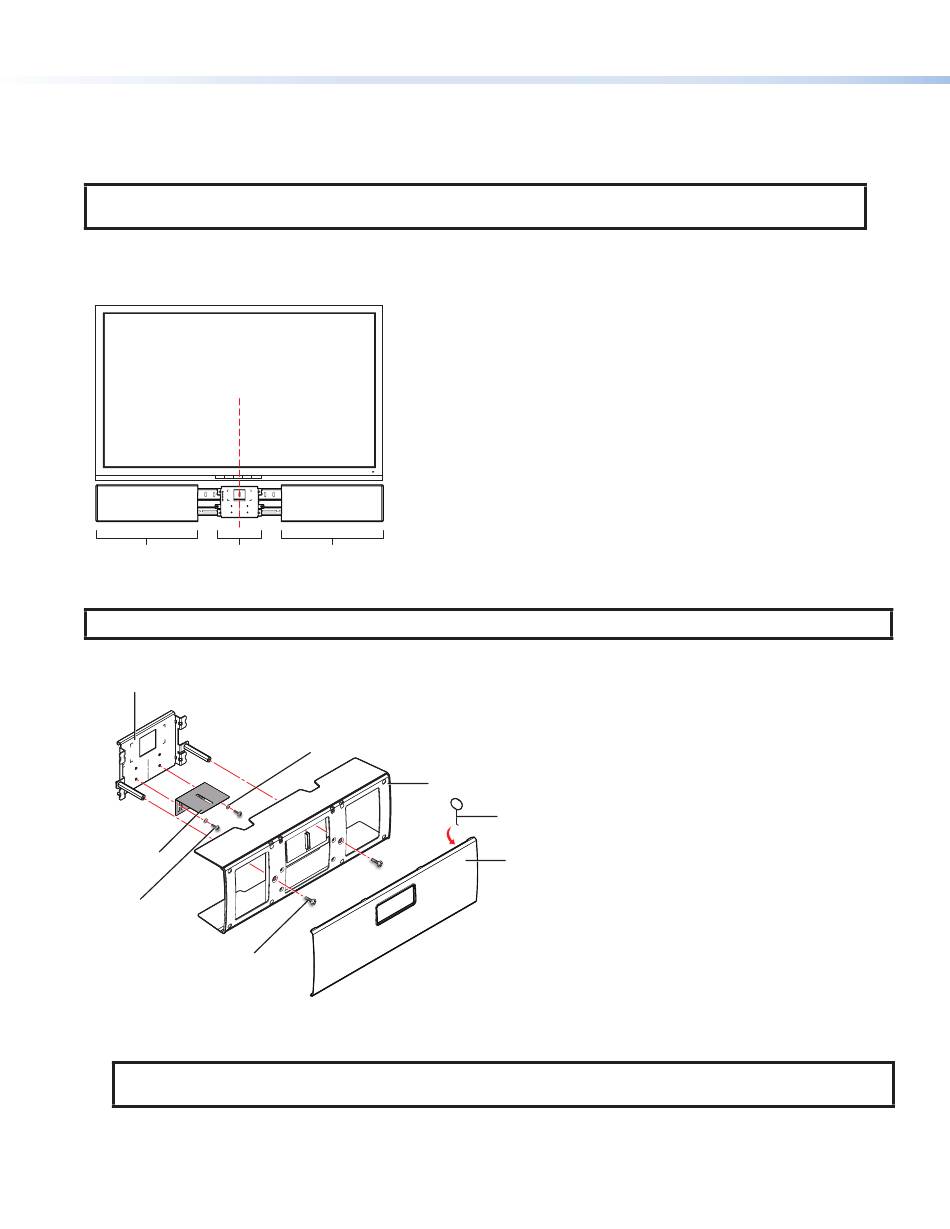

Figure 2. Display Screen and SB 33 A Alignment
NOTE: Observe all applicable building codes and local ordinances when installing the SB 33 A speaker.
Before starting the installation, remove the center section assembly from the packaging and do the following:
Center Bracket
Web Camera
Mount
Screws (2)
Screws (2)
Figure 3. Disassembling the Center Section Assembly
Remove the front grille from the center section cover using a grille hooks.
1.
NOTE: Two grille hooks are included to facilitate grill removal while avoiding damage to the grille. It is best to insert the
hook along the outer edge of the grille.
Remove the center section cover from the center bracket standoffs by removing the two screws.
2.
Remove the web camera mount from the center bracket (if necessary) by removing the two screws and lock washers that
3.
attach it to the center bracket.
2
Right Speaker Module
Lock Washers (2)
Center Section Cover
Grille Hook
Grille
