Completing the Ceiling Bracket Installation

1.
To set the tap selection, see
2. Attach the ceiling bracket to the junction box using two screws, with the 3-pole splicing
connectors and excess steel cable inserted into the junction box.
Figure 15.
3. Attach the ceiling bracket cover onto the ceiling bracket, as shown above. Two small
magnets secure the cover plate in place.
4.
Wire the speaker (see
Setting the Tap Selection Switch
Junction Box
Ceiling Bracket
Screw
Ceiling Bracket
Cover Plate

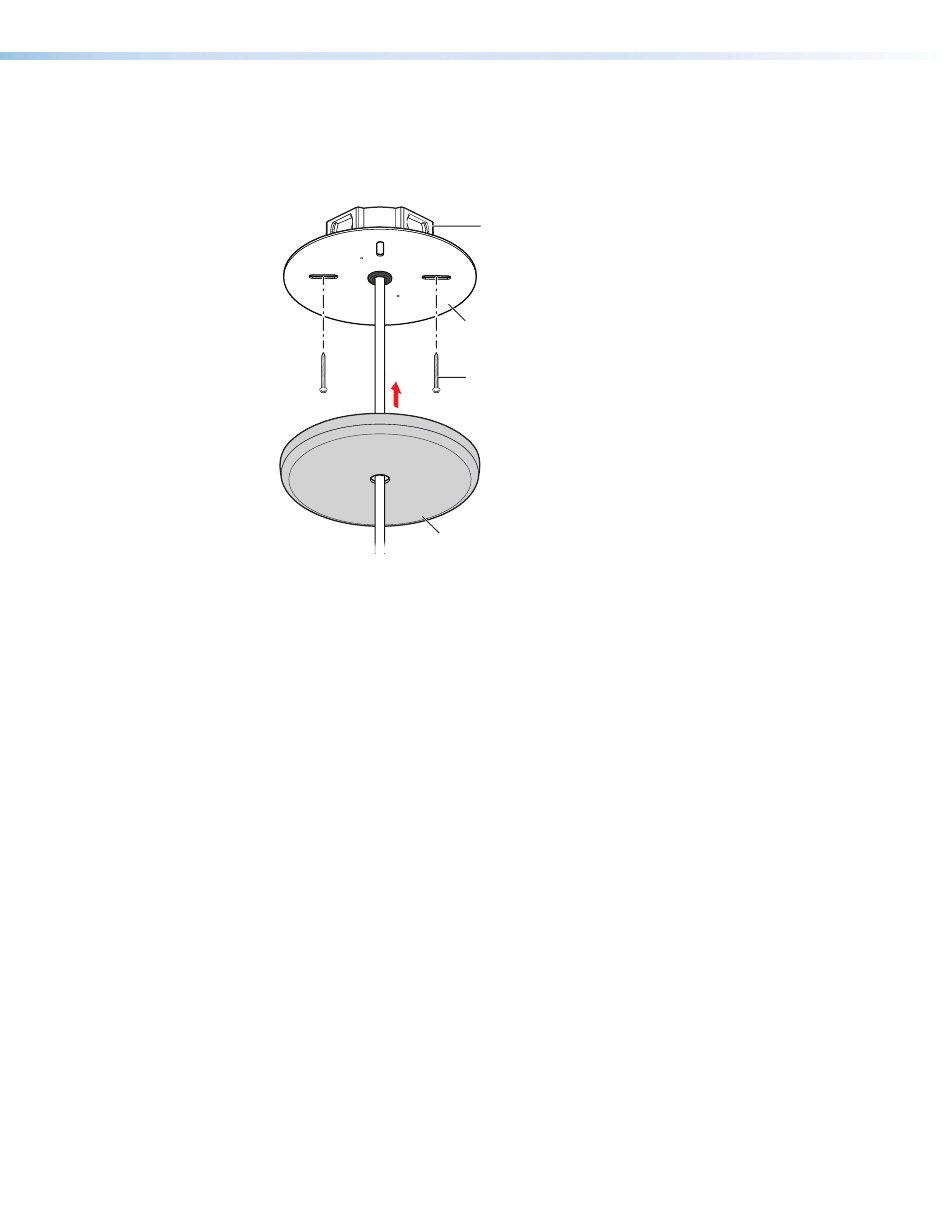

Ceiling Bracket to Junction Box Attachment
Wiring the Speaker
SF 28PT User Guide • Reference Information
on page 4.
on page 9).
