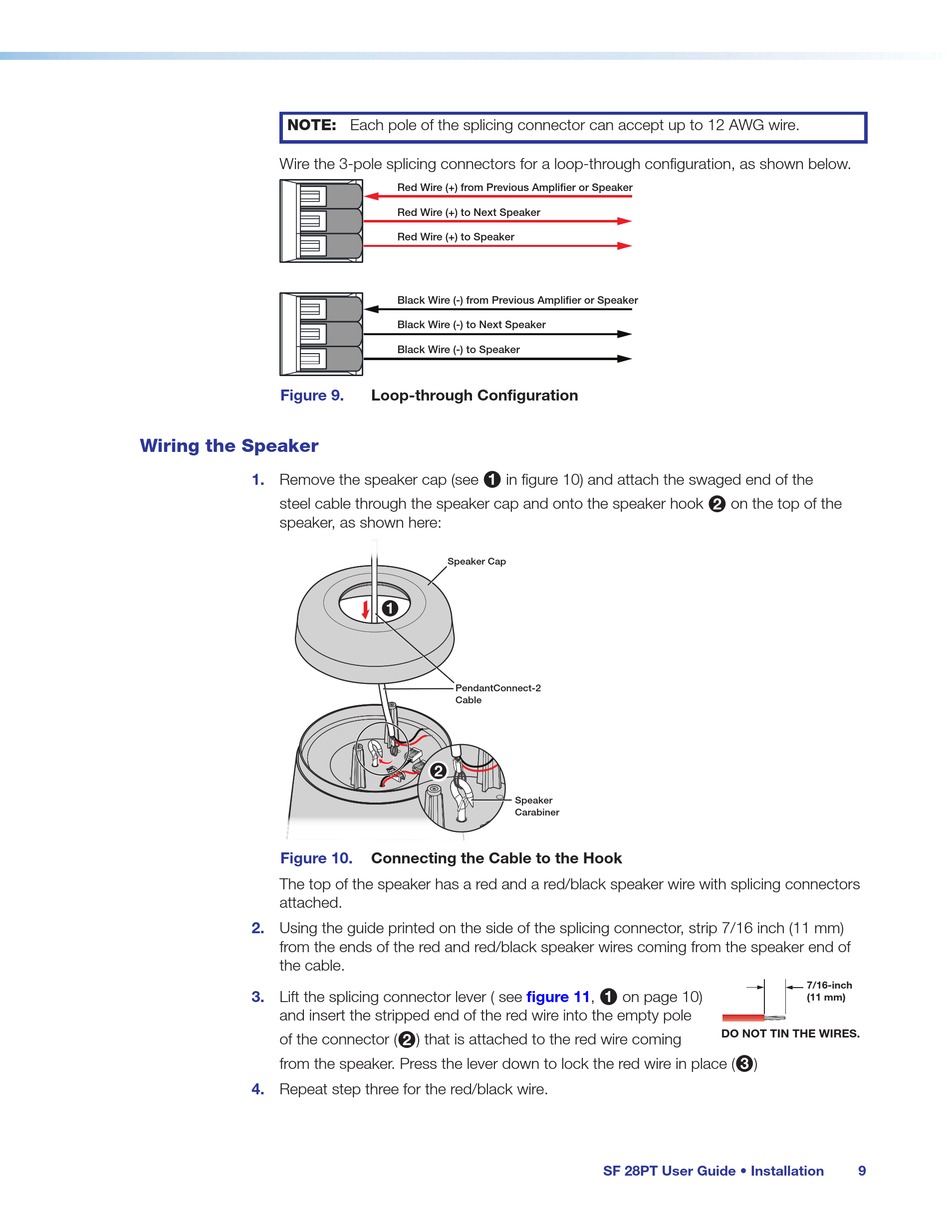

Wiring The Speaker - Extron electronics SF 28PT User Manual

NOTE: Each pole of the splicing connector can accept up to 12 AWG wire.
Wire the 3-pole splicing connectors for a loop-through configuration, as shown below.
Figure 9.

Wiring the Speaker

1.
Remove the speaker cap (see
steel cable through the speaker cap and onto the speaker hook
speaker, as shown here:
Figure 10.
The top of the speaker has a red and a red/black speaker wire with splicing connectors
attached.
2. Using the guide printed on the side of the splicing connector, strip 7/16 inch (11 mm)
from the ends of the red and red/black speaker wires coming from the speaker end of
the cable.
3. Lift the splicing connector lever ( see figure 11,
and insert the stripped end of the red wire into the empty pole
of the connector (
from the speaker. Press the lever down to lock the red wire in place (
4.
Repeat step three for the red/black wire.
Red Wire (+) from Previous Amplifier or Speaker
Red Wire (+) to Next Speaker
Red Wire (+) to Speaker
Black Wire (-) from Previous Amplifier or Speaker
Black Wire (-) to Next Speaker
Black Wire (-) to Speaker
Loop-through Configuration
in figure 10) and attach the swaged end of the
1
Speaker Cap
1 1 1
PendantConnect-2
Cable
2 2 2
Speaker
Carabiner
Connecting the Cable to the Hook
) that is attached to the red wire coming
2
on the top of the
2
on page 10)
1
DO NOT TIN THE WIRES.
)
3
SF 28PT User Guide • Installation
7/16-inch
(11 mm)
9
