SF 28PT • Setup Guide
This setup guide contains installation information for the
Extron SF 28PT Pendant Speaker.
NOTES:
•
Observe all applicable building codes and local
ordinances when installing the
SF 28PT speaker.
•
The two speaker wires of the
PendantConnect-2 cable are a red wire with a
black stripe (black) and a solid red wire (red).
Throughout the rest of this guide the speaker
wires are referred to as either being black or
red.
•
This speaker is intended for indoor dry
environment only.
WARNING:
Risk of personal injury or
property damage.
AVERTISSEMENT :
corporels ou matériels.
•
The final installation should be able to
continuously support the speaker weight. The
final installation should also be able to support
any short term overloading. Since applications
can vary considerably, it is assumed that the
installer will exercise good judgment when
selecting the mounting location, method, and
hardware. Installation and service must be
performed by authorized personnel only.
•
L'installation finale doit pouvoir supporter
en permanence le poids de l'enceinte.
L'installation finale doit également supporter
toute surcharge temporaire. Étant donné
la possibilité d'évolution considérable des
applications, il est supposé que l'installateur
fera preuve de discernement lors de la sélection
de l'emplacement, du mode, et du matériel de
montage. L'installation et la maintenance du
système doivent être exclusivement effectuées
par le personnel autorisé.
•
In order to ensure that the cable lock is not
unintentionally unlocked, keep the area within
2 inches (51 mm) of the cable lock in all
directions free of any other objects.
•
Afin d'assurer que le verrou du câble ne soit
involontairement enclenché, libérez l'espace
situé dans un intervalle de cinq centimètres
autour du verrou de tout autre objet.
Risque de dommages

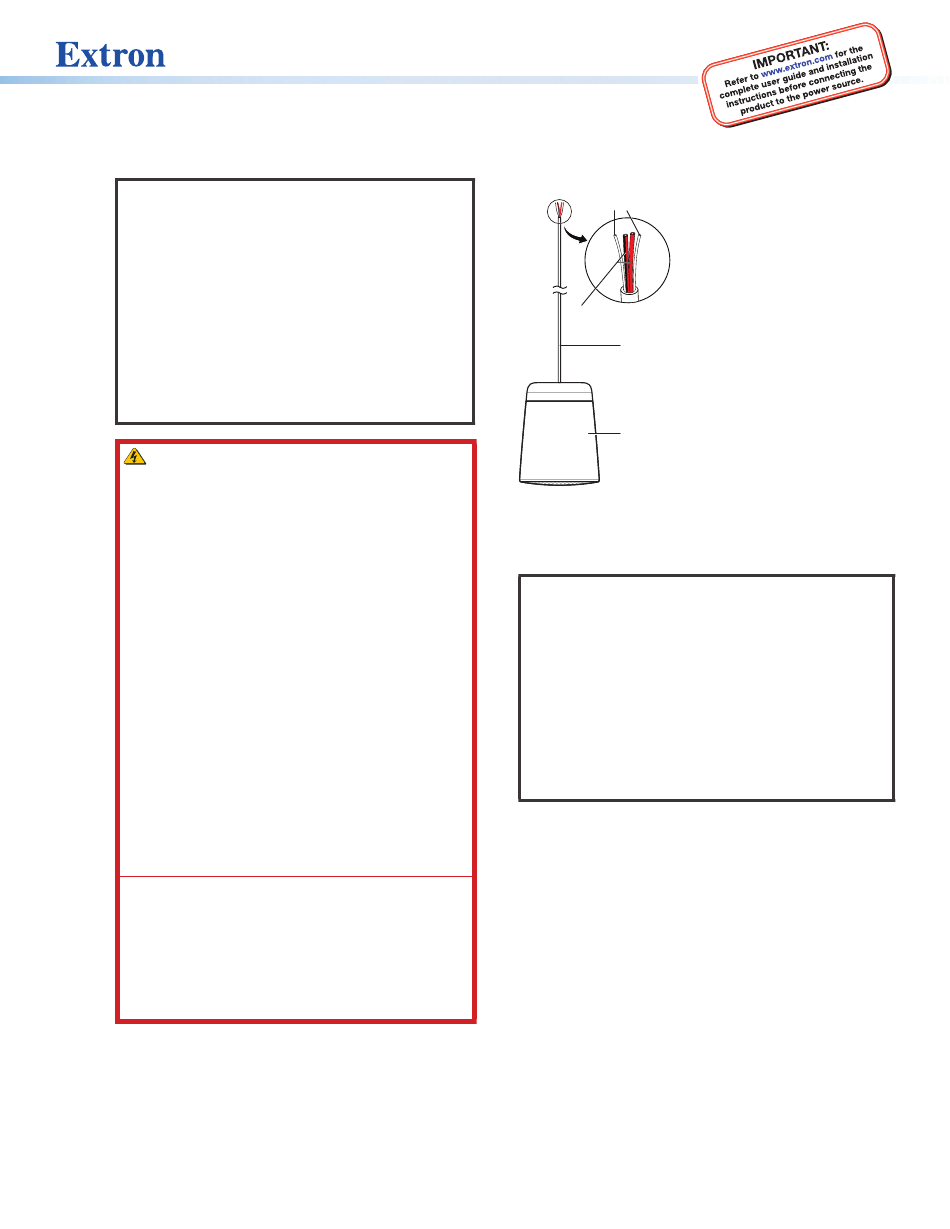

Installing the SF 28PT Speaker with
the Default Hardware
Steel Cables (2)
Speaker Wires (2) —
• Red with Black Stripe
• Red
PendantConnect-2
Cable
Speaker
to the 2-pole splicing connectors on the speaker. Follow
the steps below to properly install the speaker. Locate a
suitable permanent mounting location for the SF 28PT
where the two support cables can be securely attached.
NOTES:
•
The structural member of the building must be
able to support the complete speaker assembly
including the speaker and cap, support cables,
the speaker grille, and any optional accessories.
See the Warning at the beginning of this guide.
•
To help determine the necessary length of PCC-2
cable needed, if pre-cutting, see the "Reference
Information" section of the user guide, otherwise
follow the numbered steps below.
•
The speaker comes in a bag that helps to keep
the speaker clean during installation
Installing the Mounting Hardware
1. Locate a suitable mounting point for the SF 28PT, such
as a pipe or an eye bolt.
2. After determining the longest length of the two support
cables that is needed to attach the speaker to the
structure attachment points, cut the 30-foot (9.1 m)
PCC-2 cable so that the two steel cables and two
speaker wires are all of the same length.
Product Category

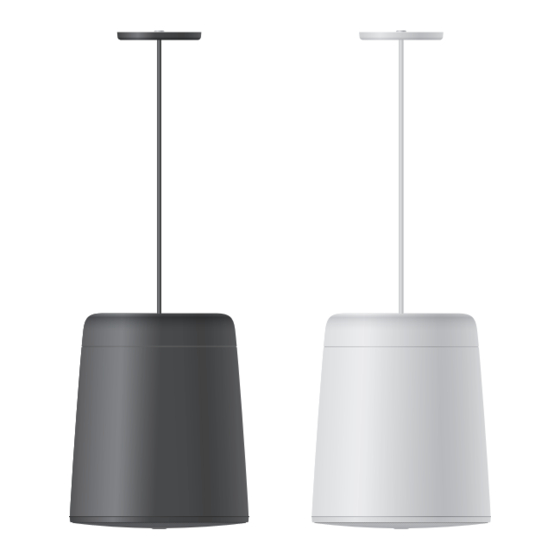

The SF 28PT speaker
assembly includes the SF
28PT speakers with removable
top caps, removable grilles,
and a 30-foot (9.1 m) length
of PendantConnect-2 (PCC-
2) suspension cable that
incorporates both the speaker
wires and two steel support
cables.
Installation requires attaching
two steel cables to a suitable
mounting point, such as a
pipe or eye bolt, attaching the
swaged ends of the cables to
a hook for the speaker, and
routing the two speaker wires
.
