SF 26PT • Setup Guide

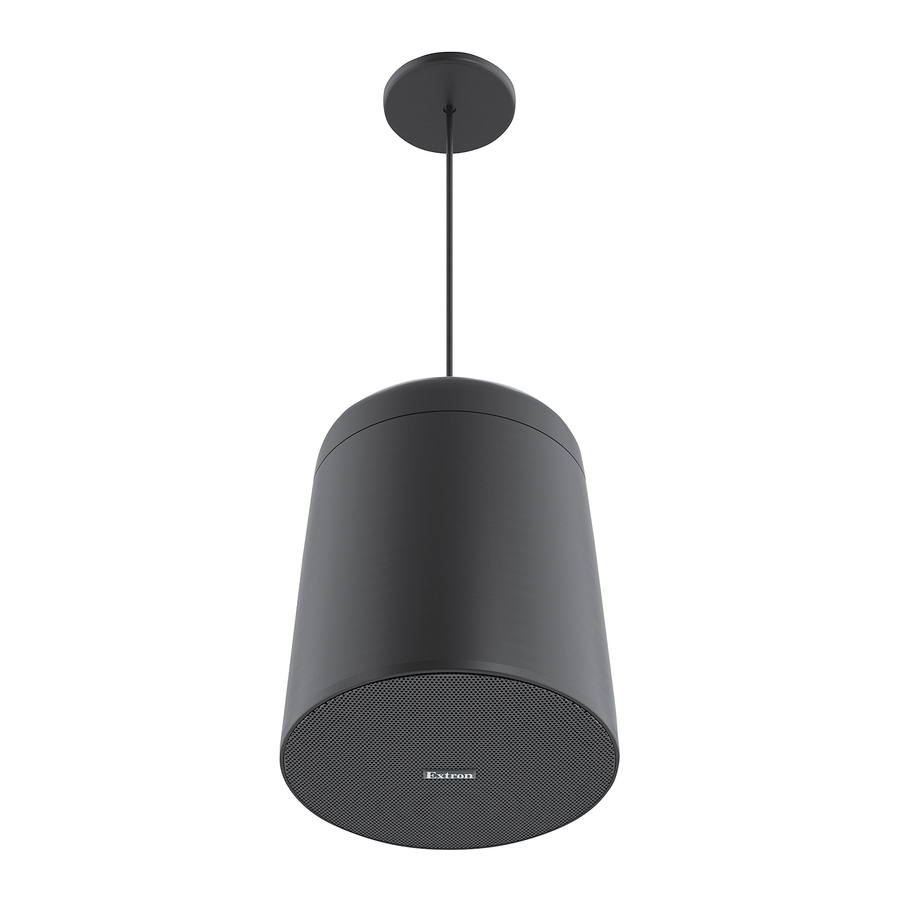

This setup guide contains installation information for the
Extron SF 26PT Pendant Speaker.
NOTE: Observe all
applicable building codes
and local ordinances
when installing the SF
26PT speaker.
NOTE: The 2 speaker
wires of the
PendantConnect-2
cable are a red wire
with a black stripe
(black) and a solid red
wire (red). Throughout
the rest of this guide
the speaker wires are
referred to as either
being black or red.
NOTE: This speaker is intended for
indoor dry environment only.
WARNING:
Risk of personal injury or
property damage.
• The final installation should be able to
continuously support the speaker weight. The
final installation should also be able to support
any short term overloading. Since applications
can vary considerably, it is assumed that the
installer will exercise good judgment when
selecting the mounting location, method, and
hardware. Installation and service must be
performed by authorized personnel only.
• In order to ensure that the cable lock is not
unintentionally unlocked, keep the area within
2 inches of the cable lock in all directions free
of any other objects.
AVERTISSEMENT :
corporels ou matériels.
• L'installation finale doit pouvoir supporter
en permanence le poids de l'enceinte.
L'installation finale doit également supporter
toute surcharge temporaire. Étant donné
la possibilité d'évolution considérable des
applications, il est supposé que l'installateur
fera preuve de discernement lors de la
sélection de l'emplacement, du mode, et
du matériel de montage. L'installation et
la maintenance du système doivent être
exclusivement effectuées par le personnel
autorisé.
Afin d'assurer que le verrou du câble ne
•
soit involontairement enclenché, libérez
l'espace situé dans un intervalle de cinq
centimètres autour du verrou de tout autre
objet.

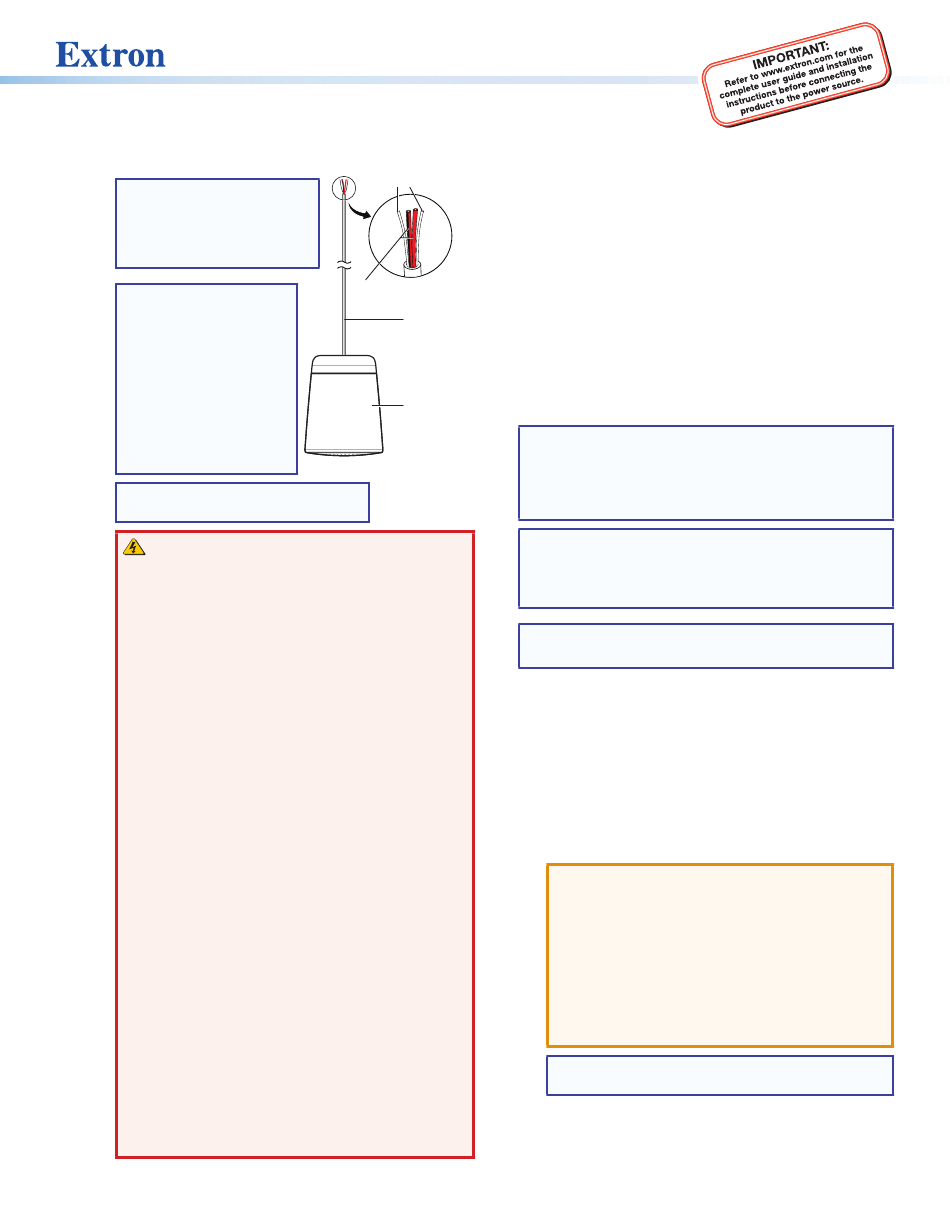

Steel Cables (2)
Speaker Wires (2) —
• Red with Black Stripe
• Red
PendantConnect-2
Cable
Speaker
Risque de dommages
Installing the SF 26PT Speaker with the
Default Hardware
The SF 26PT speaker assembly includes the SF 26PT
speakers with removable top caps, removable grilles, and
a 30-foot length of PendantConnect-2 (PCC-2) suspension
cable that incorporates both the speaker wires and two
steel support cables.
Installation requires attaching two steel cables to a suitable
mounting point, such as a pipe or eye bolt, attaching the
swaged ends of the cables to a hook for the speaker,
and routing the two speaker wires to the 2-pole splicing
connectors on the speaker. Follow the steps below to
properly install the speaker. Locate a suitable permanent
mounting location for the SF 26PT where the two support
cables can be securely attached.
NOTE: The structural member of the building must
be able to support the complete speaker assembly
including the speaker and cap, support cables, the
speaker grille, and any optional accessories. See the
Warning at the beginning of this guide.
NOTE: To help determine the necessary length of
PCC-2 cable needed, if pre-cutting, refer to the
"Reference Information" section of the user guide,
otherwise follow the numbered steps below.
NOTE: The speaker comes in a bag that helps to keep
the speaker clean during installation.
Installing the Mounting Hardware
1. Locate a suitable mounting point for the SF 26PT, such
as a pipe or an eye bolt.
2. After determining the longest length of the two support
cables that will be needed to attach the speaker to the
structure attachment points, cut the 30-foot PCC-2
cable so that the 2 steel cables and 2 speaker wires are
all of the same length.
ATTENTION:
Do not use regular wire cutters
to cut through the steel cable. Ordinary wire
cutters may be damaged when attempting to cut
through the steel cable. You must use a suitable
cable cutter to cut the steel cable.
ATTENTION :
N'utilisez pas de cisaille standard
pour couper le câble en acier. Ce type de cisaille
peut être endommagé lors de la coupe du câble
en acier. Vous devez utiliser une pince coupe-
câble adaptée à ce type de câble.
NOTE: Be sure to allow extra cable length for the
structure attachment points
