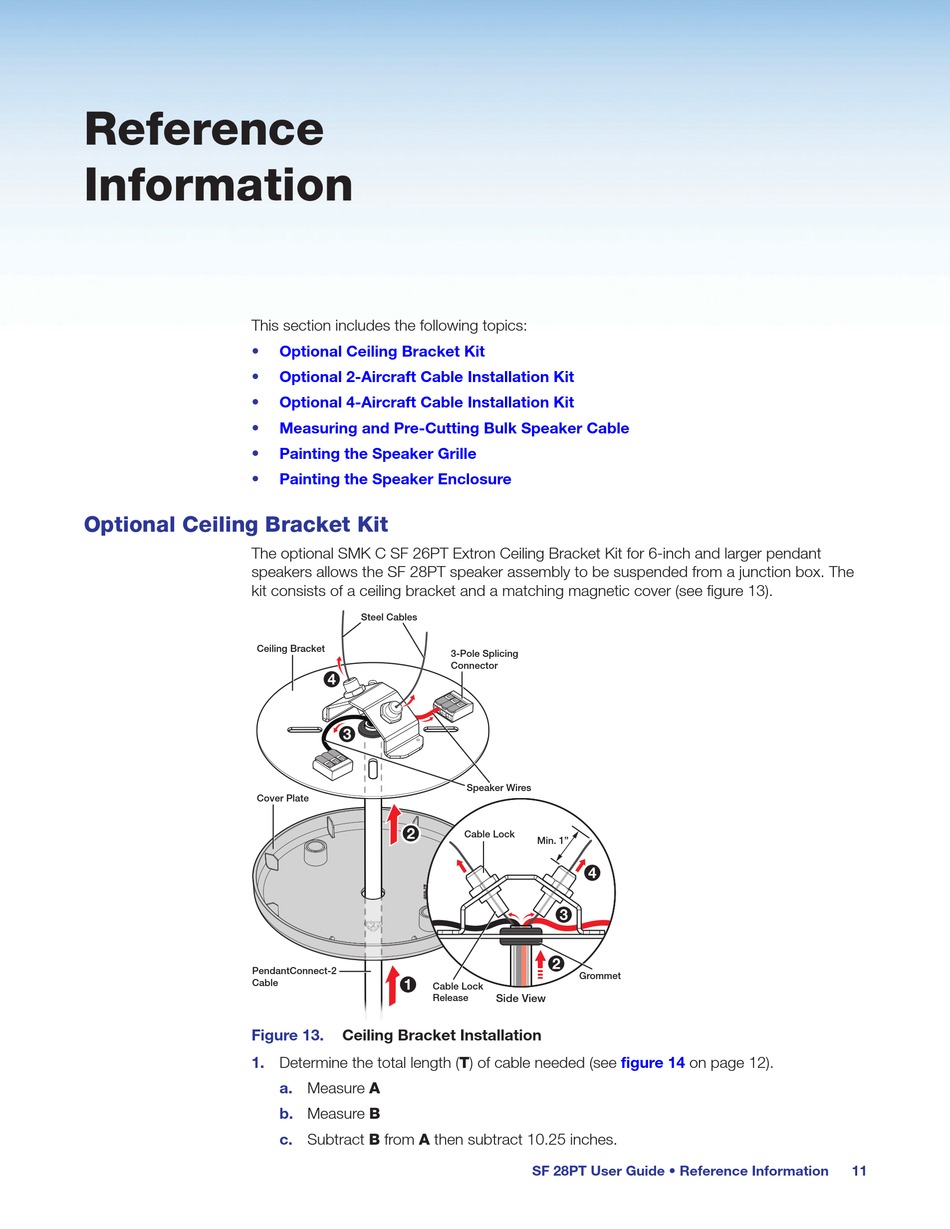

Reference Information; Optional Ceiling Bracket Kit - Extron electronics SF 28PT User Manual

Reference
Information
This section includes the following topics:
•
•
•
•
•
•

Optional Ceiling Bracket Kit

The optional SMK C SF 26PT Extron Ceiling Bracket Kit for 6-inch and larger pendant
speakers allows the SF 28PT speaker assembly to be suspended from a junction box. The
kit consists of a ceiling bracket and a matching magnetic cover (see figure 13).
Ceiling Bracket
Cover Plate
PendantConnect-2
Cable
Figure 13.
1.
Optional Ceiling Bracket Kit
Optional 2-Aircraft Cable Installation Kit
Optional 4-Aircraft Cable Installation Kit
Measuring and Pre-Cutting Bulk Speaker Cable
Painting the Speaker Grille
Painting the Speaker Enclosure
Steel Cables
3-Pole Splicing
Connector
4 4 4
3 3 3
2 2 2
1 1 1
Cable Lock
Release
Ceiling Bracket Installation
Determine the total length (T) of cable needed (see
a. Measure A
b. Measure B
c.
Subtract B from A then subtract 10.25 inches.
Speaker Wires
Cable Lock
Min. 1"
4 4 4
3 3 3
2 2 2
Grommet
Side View
figure 14
SF 28PT User Guide • Reference Information
Cable Lock
Min. 1"
on page 12).
