SF 26PT • Setup Guide
IMPORTANT NOTES:
Go to
www.extron.com
Access the installation video at
This setup guide contains installation information for the Extron SF 26PT Pendant Speaker.
NOTES:
• Observe all applicable building codes and local ordinances when installing the SF 26PT
speaker.
• The 2 speaker wires of the PendantConnect-2 cable are a red wire with a black stripe
(black) and a solid red wire (red). Throughout the rest of this guide the speaker wires
are referred to as either being black or red.
• This speaker is intended for indoor dry environment only.
WARNING: Risk of personal injury or property damage.
AVERTISSEMENT :
• The final installation should be able to continuously support the speaker weight. The
final installation should also be able to support any short term overloading. Since
applications can vary considerably, it is assumed that the installer will exercise good
judgment when selecting the mounting location, method, and hardware. Installation and
service must be performed by authorized personnel only.
• L'installation finale doit pouvoir supporter en permanence le poids de l'enceinte. L'installation finale doit également
supporter toute surcharge temporaire. Étant donné la possibilité d'évolution considérable des applications, il est supposé
que l'installateur fera preuve de discernement lors de la sélection de l'emplacement, du mode, et du matériel de montage.
L'installation et la maintenance du système doivent être exclusivement effectuées par le personnel autorisé.
• In order to ensure that the cable lock is not unintentionally unlocked, keep the area within 2 inches of the cable lock in all
directions free of any other objects.
• Afin d'assurer que le verrou du câble ne soit involontairement enclenché, libérez l'espace situé dans un intervalle de cinq
centimètres autour du verrou de tout autre objet.
Installing the SF 26PT Speaker with the Default Hardware
The SF 26PT speaker assembly includes the SF 26PT speakers with removable top caps, removable grilles, and a 30-foot length
of PendantConnect-2 (PCC-2) suspension cable that incorporates both the speaker wires and two steel support cables.
Installation requires attaching two steel cables to a suitable mounting point, such as a pipe or eye bolt, attaching the swaged ends
of the cables to a hook for the speaker, and routing the two speaker wires to the 2-pole splicing connectors on the speaker. Follow
the steps below to properly install the speaker. Locate a suitable permanent mounting location for the SF 26PT where the two
support cables can be securely attached.
NOTES:
• The structural member of the building must be able to support the complete speaker assembly including the speaker and
cap, support cables, the speaker grille, and any optional accessories. See the Warning above.
• To help determine the necessary length of PCC-2 cable needed, if pre-cutting see the "Reference Information" section
of the user guide, otherwise follow the numbered steps below.
• The speaker comes in a bag that helps to keep the speaker clean during installation.
for the complete SF 26PT user guide, installation instructions, and specifications.
www.extron.com/sf26ptinstall
Risque de dommages corporels ou matériels.
or scan the QR code on the right.

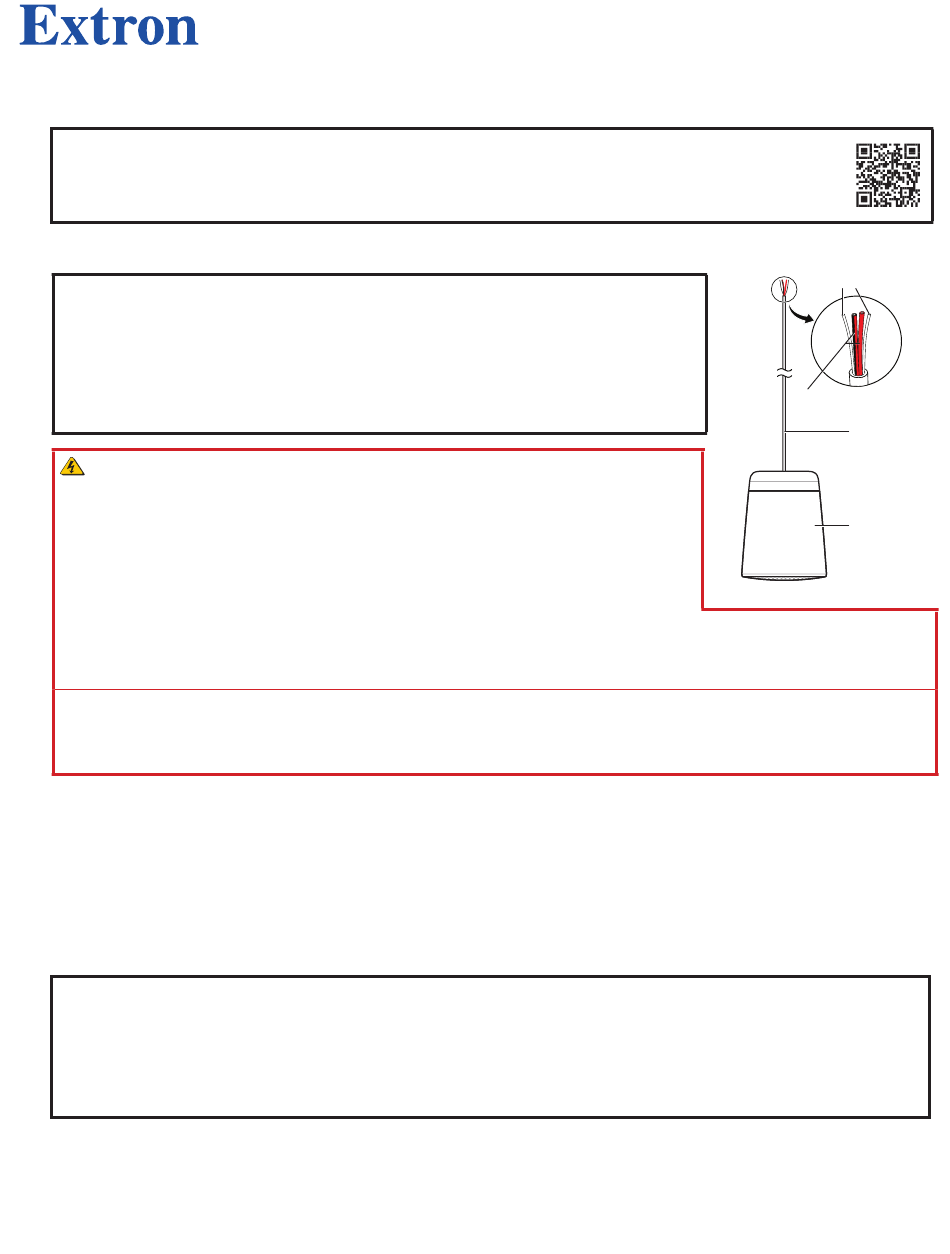

Steel Cables (2)
Speaker Wires (2) —
• Red with Black Stripe
• Red
PendantConnect-2
Cable
Speaker
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SF 26PT and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics SF 26PT

Summary of Contents for Extron electronics SF 26PT

  • Page 1 2-pole splicing connectors on the speaker. Follow the steps below to properly install the speaker. Locate a suitable permanent mounting location for the SF 26PT where the two support cables can be securely attached.

  • Page 2: Installing The Mounting Hardware

    Installing the Mounting Hardware Locate a suitable mounting point for the SF 26PT, such as a pipe or an eye bolt. After determining the longest length of the two support cables that will be needed to attach the speaker to the structure attachment points, cut the 30-foot PCC-2 cable so that the 2 steel cables and 2 speaker wires are all of the same length.

  • Page 3: Loop-Through

    11. When daisy-chaining speakers, wire the 3-pole splicing connectors for a Loop-through configuration. Loop-through: Red Wire (+) from Previous Speaker/Amplifier Red Wire (+) to Next Speaker Red Wire (+) to Speaker Black Wire (-) from Previous Speaker/Amplifier Black Wire (-) to Next Speaker Black Wire (-) to Speaker NOTES: •...
  • Page 4 SF 26PT • Setup Guide (Continued) The speaker wires are now connected at the back of the speaker. 2-Pole Splicing Remove and properly dispose of the bag. Connectors To set the tap selector switch, use the provided grille hook to first remove the speaker grille.

  • Page 5: Optional Ceiling Bracket Kit

    Optional Ceiling Bracket Kit The optional SMK C SF 26PT Extron Ceiling Bracket Kit allows the SF 26PT speaker assembly to be suspended from a octagon junction box. The kit consists of two ceiling brackets and matching magnetic covers. Install and wire an octagon junction box where the ceiling Steel Cables bracket is to be attached.
  • Page 6 SF 26PT • Setup Guide (Continued) Optional 2-Cable Installation Kit The optional Extron SMK A 2C 2-aircraft cable installation kit allows the SF 26PT speaker to be suspended from 3 overhead points such as a pipe or eye bolt using the 2 included PCC-2 steel cables and the 2 additional cables from the kit.

  • Page 7: Five Mounting Points

    Connect the 6 swaged steel cable ends (2 from the PCC-2 cable and 4 2" min. from the kit) through the speaker cap and to the hook NOTE: See the user guide for painting instructions. Five Mounting Points See the SF 26PT User Guide for further details.
  • Page 8 For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website. © 2018-2024 Extron — All rights reserved. www.extron.com 68-3135-50 Rev. B All trademarks mentioned are the property of their respective owners. 10 24 Worldwide Headquarters: Extron USA West, 1025 E.
