d.
Loop-through:
Figure 20.
9. When daisy chaining speakers, run a speaker wire from each 3-pole splicing connector
through the speaker cap and to the next speaker (see figure 19, on the previous page).
NOTE: Amplifier wires going to the 3-pole splicing connector, and speaker wires
being daisy chained to the next speaker may be neatly routed along a steel cable
using zip ties.

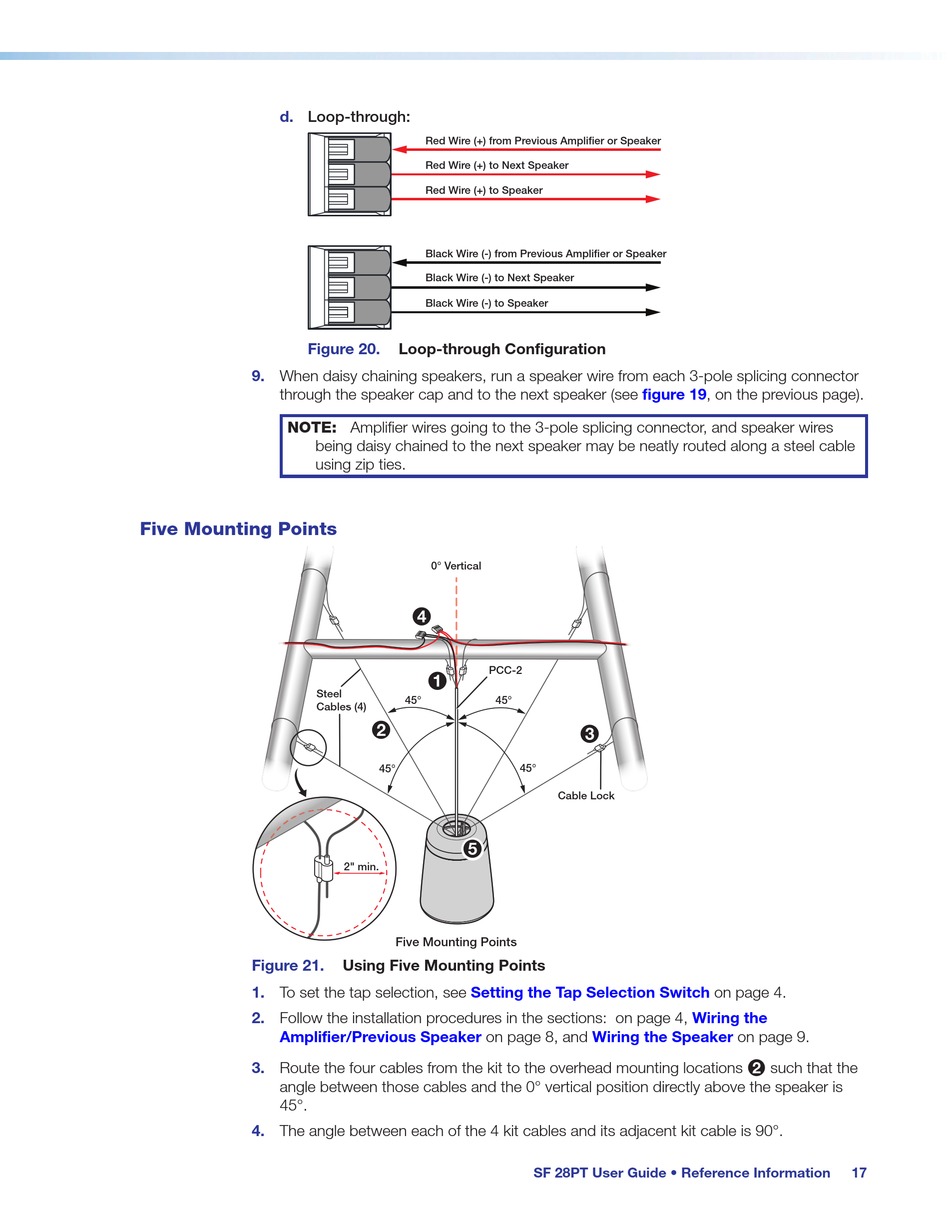

Five Mounting Points

Steel
Cables (4)
Figure 21.
1. To set the tap selection, see
2. Follow the installation procedures in the sections: on page 4,
Amplifier/Previous Speaker
3.
Route the four cables from the kit to the overhead mounting locations
angle between those cables and the 0° vertical position directly above the speaker is
45°.
4. The angle between each of the 4 kit cables and its adjacent kit cable is 90°.
Red Wire (+) from Previous Amplifier or Speaker
Red Wire (+) to Next Speaker
Red Wire (+) to Speaker
Black Wire (-) from Previous Amplifier or Speaker
Black Wire (-) to Next Speaker
Black Wire (-) to Speaker
Loop-through Configuration
0° Vertical
4 4 4
PCC-2
1 1 1
45° 45°
2 2 2
45° 45°
5 5 5
2" min.
Five Mounting Points
Using Five Mounting Points
Setting the Tap Selection Switch
on page 8, and
3 3 3
Cable Lock
Wiring the
Wiring the Speaker
SF 28PT User Guide • Reference Information
on page 4.
on page 9.
such that the
2
17
