SF 28PT • Setup Guide
IMPORTANT NOTES:
Go to www.extron.com
Access the installation video at
and the link are applicable to both the SF 28PT and the SF 26PT.

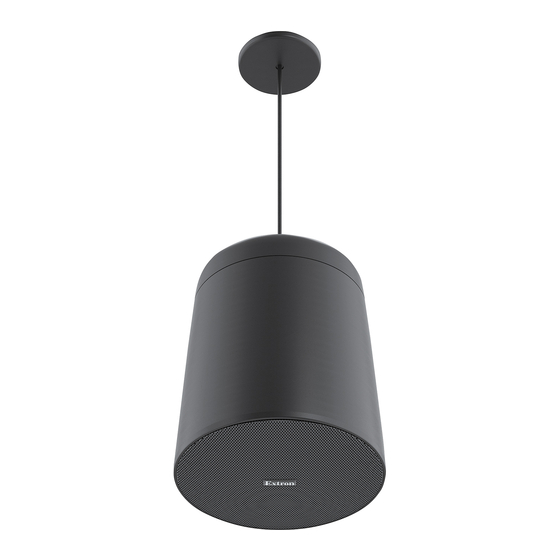

This setup guide contains installation information for the Extron SF 28PT Pendant Speaker.
NOTES:
• Observe all applicable building codes and local ordinances when installing the SF 28PT speaker.
• The two speaker wires of the PendantConnect-2 cable are a red wire with a black stripe (black) and a solid red wire (red).
Throughout the rest of this guide the speaker wires are referred to as either being black or red.
• This speaker is intended for indoor dry environment only.
WARNING: Risk of personal injury or property damage.
AVERTISSEMENT :
• The final installation should be able to continuously support the speaker weight. The final installation should also be
able to support any short term overloading. Since applications can vary considerably, it is assumed that the installer will
exercise good judgment when selecting the mounting location, method, and hardware. Installation and service must be
performed by authorized personnel only.
• L'installation finale doit pouvoir supporter en permanence le poids de l'enceinte. L'installation finale doit également
supporter toute surcharge temporaire. Étant donné la possibilité d'évolution considérable des applications, il est supposé
que l'installateur fera preuve de discernement lors de la sélection de l'emplacement, du mode, et du matériel de montage.
L'installation et la maintenance du système doivent être exclusivement effectuées par le personnel autorisé.
• In order to ensure that the cable lock is not unintentionally unlocked, keep the area within 2 inches (51 mm) of the cable
lock in all directions free of any other objects.
• Afin d'assurer que le verrou du câble ne soit involontairement enclenché, libérez l'espace situé dans un intervalle de cinq
centimètres autour du verrou de tout autre objet.
Installing the SF 28PT Speaker with the Default Hardware
The SF 28PT speaker assembly includes the SF 28PT speakers with removable top caps,
removable grilles, and a 30-foot (9.1 m) length of PendantConnect-2 (PCC-2) suspension cable
that incorporates both the speaker wires and two steel support cables.
Installation requires attaching two steel cables to a suitable mounting point, such as a pipe or
eye bolt, attaching the swaged ends of the cables to a hook for the speaker, and routing the
two speaker wires to the 2-pole splicing connectors on the speaker. Follow the steps below to
properly install the speaker. Locate a suitable permanent mounting location for the SF 28PT
where the two support cables can be securely attached.
NOTES:
• The structural member of the building must be able to support the complete speaker
assembly including the speaker and cap, support cables, the speaker grille, and any
optional accessories. See the Warning at the beginning of this guide.
• For pre-cutting the PCC cable, to help determine the necessary length needed, see
the "Reference Information section of the user guide (see product page on the Extron
site), otherwise see
• The speaker comes in a bag that helps to keep the speaker clean during installation.
for the complete SF 28PT user guide, installation instructions, and specifications.
www.extron.com/sf26ptinstall
Risque de dommages corporels ou matériels.
Installing the Mounting Hardware
or scan QR code on the right. This QR code
steps on page 2.

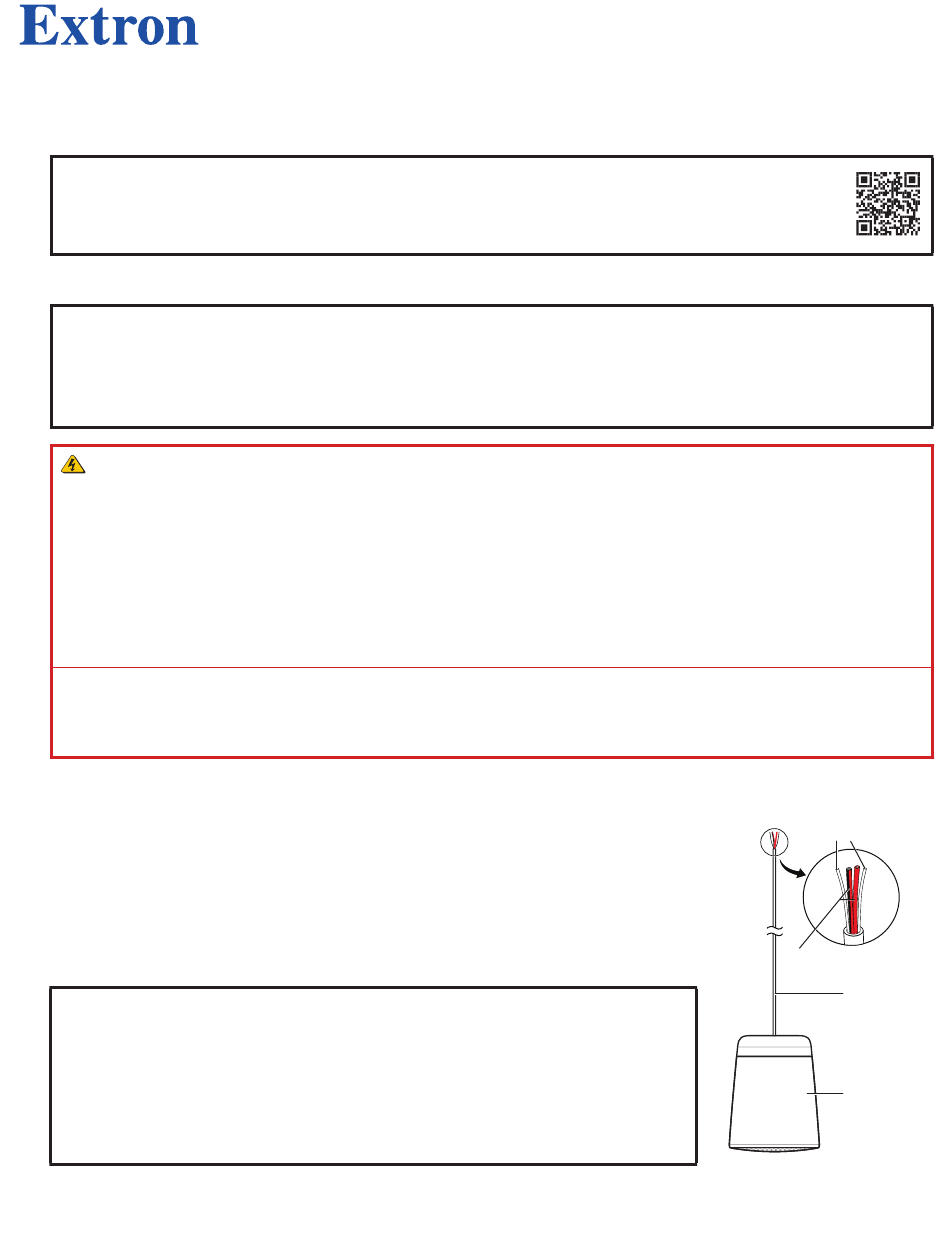

Steel Cables (2)
Speaker Wires (2) —
• Red with Black Stripe
• Red
PendantConnect-2
Cable
Speaker
