Setting the Tap Selection Switch

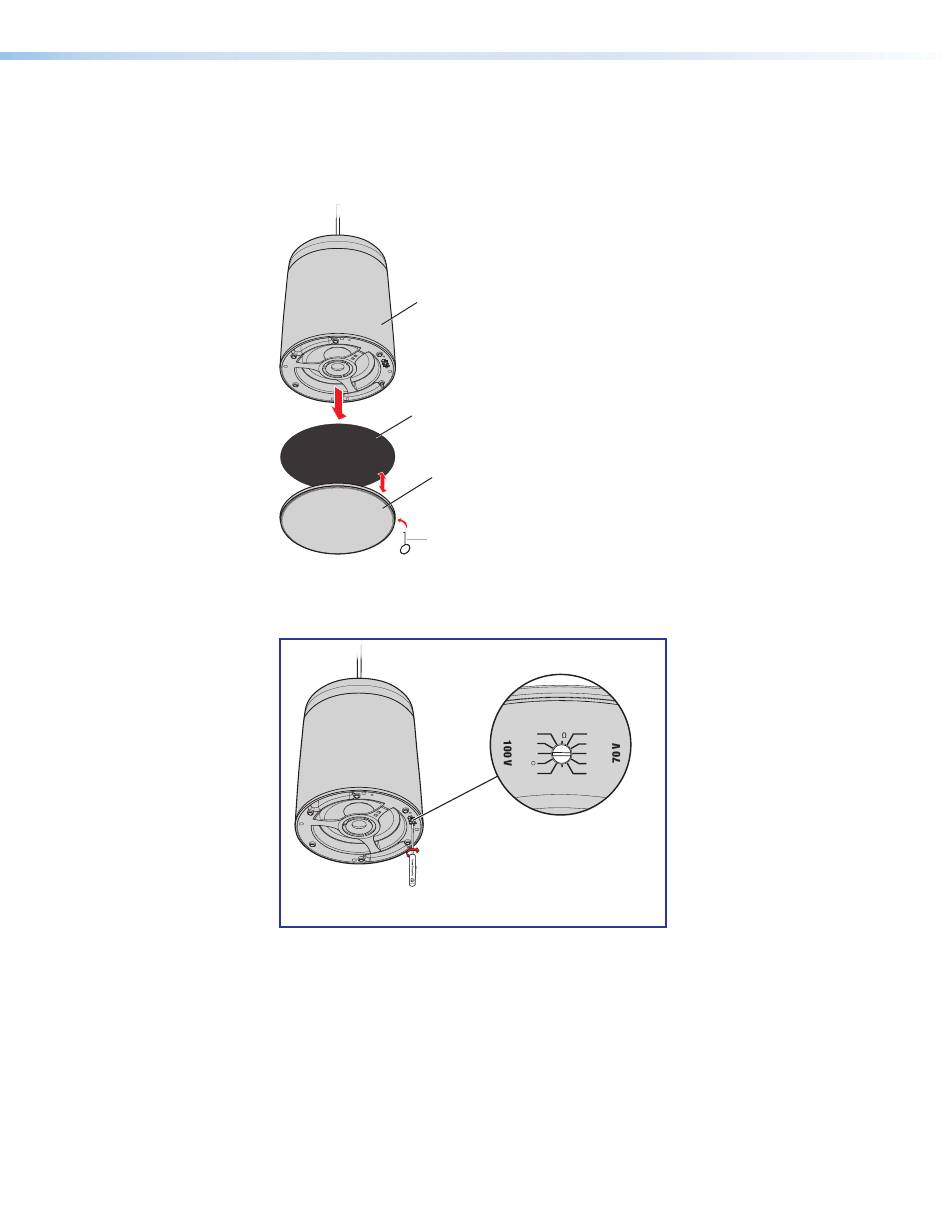

1. To set the tap selection switch, use the provided grille hook to remove the speaker
grille. Insert the small end of the hook through any perforation along the outer edge of
the grille and pull the grille off the speaker.
Figure 3.
2. Use an Extron Tweeker or small screwdriver to set the tap selection switch to the
desired position.
Figure 4.
3. Replace the speaker grille.
Enclosure
Cloth Scrim Backing
Speaker Grille
Grille Hook
Removing the Speaker Grille
16W
32W
64W
OFF
Adjust the Tap Selector
Setting the Tap Selection Switch
OFF
8
64W
32W
16W
8Ω
8W
SF 28PT User Guide • Installation 4
