Extron electronics SF 3PT User Manual

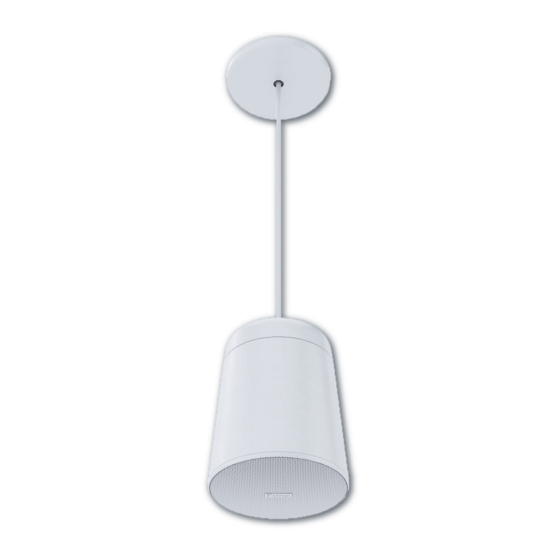

Pendant speakers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Audio Speakers
SF 3PT
Pendant Speakers
68-3094-01 Rev. B
01 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF 3PT and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics SF 3PT

Summary of Contents for Extron electronics SF 3PT

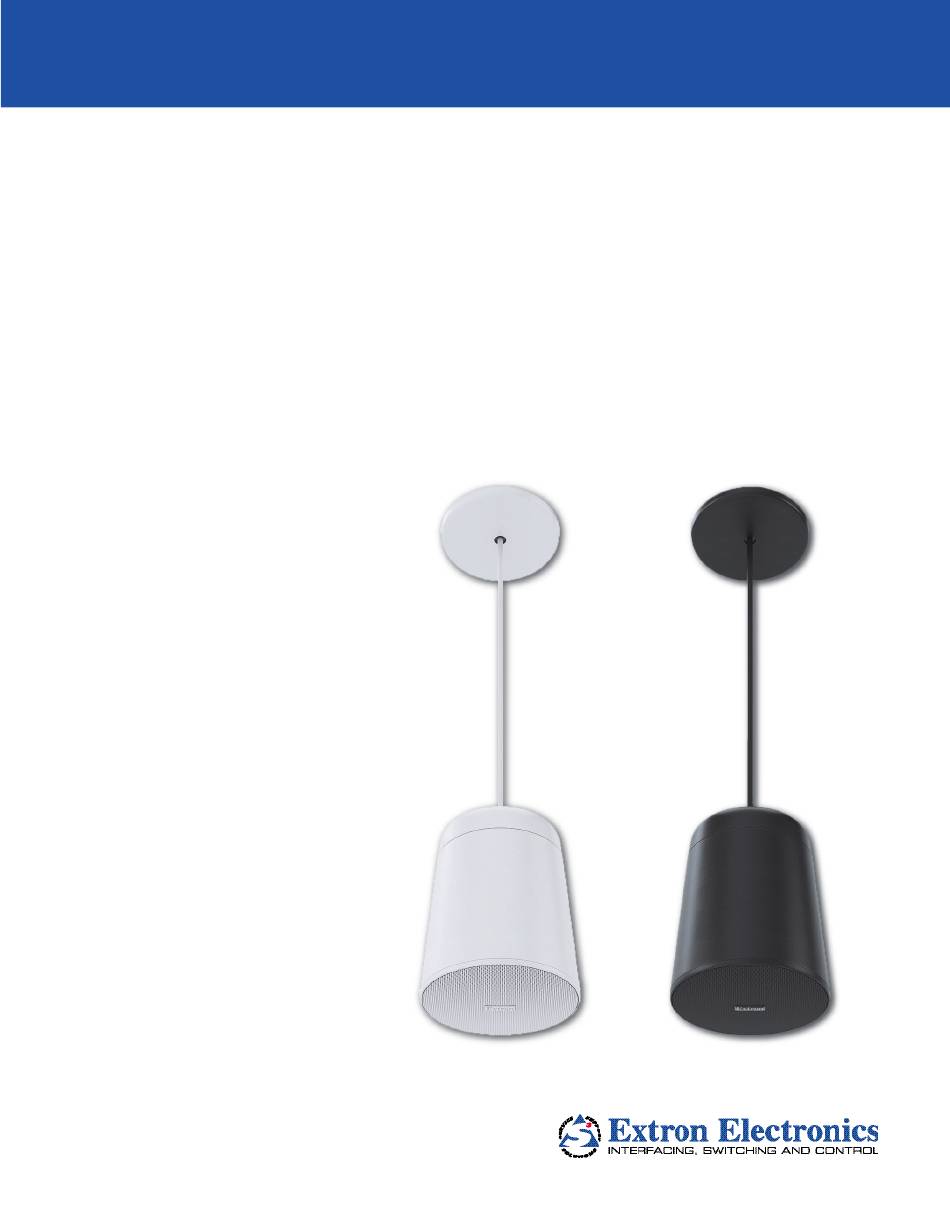

  • Page 1 User Guide Audio Speakers SF 3PT Pendant Speakers 68-3094-01 Rev. B 01 19...
  • Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING: This symbol, ,when used on the product, is avvertire l’utente della presenza di tensione non isolata pericolosa intended to alert the user of the presence of uninsulated dangerous all’interno del contenitore del prodotto che può...
  • Page 3 安全記事 • 繁體中文 안전 지침 • 한국어 警 告 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 若產品 上使 用此 符 號 ， 是 為了提 醒 使 用者，產品 機 殼內 存 在 著 접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 可能會導致觸電之風險的未絕緣危險電壓。...
  • Page 4 NOTE: A note draws attention to important information. Specifications Availability Product specifications are available on the Extron website, www.extron.com. Copyright © 2018-2019 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks...

  • Page 5: Table Of Contents

    SF 3PT Application Examples ......2 Installation ............. 4 Installing the SF 3PT Speaker ......5 Wiring the SF 3PT Speaker Assembly ..... 6 Wiring the SF 3PT Ceiling Bracket ....11 Reference Information ....... 15 Measuring and Pre-Cutting the PendantConnect Speaker Cable .....
  • Page 6 NetPA AT Series User Guide • Contents...

  • Page 7: Introduction

    This guide describes the installation and set up of the SF 3PT pendant speaker. Overview The Extron SF 3PT speaker is a pendant speaker suspended by a cable that incorporates a steel cable and the speaker wiring. The SF 3PT is ideal for open and mixed ceiling applications. Features •...

  • Page 8: Sf 3Pt Application Examples

    White: Part # 22-270-02 • • 5-year parts and labor warranty NOTE: This speaker is intended for indoor dry environment only. SF 3PT Application Examples The following illustrations are two examples of configuring the SF 3PT speakers. Extron SF 3PT Pendant Speakers HDMI...
  • Page 9 DIGITAL MATRIX PROCESSOR Extron Extron XPA 1002-70V DMP 128 Plus Ampli er Digital Matrix Processor Audio Extron MUTE ACP 106D VOLUME Paging System PROGRAM Audio Control Panel Figure 2. Application Example: Mixed Open/Drop-Ceiling Environment SF 3PT User Guide • Introduction...

  • Page 10: Installation

    Installation This section describes the installation of the SF 3PT speaker and includes the following topics: • Installing the SF 3PT Speaker WARNING: Risk of personal injury or property damage. The final installation should be able to continuously support the speaker weight. The final installation should also be able to support any short term overloading.

  • Page 11: Installing The Sf 3Pt Speaker

    Installing the SF 3PT Speaker The SF 3PT speaker is ideal for open ceilings. It is suspended from a user-supplied “octagon” type ceiling electrical box, as shown below. “Octagon” Type Ceiling Electrical Box Ceiling Bracket Ceiling Bracket Cover Plate PendantConnect Speaker Cable...

  • Page 12: Wiring The Sf 3Pt Speaker Assembly

    The mounting screw hole pattern needs to be between 2.36" and 3.50" (60 mm and 89 mm). • The ceiling electrical box that the SF 3PT is mounting to needs to be rated to support sufficient weight. • The SF 3PT speaker weighs 3.6 lbs. (1.6 kg) with speaker cap, Ceiling Bracket/ Cover Plate, and 10' (3.1 m) of PendantConnect cable.
  • Page 13 Compression Fitting Compression Figure 5. Routing the Speaker Cable NOTE: The compression nut is tight when the bottom of the compression nut touches the compression fitting. Tighten to at least 30 in-lb (3.4 N∙m). SF 3PT User Guide • Installation...
  • Page 14 2 that is attached to the black wire coming from the speaker. Press the lever down to lock the black wire in place 3. The speaker wires are now connected at the back of the speaker. 2-Pole Splicing Connectors Figure 7. Connected Speaker Wires SF 3PT User Guide • Installation...
  • Page 15 3, then tighten the screw 4. Pull the free end of the steel cable through the other cable guide in the bracket. NOTE: It is not required to remove the outer jacket from the steel cable. SF 3PT User Guide • Installation...
  • Page 16 Use a Tweeker or small screwdriver to set the tap selection switch to the desired position. Tap Selection Switch Figure 10. Tap Selection Switch SF 3PT User Guide • Installation...

  • Page 17: Wiring The Sf 3Pt Ceiling Bracket

    Wiring the SF 3PT Ceiling Bracket 6” (15.2 cm) Ceiling Bracket Ceiling Bracket Cover Plate PendantConnect Speaker Cable Speaker Speaker Floor Figure 4. Order of Assembly NOTE: When using pre-cut cables, as described in the Reference Information section, skip steps 1, 3, and 4.
  • Page 18 Using the guide on the side of the splicing connector, strip .43 inch (11 mm) from the ends of the protruding black and red wires. These wires will be inserted into the two 3-pole splicing connectors (included). .43" (11 mm) DO NOT TIN the wires. SF 3PT User Guide • Installation...
  • Page 19 NOTE: Each pole of the splicing connector is capable of accepting up to 12 AWG wire. SF 3PT User Guide • Installation...
  • Page 20 Using two screws, attach the ceiling bracket to the ceiling box with the splicing connectors inserted into the ceiling box. Ceiling Box Ceiling Bracket Screw Ceiling Bracket Cover Plate Figure 17. Attaching Ceiling Bracket to Ceiling Box SF 3PT User Guide • Installation...

  • Page 21: Reference Information

    Reference Information This section describes the installation of the SF 3PT speaker and includes the following topic: • Measuring and Pre-Cutting the PendantConnect Speaker Cable Measuring and Pre-Cutting the PendantConnect Speaker Cable To determine the length of the PendantConnect speaker cable to cut, do the following.
  • Page 22 Wiring the SF 3PT Speaker Assembly section on page 6 and follow the steps until you reach the Wiring the SF 3PT Ceiling Bracket section on page 10 where you will skip steps 1, 3, and 4. SF 3PT User Guide • Reference Information...
  • Page 23 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
