USING THE ETEK5

SETTING THE TRIGGER

There are three adjustment points on the trigger – the pre-travel screw, the post-
travel adjuster screw, and the magnet adjuster screw.
As standard each ETEK5 comes with a factory set trigger travel of approximately
2mm in total length; one millimeter of travel before the firing point and one
millimeter of travel after the firing point.
The pre-travel adjuster screw is used to set the amount of trigger travel prior to
the marker firing. Turn this screw clockwise to reduce the amount of travel. Do not
turn the screw too far or the trigger will be pushed past the firing point and the
marker will not work. Turn this screw counter clockwise to increase the amount of
trigger travel (see figure 14A).
The post-travel adjuster screw is used to set the amount of travel after the marker
has fired. Turn this screw clockwise to reduce the amount of travel. Do not turn
the screw too far or the trigger will be prevented from reaching its firing point
and the marker will not work. Turn this screw counter clockwise to increase the
amount of travel (see figure 14B).
The magnet adjuster screw is used to adjust the amount of return force with
which the trigger is returned. Turn the screw clockwise to increase the amount
of magnet return force. Do not turn the screw to far or it will negate the position
of the pre-travel adjuster screw. Turn the screw counter clockwise to reduce the
amount of magnet return force (see figure
20 ETEK5 MANUAL
14C).
+

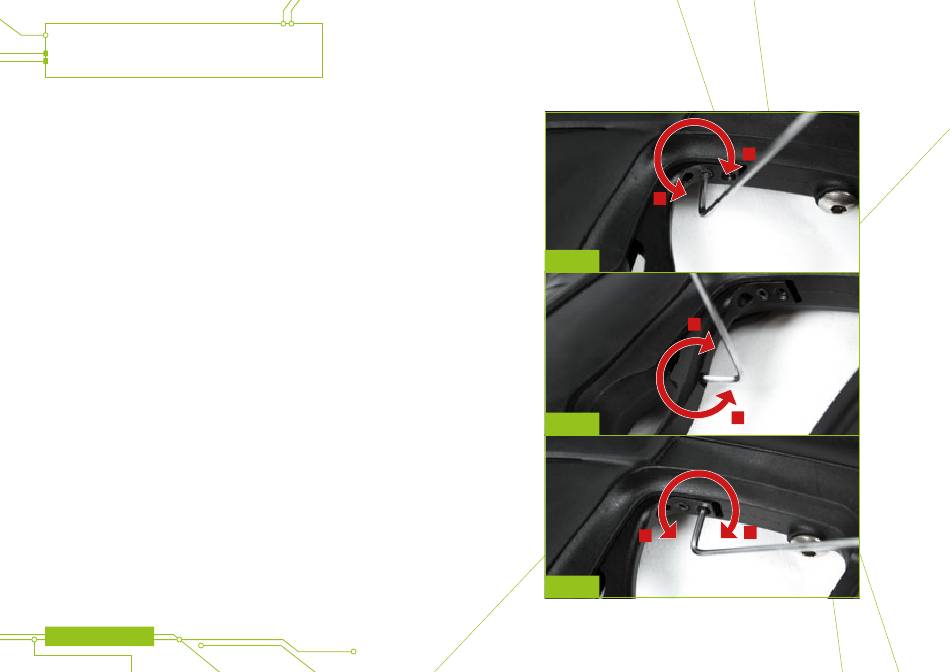

FIG 14A
_
FIG 14B
_
FIG 14C
_
+
+
