MAINTENANCE
CONTINUED

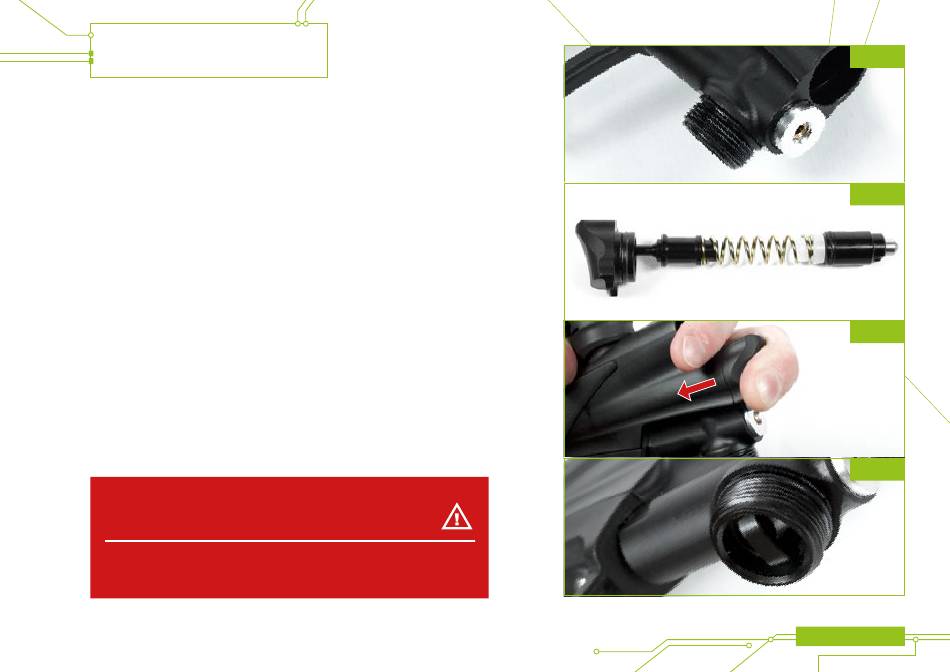

Ensure the LPR assembly is still correctly in place in the body
Make sure the exhaust hole in the valve guide is pointed directly upwards and
the lip on the valve plug is pointed downwards
entire valve guide, exhaust valve, valve stem and valve plug into the body.
Ensure the valve guide is fully inserted into the ETEK5 body.
Push and hold the valve plug firmly up to the ETEK5 body
the tuning fork and insert it into the FRM positioning the forks either side the LPR
body. Push the fork up into the body until the tips of the fork stop against the
inside of the body and the base of the tuning fork is flush with the threads on the
FRM (see figure 30P).
You have now successfully stripped and cleaned your ETEK5 valve assembly.
See page 40 on how to attach the SL4 inline regulator.
WARNING!
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
(see figure 30M).
(see figure 30N). Then slide the
(see figure 30O), take
WARNING
FIG 30M
FIG 30N
FIG 30O
FIG 30P
