MAINTENANCE
CONTINUED
Clean and check the condition of the single internal 005 NBR 90 o-ring in the
front of the OOPS insert and replace if necessary
o-ring liberally using Eclipse Grease.
Lubricate the narrow end of the OOPS pin with a smear of Eclipse Grease and
push the OOPS pin, narrow end first, into the OOPS insert so that it sits in the
OOPS insert and pokes through to the front
Screw the OOPS insert back into the OOPS body ensuring that the o-ring end
goes in first.
Replace the push rod into its designated slot
70 o-rings onto both ends of the push rod. Make sure the push rod is centred in
the OOPS body (see figure 31K).
Slide the OOPS knob over the OOPS body and screw the OOPS knob onto the
OOPS body (see figure 31L).
Reconnect the macroline hose to the fitting on the OOPS body
You have now successfully cleaned and maintained your On/Off Purge System.
WARNING!
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
(see figure 31G). Lubricate this
(see figures 31H & 31I).
(see figure 31J) then side 004 NBR
(see figure 31M).
WARNING

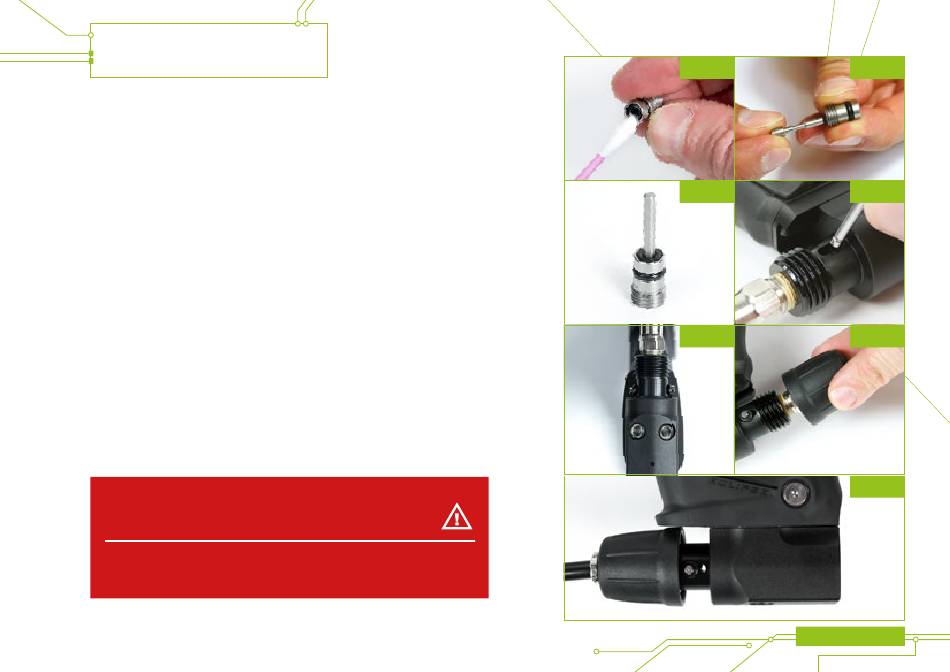

FIG 31G FIG 31H
FIG 31I FIG 31J
FIG 31K FIG 31L
FIG 31M
