Eclipse ETEK 5 User Manual page 44

MAINTENANCE
CLEANING AND LUBRICATING THE BOLT

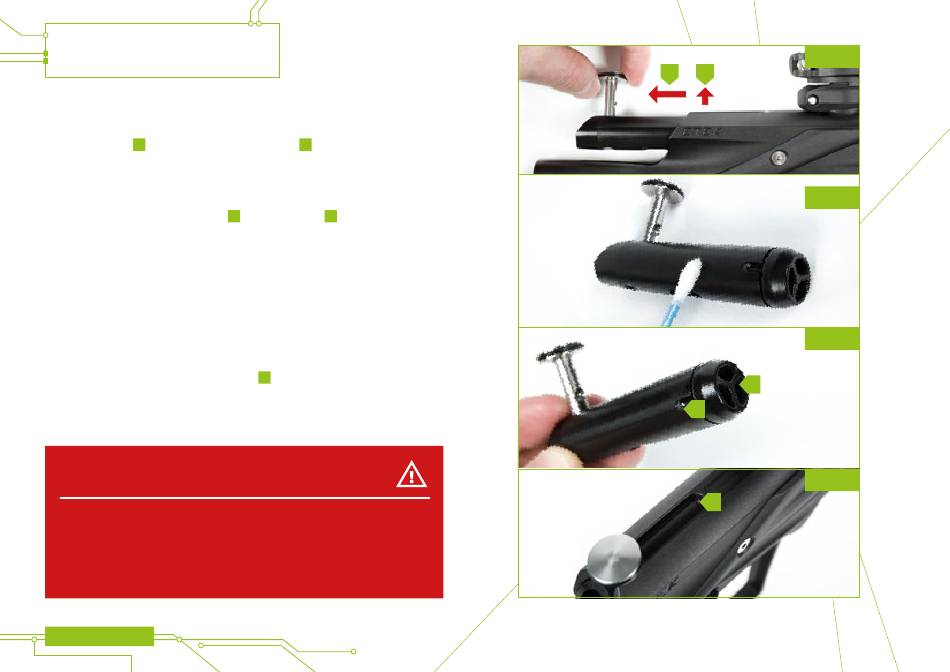

Raise the bolt pin and remove the bolt assembly
1
body (figure 25A).
Using a dry cotton bud remove any paint or grease from the surface of the bolt
(see figure 25B).
Clean and inspect the rubber bolt tip
(figure 25C). If the bolt tip is heavily worn or damaged then remove and replace.
Lubricate the bolt tip with a few small drops of oil around the circumference of the
bolt tip.
Remove any excess oil from the surface of the bolt before re-installing the bolt
assembly. Over-lubrication of the bolt may have adverse effects on performance.
Replace the bolt assembly checking that the bolt is free to move and moves
smoothly back and forth in the ETEK5 body, If there is any resistance or friction in
the bolt movement then replace the rubber bolt tip.
Lock the bolt pin into the designated slot in the rammer using the small dot on the
bolt as a position reference guide (labelled
Incorrect location of the bolt pin can seriously damage the body of your ETEK5.
1 We recommend the use of Eclipse Oil on the ETEK5 rammer and bolt.
WARNING!
Always de-gas your marker, discharging any stored gas in a safe direction,
and remove the barrel, loader, air system and any paintballs to make the
marker easier and safer to work on.
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
44 ETEK5 MANUAL
from the ETEK5 marker
2
and detent slots on the bolt
A B
figure 25D).
A
WARNING
FIG 25A
2 1
FIG 25B
FIG 25C
A
B
FIG 25D
A
