ETEK5 OLED BOARD

SWITCHING ON

Switch on the ETEK5 by pushing and holding the button . The OLED display
A
will show a splash screen which includes model and firmware version details.
This splash screen will remain until the button is released.

RUN SCREEN LAYOUT

During normal operation, the OLED will display the Run Screen. This screen
shows the status of the ETEK5 at a glance and a typical example of the Run
A

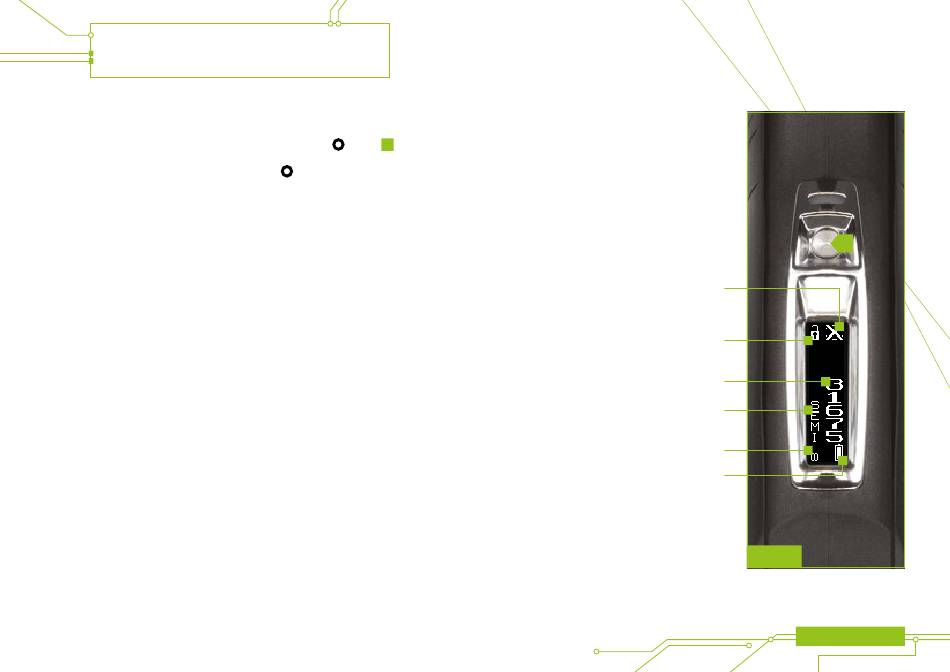

Screen is shown on the right (see figure 20A).
The left of the Run Screen shows the current firing mode of the ETEK5, in this
Breech Sensor Indicator
case UNCAPPED SEMI (see page 34 for other options). The right of the Run
Screen displays user selectable information (see page 36) which in this case is
the shot counter.
The Breech Sensor Indicator allows you to see the status of the BS at a glance. Lock indicator
The lock indicator shows the state of the tournament lock.
Shot count / ROF indicator
Firing mode BPS setting differs per mode, in this case it is indicated by an infinity
symbol to represent the unlimited (or uncapped) firing rate.
Firing mode
The battery level indicator provides an indication of remaining battery life.
Firing mode BPS setting
Battery level indicator
FIG 20A
ETEK5 MANUAL 31
