USING THE ETEK5

SETTING UP THE ETEK5

Before you can begin to use your ETEK5, you will need to attach a barrel, an air
system and a paintball loader.

INSTALLING A BARREL

Every ETEK5 comes complete with an Eclipse Shaft4 barrel (see page 66).
To install the Shaft4 barrel, firstly screw the barrel tip and barrel back sections
together. The threads on the Shaft4 barrel tip are reverse threaded, to screw the
two sections together, with the barrel pointing away from you, turn the barrel tip in
a clockwise direction (see figure 10A).
While pointing the ETEK5 marker in a safe direction, insert the assembled Shaft4
barrel into the front of the ETEK5 body and screw the Shaft4 barrel into the
ETEK5 (in a counter-clockwise direction). Continue to screw the Shaft4 barrel into
the ETEK5 body until the barrel becomes tight in the body
DO NOT over tighten the barrel.
Install a barrel blocking device over the barrel such as the Eclipse Barrel Sock
supplied with the ETEK5 (see figure
1
1 Instruction on using the Eclipse Barrel Sock can be found on the barrel sock warning label.
(see figure 10B).
10C). You have now installed the barrel.

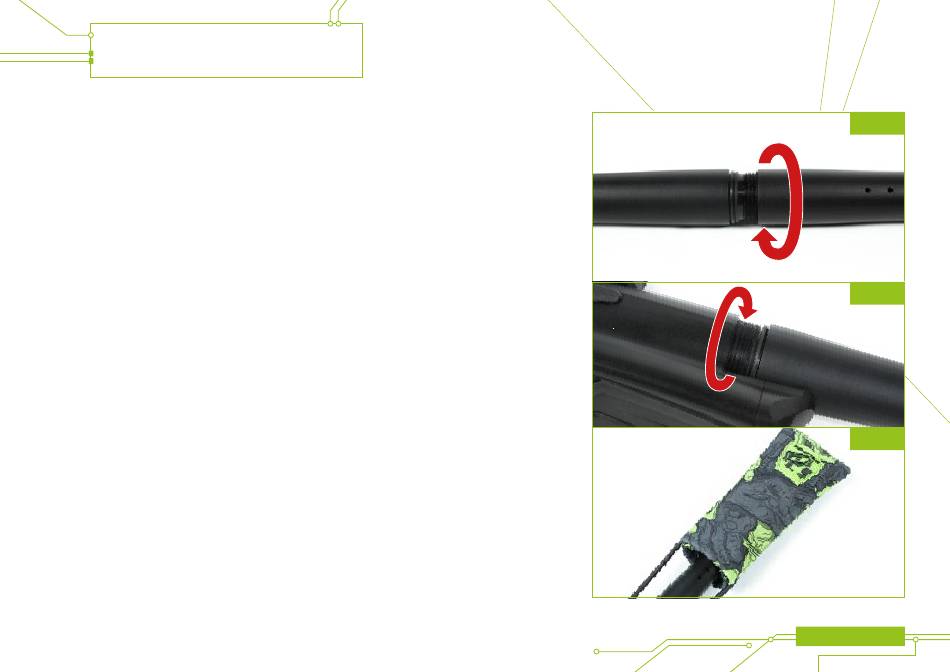

FIG 10A
FIG 10B
FIG 10C
ETEK5 MANUAL 15
