MAINTENANCE
CONTINUED

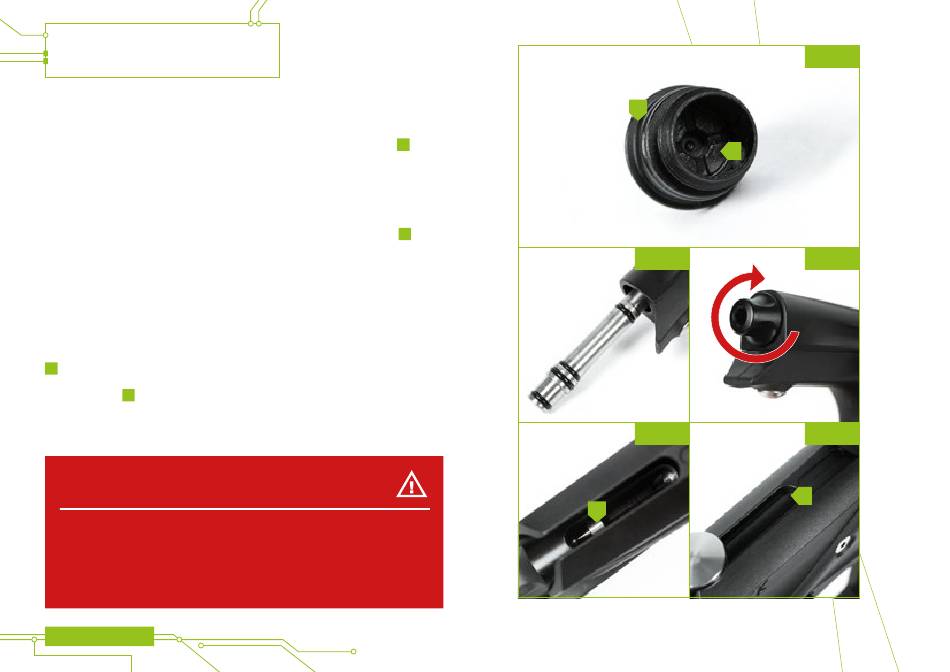

Clean and inspect the rammer bumper inside the rammer cap
figure 26E). If the face of the bumper is damaged or worn then the bumper can
be flipped over to the reverse side and re-inserted. Using a pick or small hex key,
carefully remove the rammer bumper from inside the rammer cap. If both sides
are damaged or worn then replace with a new bumper. The bumper does not
require lubrication.
Clean and inspect the o-ring on the outside of the rammer cap
figure 26E), replacing if the o-ring is damaged. Inspect the internal surfaces of
the rammer cap for debris or dirt, cleaning with a cotton bud if required. Apply a
small amount of grease to the external o-ring on the rammer cap.
Insert the rammer shaft into the ETEK5 body
Screw the rammer cap back into the body by hand until it is finger tight
(see figure 26G).
1
Using a hex key push the rammer shaft back into its rearward position
figure 26H), replace the bolt and locate the bolt pin into the designated slot in
A
the rammer shaft using the marker on the top of the bolt as a position reference
guide (labelled figure 26I).
A
Incorrect location of the bolt pin can seriously damage the body of your ETEK5.
1 DO NOT over tighten the rammer cap.
WARNING!
Always de-gas your marker, discharging any stored gas in a safe direction,
and remove the barrel, loader, air system and any paintballs to make the
marker easier and safer to work on.
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
46 ETEK5 MANUAL
(labelled
A
(labelled
B
(see figure 26F)
(labelled
WARNING
B
A
FIG 26F
FIG 26H
A
FIG 26E
FIG 26G
FIG 26I
A
