MAINTENANCE
MAINTAINING THE VALVE ASSEMBLY
The valve guide should only be removed if the valve guide is damage, causing
a leak down the barrel, feed tube or rammer slot. The valve guide does not
need to be removed for general maintenance.
Lift the bolt pin and slide the bolt assembly out of the rear of the marker
(see figure 30A). Disconnect the macroline, remove the regulator sleeve
figure 30B) and unscrew the inline regulator from the FRM as detailed in the SL4
inline regulator section of this maintenance guide (page 39).
Push and hold the front of the LPR assembly and the valve plug back into the
ETEK5 body (see figure 30C). While continuing to do this, pull the tuning fork out
of the ETEK5 body (see figure 30D).
Remove the valve plug with attached valve stem from the ETEK5 body
(see figure 30E). The valve plug and valve stem assembly are one complete unit
(see figure 30G).
WARNING!
Do not push on the rammer housing valve sealing face to remove the
rammer housing from the body. Doing so may cause irreparable damage to
the sealing face.
(see
WARNING

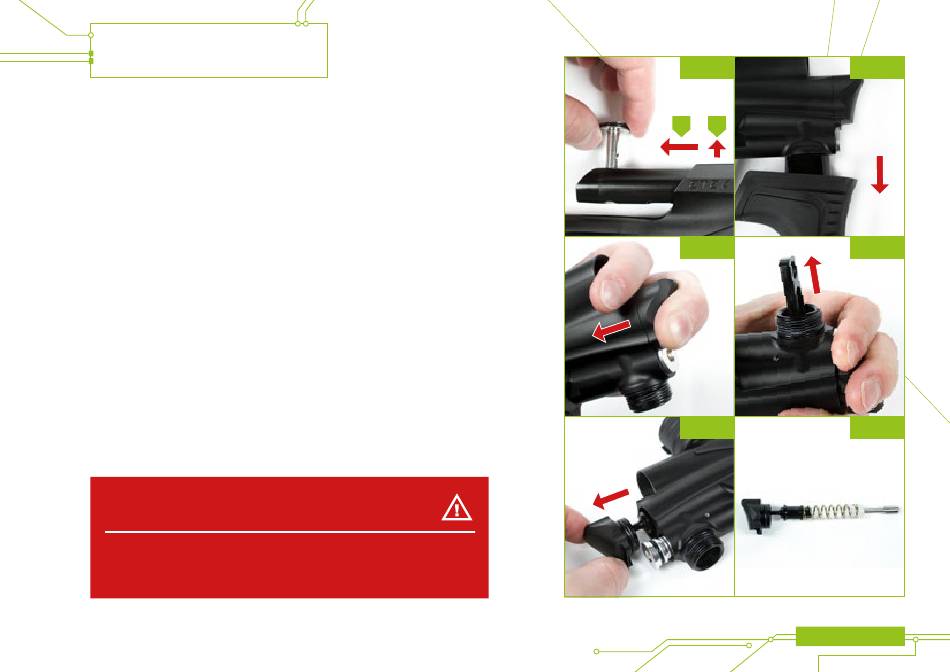

FIG 30A FIG 30B
2 1
FIG 30C FIG 30D
FIG 30E
ETEK5 MANUAL 53
FIG 30F
