SL4 INLINE REGULATOR
1,2
1 The SL4 inline regulator should be reset to factory after re-assembly.
2 Only use the SL4 inline regulator with the ETEK5.
3 Only use the SL4 Ego spring with the ETEK5 SL4 inline regulator.
4 If the Purge Poppet assembly is removed for maintenance ensure
is it re-installed correctly, failure to do so may seriously damage the
ETEK5 solenoid valve.
5 The low pressure regulator should be reset to factory after
re-assembly.

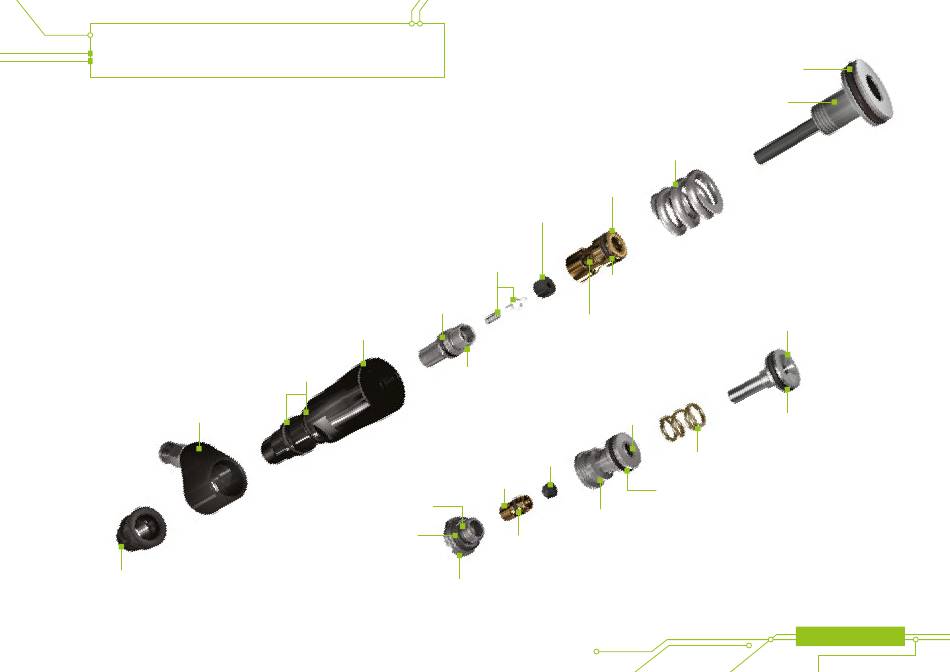

Swivel o-rings
#015 NBR70
Regulator swivel
Regulator bottom
Purge poppet assembly
Adjuster o-ring
#011 NBR70
Regulator body
Adjuster bottom
Adjuster screw
O-ring 7x1 NBR70
O-ring #013 NBR70
LPR spring
Regulator spring
Adjuster top
Regulator seal
4
Adjuster external o-ring
#011 NBR70
Adjuster internal
o-ring #008 NBR70
LPR body external
o-ring #008 NBR70
LPR seal
LPR body
Adjuster screw
o-ring #008 NBR70
Piston o-ring 14x2 NBR70
Regulator piston
3
LPR piston
LPR piston o-ring
#013 NBR70
LPR spring
LPR body external
o-ring #013 NBR70
LOW PRESSURE REGULATOR
