MAINTENANCE
THE ETEK5 TRIGGER ASSEMBLY
To remove the trigger from the ETEK5, firstly unscrew the four retaining screws
that hold the left and right grip panels onto the frame using a 5/64" hex key
(see figure 28A), then remove the grip panels.
With a 1/16" hex key, loosen the trigger pin retaining screw
As the screw is backed out the trigger pin will become free. When the trigger pin
moves freely inside the frame use a small hex key to push the trigger pin out of
the frame (see figure 28C).
With the trigger pin removed, carefully rotate the trigger forwards, and slide it out
of the frame (see figure 28D), making sure not to damage the micro-switch.
The trigger has now been removed for cleaning.
WARNING!
Always de-gas your marker, discharging any stored gas in a safe direction,
and remove the barrel, loader, air system and any paintballs to make the
marker easier and safer to work on.
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
(see figure 28B).
WARNING

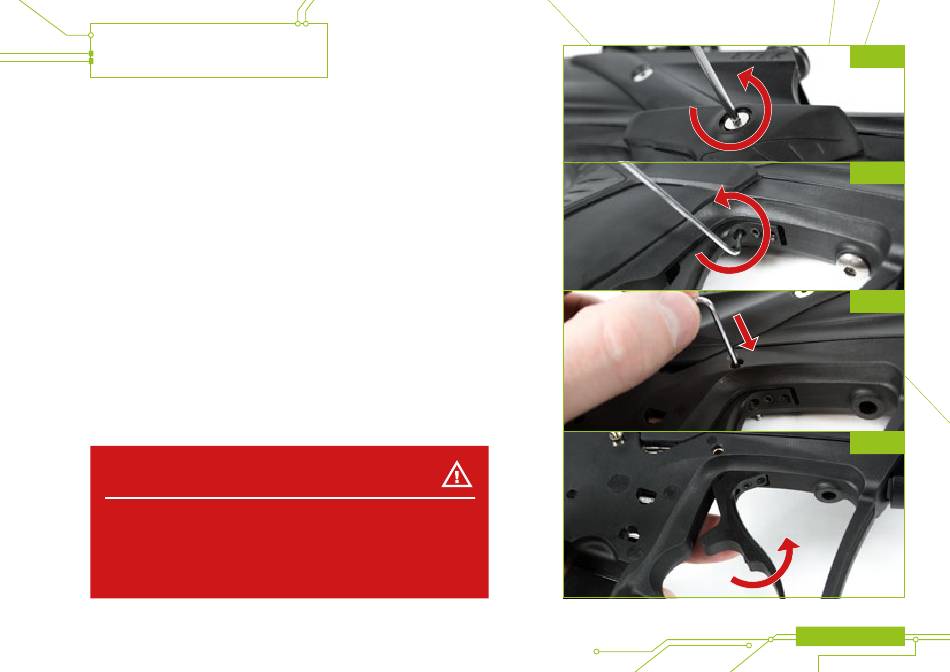

FIG 28A
FIG 28B
FIG 28C
FIG 28D
