MAINTENANCE
THE ETEK5 ON/OFF PURGE SYSTEM (OOPS)
Having disconnected the macroline hose from the fitting on the OOPS body,
unscrew and remove the OOPS knob from the OOPS body
The push rod and o-rings will now be exposed
the push rod out from either side of the OOPS body, taking care not to lose the
two o-rings on the push rod (see figure
Clean off any dirt, debris or moisture from the OOPS knob and the OOPS body
(see figure 31D).
Remove the OOPS insert assembly using a 5/32" hex key
Remove the OOPS pin from the OOPS insert.
Clean and check the condition of the 007 NBR 70 o-ring on the outside of the
OOPS insert, replacing as necessary
WARNING!
Always de-gas your marker, discharging any stored gas in a safe direction,
and remove the barrel, loader, air system and any paintballs to make the
marker easier and safer to work on.
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
56 ETEK5 MANUAL
(see figure 31A).
(see figure 31B). Carefully slide
31C).
(see figure 31E).
(see figure 31F).
WARNING

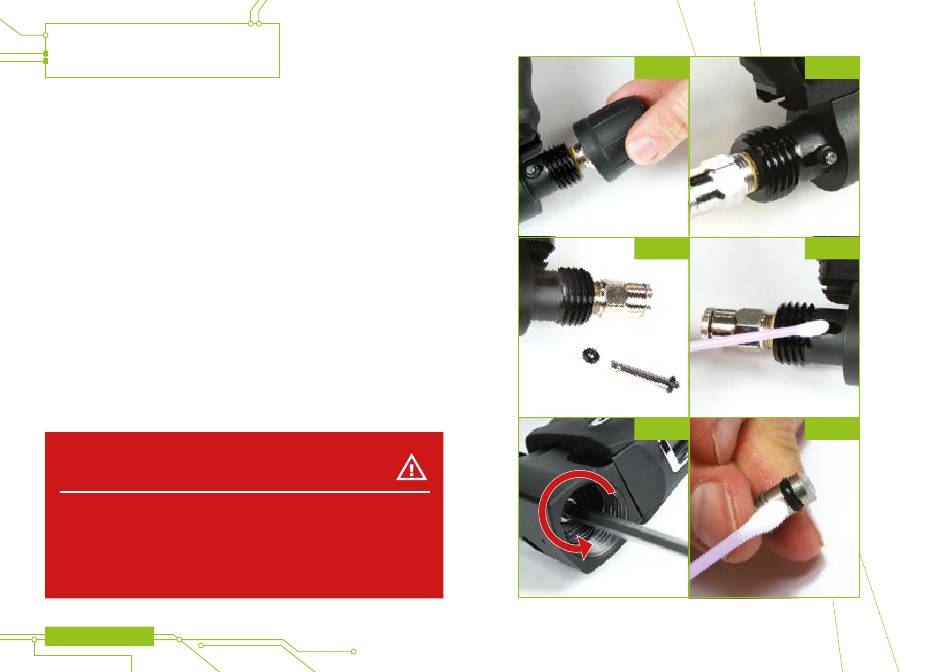

FIG 31A FIG 31B
FIG 31C FIG 31D
FIG 31E FIG 31F
