MAINTENANCE
REMOVING AND ATTACHING THE FRAME
Disconnect any hosing, remove the regulator sleeve and unscrew the inline
regulator from the front regulator mount as detailed in 'The SL4 inline regulator
assembly' section of this maintenance guide (pages 39-40).
Using a 5/64" hex key remove the four screws that attach the ETEK5 rubber
grips to the ETEK5 grip frame (see figure
Sensor connectors from the ETEK5 circuit board
Using a 1/8" hex key undo the two frame retaining screws
remove the frame from the ETEK5 body, taking care not to damage any wires
(see figure 27D).
You have now removed the frame.
WARNING!
Always de-gas your marker, discharging any stored gas in a safe direction,
and remove the barrel, loader, air system and any paintballs to make the
marker easier and safer to work on.
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
27A). Unplug the solenoid and Breech
(see figure 27B).
(see figure 27C) and
WARNING

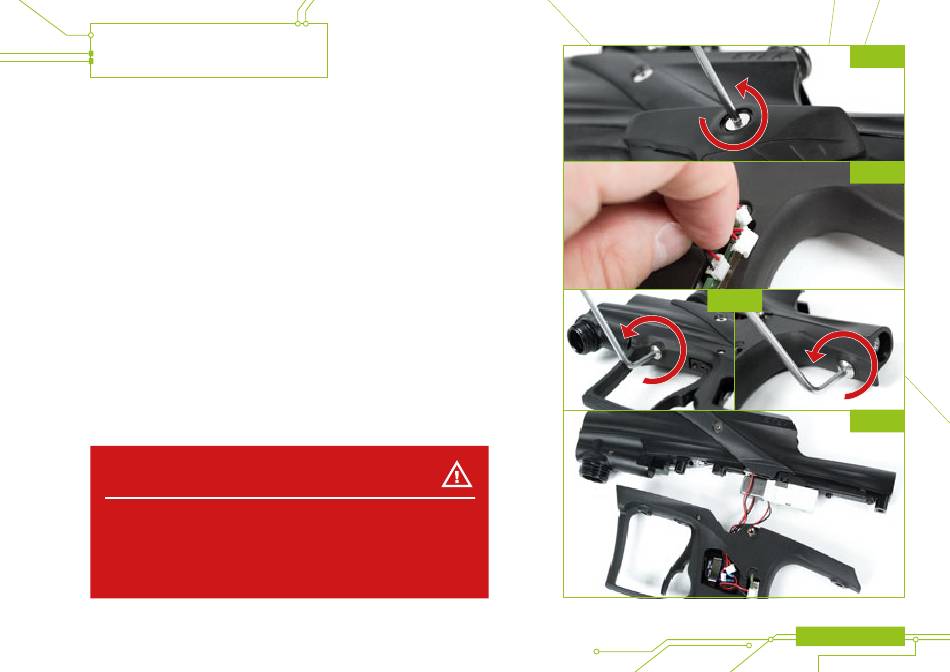

FIG 27A
FIG 27B
FIG 27C
FIG 27D
