Eclipse ETEK 5 User Manual page 54

MAINTENANCE
CONTINUED

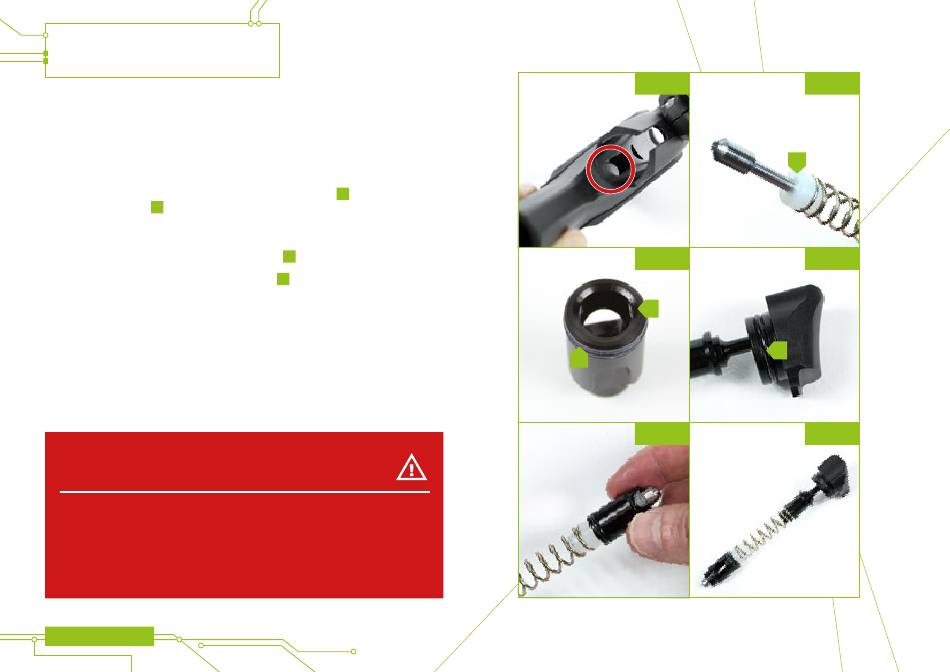

Ensure the rammer is in its rear position. Insert an L shaped hex key into the front
of the bolt pin slot and apply light pressure to the back of the valve guide to push
it out of the ETEK5 Body (see figure 30G).
Inspect the sealing face of both the exhaust valve
valve guide (labelled figure 30I) for any excessive wear or damage. If either
A
the exhaust valve or the valve guide are damaged/scratched then replace with
authentic ETEK5 parts.
Lubricate the o-ring on the valve guide
Lubricate the o-ring on the valve plug
Place the exhaust valve in the valve guide, making sure that the sealing faces
(see figure 30K), and place the valve spring over the
are next to each other
end of the exhaust valve and then place this sub-assembly into the valve stem
(see figure30L).
WARNING!
Always de-gas your marker, discharging any stored gas in a safe direction,
and remove the barrel, loader, air system and any paintballs to make the
marker e asier and safer to work on.
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
54 ETEK5 MANUAL
(labelled figure 30H)
A
(labelled figure 30I).
B
(labelled figure 30J).
A
and
B
WARNING
FIG 30G FIG 30H
A
FIG 30I FIG 30J
A
A
FIG 30K FIG 30L
