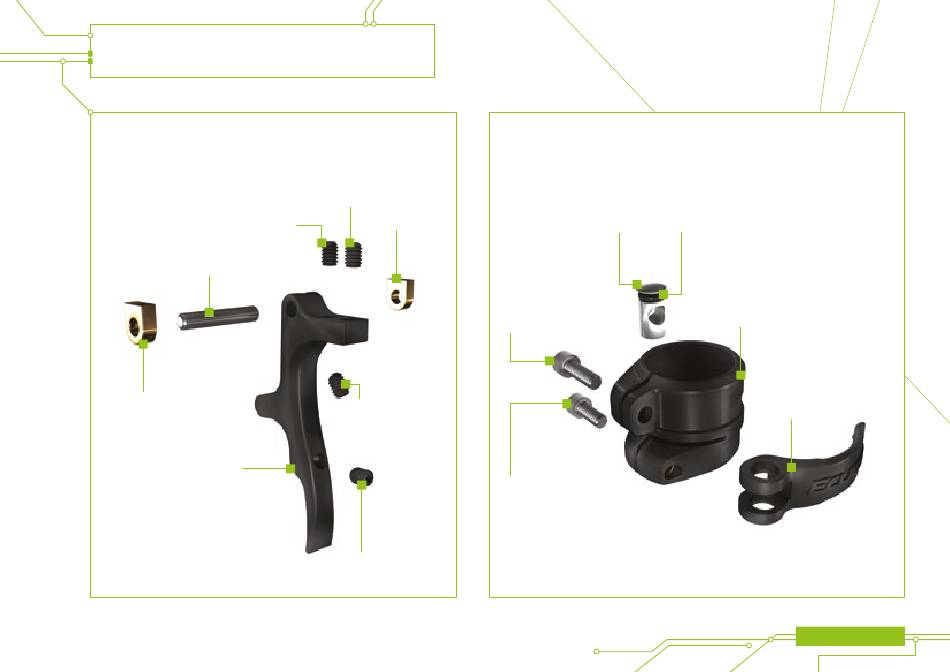

TRIGGER ASSEMBLY
Magnet adjuster screw
(6-32 UNC x 3/16" socket set)
Pre-travel adjuster screw
(6-32 UNC x 3/16" socket set)
Trigger pin
Brass bushing
Trigger
Post-travel adjuster screw
(6-32 UNC x3/16" socket set)
CLAMPING FEED TUBE ASSEMBLY
Brass
bushing
Long clamping
feed screw
10-32 UNF x 5/8" cap
head socket screw
Trigger pin
locking screw
6-32 UNC x 1/8"
Short clamping
feed screw
10-32 UNF x 1/2" cap
head socket screw
Feed swivel o-ring
Feed swivel
(#006 NBR70)
Feed tube
Feed lever
ETEK5 MANUAL 71
