ETEK5 OLED BOARD

INSTALLING THE ETEK5 OLED BOARD

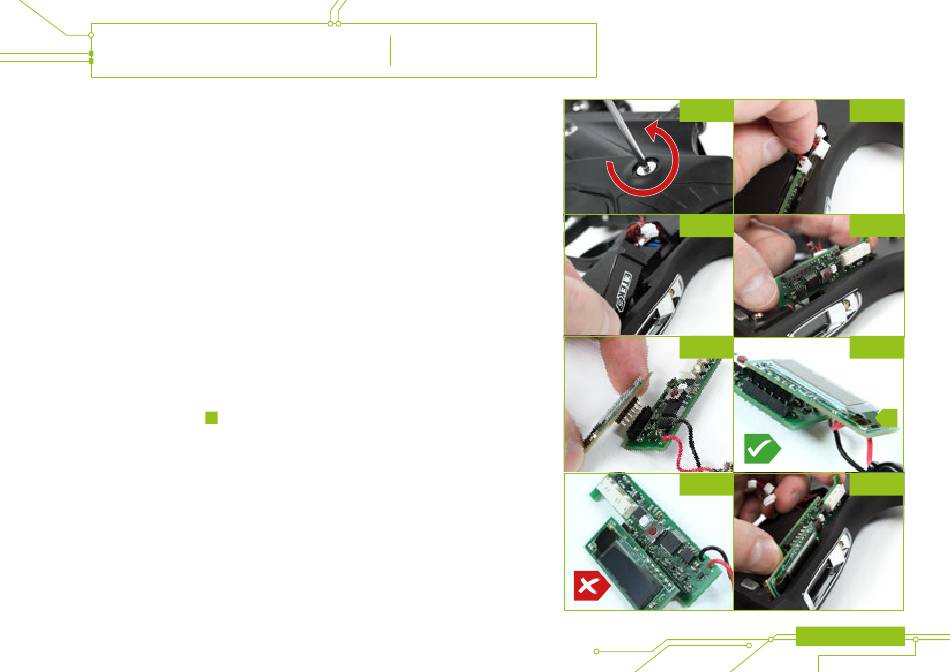

Remove the ETEK5 grips by unscrewing the four retaining screws with a 5/64"
hex key (see figure 18A).
Peel the right side of the grip off, exposing the battery. Remove the battery and
unplug the battery from the connector as detailed on page 7.
Turn the marker over and peel the left side of the grip off. The grips can now be
removed.
Unplug the BS, solenoid and microswitch connectors from the ETEK5 circuit
board (see figure 18B).
Remove the ETEK5 logo plate by sliding it out from the guides holding it in place
(see figure 18C). Once removed gently push the circuit board from the right side
out of the left side frame then remove the board
Plug the OLED board into the six pin socket on the ETEK5 circuit board as
shown in figure 18E. Make sure the OLED board pins are seated correctly in the
connector (see figure 18F). The OLED board MUST be seated with the pins to
the left of the OLED board NOT to the right
the OLED board may damage both the ETEK5 and the OLED board and it will not
fit in your ETEK5 frame. Gently remove the OLED display's protective film using
the green tab (labelled in figure 18F)
A
Check that the retainer clip is correctly located in the frame so that you can then
re-install the board with the OLED board attached
the button on the circuit board does not jam on the metal push button in the
frame. Tilt the console downwards so that the metal push button slides away from
the circuit board.
Reinstall the battery as detailed on page 7, replacing the right side of the grip
using two retaining screws.
Reconnect the BS, microswitch and solenoid to the circuit board. Then replace
the left side of the grip using two retaining screws.
You have now installed the ETEK5 OLED board.
In depth information covering all
aspects of the ETEK5 OLED Board.
(see figure 18D).
(see figure 18G). Incorrect fitment of
before installation.
(see figure 18H) making sure
FIG 18A FIG 18B
FIG 18C FIG 18D
FIG 18E FIG 18F
FIG 18G FIG 18H
ETEK5 MANUAL 29
