5. Operating
5.1

Connecting the Measuring System Structure

The voltage supply for the controller is provided via the SUPPLY/OUTPUT socket; signals are concurrently output via that socket.
Install the sensor in the measurement environment.
Connect the sensor to the controller, see
Connect the controller to power supply; use the SCAC3/6/IP-3
connection and signal cable, cable length 3 m, see Chap. 4.4.2.
The connection and signal cable has a push-pull latch on the plug
side, as does the sensor cable. Push-pull connections feature a very
user-friendly latching mechanism. If the plug connector is pushed into
the device, latching claws on the plug connector snap into the device
component and create a reliable connection between the two compo-
nents. It cannot be separated by pulling on the plug connector's cable.
By contrast, the plug connector can easily be separated from the
device component, if the outer sleeve is pulled back.
If necessary, connect measuring signal displays or recording
equipment to the controller via the 6-pole cable connector.
Switch on the supply voltage at the power supply unit.
The controller initializes itself when the supply voltage is applied. This
is indicated by the Status LED, see Chap. 5.2. Depending on the
operating mode set, the Status LED changes.
Set the desired operating mode and the measuring object divider,
see Chap. 5.2, see Chap. 5.3.
Position the sensor, see Chap. 5.4.
capaNCDT CST6110
Fig. 1.
SCAC3/6/IP
PS 2020

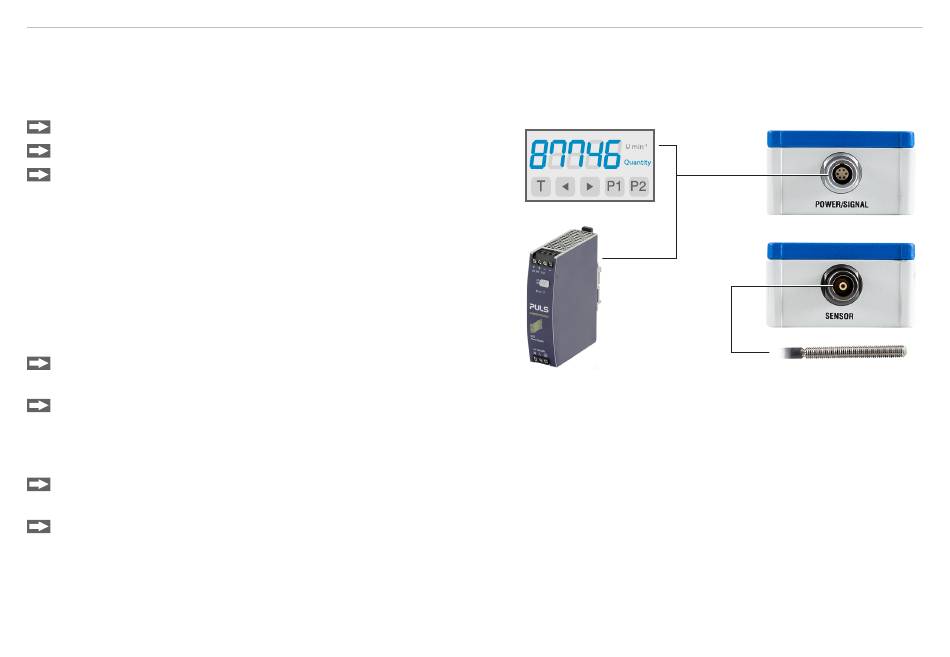

Fig. 9 Connection examples for CST6110
Sensor CS025/M5-CAm1,0/RS
Page 16
