N100 INSTRUCTION MANUAL

8.5 Alarm Terminal Function

Alarm Terminal [AL1, AL2- AL0)

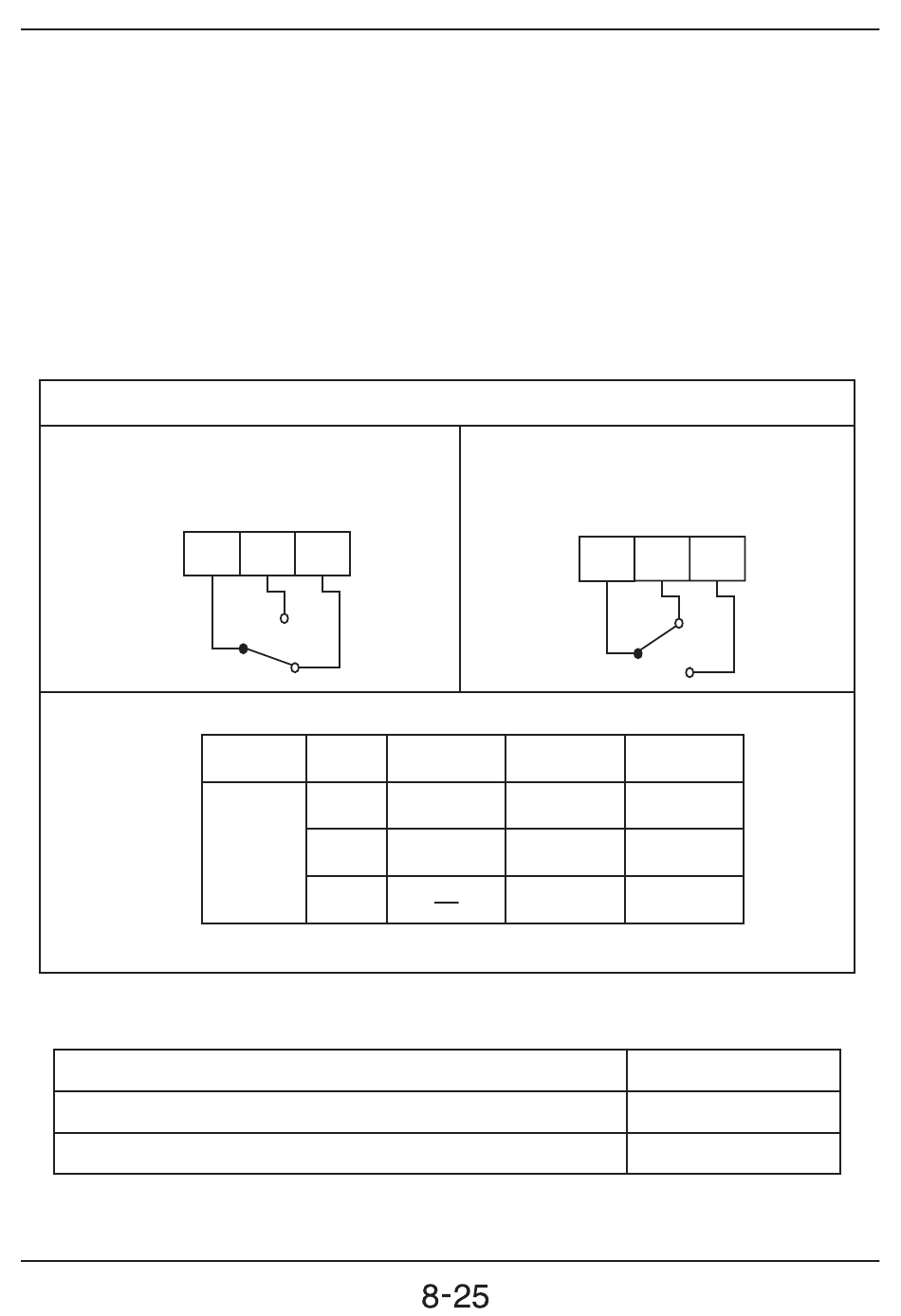

The alarm output terminals are connected as shown below by default, or after
initialization. The contact logic can be inverted by using the parameter setting
C16. The relay contacts normally contact a.
Convention uses "normal' to mean the inverter has power and is in Run or Stop
Mode. The relay contacts switch to the opposite position when it is Trip Mode
or when input power is off.
During normal running
or power is turned off
AL0 AL1 AL2

Contact specification

AC 250V, 2.5A(Resistor load), 0.2A(Inductive load)
DC 30V, 3.0A(Resistor load), 0.7A(Inductive load)
Contact a (Initial setting)
contact
Power Run State
ON
Contact a
ON
(initial
setting)
OFF
Maximum
when an alarm occurs
AL0-AL1 AL0-AL2
Open
Normal
Trip
Closed
Open
AL0 AL1 AL2
Closed
Open
Closed
Minimum
AC 100V, 10mA
DC 5V, 100mA
