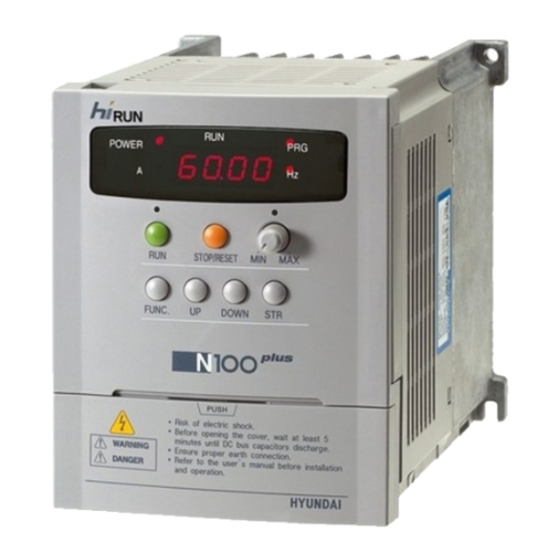

Hyundai hiRUN N100plus Series Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Inverter
  5. N100 plus
  6. Manual

Hyundai hiRUN N100plus Series Manual

Hide thumbs Also See for hiRUN N100plus Series:

Advertisement

Table of Contents

HEAVY INDUSTRIES CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the hiRUN N100plus Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai hiRUN N100plus Series

Summary of Contents for Hyundai hiRUN N100plus Series

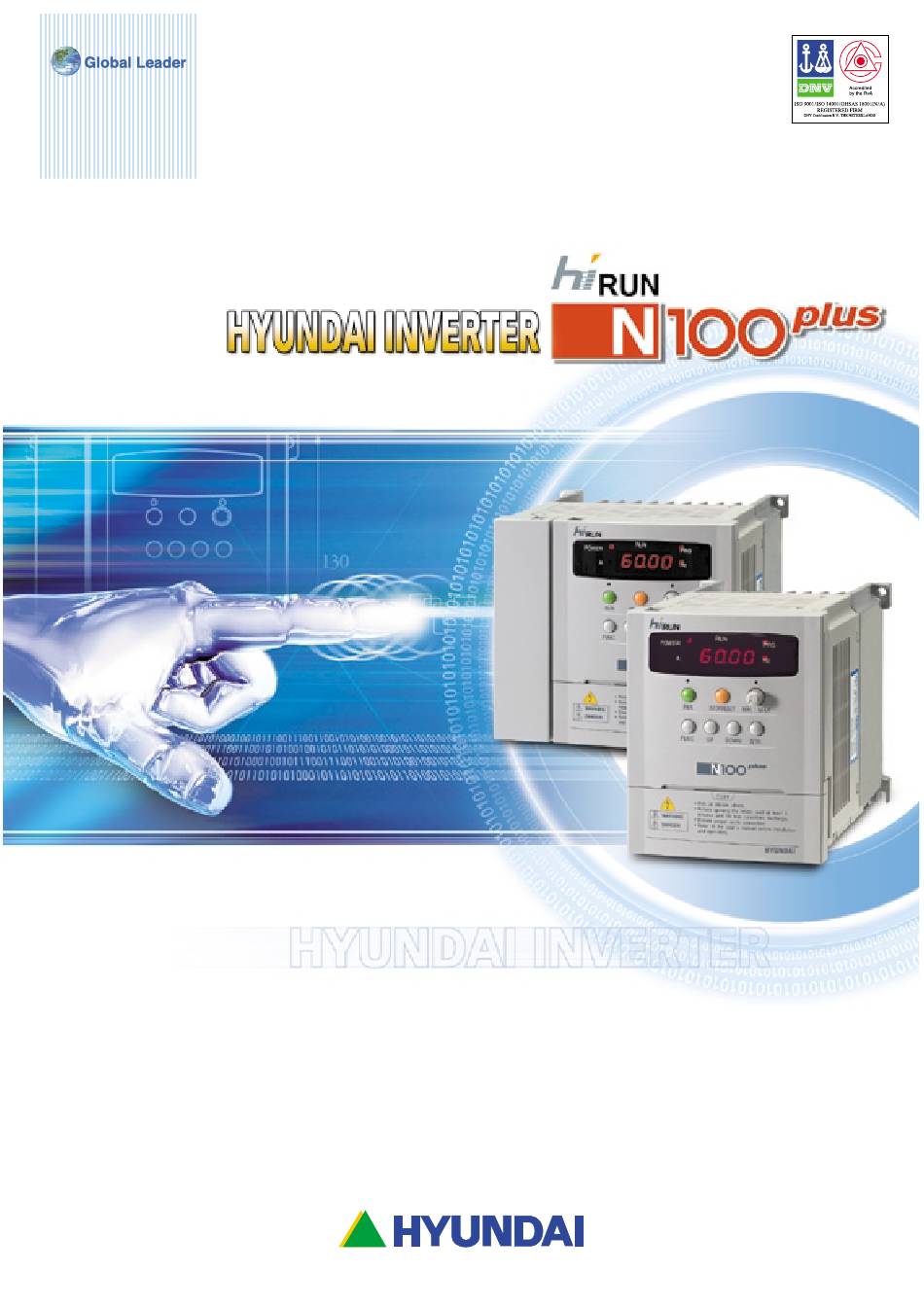

  • Page 1 HEAVY INDUSTRIES CO., LTD.
  • Page 2 We build a better future!

  • Page 3: Table Of Contents

    02 03 INTRODUCTION Inverter Hyundai inverters feature sensorless vector & intelligent controls which allow more efficient use of the inherent power of a motor and an auto-turning function capable of easily accomplishing powerful operation. Model Number Information N100 004 L F E ■...
  • Page 4 HYUNDAI INVERTER N100 plus...

  • Page 5: Features

    04 05 Features High torque at low speeds Open network communication Compact size Features Advance sensorless vector control function Add MMI function using RS485 communication - Realize smooth driving without motor vibration and high precise driving no effect of changing load. - Built-in RS485 communication standard using Modbus protocol - Show high torque of 200% or greater at speeds as low as possible flexible application for various FA system, on remote...

  • Page 6: Operation

    HYUNDAI INVERTER N100 plus Operation External Dimension Diagrams The N100 plus series can be easily operated with the standard digital operator panel on the main unit. For remote operation, a remote operator unit is available as an option. • • 0 0 0 0 4 4 S S F F •...
  • Page 7 06 07 Operation Monitor section (LED) Power ON lamp Monitor lamp Monitor lamp Frequency setting Run key potentiometer Stop/Reset key Function key Store or Memory key Up/Down key Setting the maximum frequency Turn on Press the Display A mode Press the Press the power FUNC.

  • Page 8: General Specifications

    HYUNDAI INVERTER N100 plus General Specifications Item 200 V class 400 V class N100 plus 004SF 007SF 015SF 004LF 007LF 015LF 022LF 037LF 004HF 007HF 015HF 022HF 037HF Applicable motor capacity (kW) Rated output capacity (kVA) Rated output current (A) 11.0...
  • Page 9 08 09 General Specifications Item 200 V class 400 V class N100 plus 004SF 007SF 015SF 004LF 007LF 015LF 022LF 037LF 004HF 007HF 015HF 022HF 037HF Frequency 0 to 5VDC, 0 to 10VDC, 4 to 20 mA, External variable resistor (1 kΩ Ω ~2 kΩ Ω ,1 W), main unit volume Analog digital setting resistor Input from control panel...

  • Page 10: Function List

    HYUNDAI INVERTER N100 plus Function List Monitor Mode / Basic Setting Mode Function code Name Initial value Minimum value Maximum value Unit Code description Output frequency monitor 0.00~99.99,100.0~400.0 Hz, "Hz" LED on 0.00 400.0 Output current monitor 99.9 0.0~99.9 A display, "A" LED on...
  • Page 11 10 11 Function List Expanded Function A Mode Function code Name Initial value Minimum value Maximum value Unit Code description 0: main unit volume, 1: control terminal, Frequency commanding 2: standard operator, 3: remote operator (communication) Basic 0: standard operator, 1: control terminal, RUN commanding 2: remote operator (communication) setting...
  • Page 12 HYUNDAI INVERTER N100 plus Function List Expanded Function A Mode Function code Name Initial value Minimum value Maximum value Unit Code description Torque boost mode selection 0: manual torque boost, 1: automatic torque boost 50.0 Manual torque boost voltage setting...
  • Page 13 12 13 Function List Expanded Function b Mode Name Initial value Minimum value Maximum value Unit Function code Code description 0: alarm output after trip 1: restart at 0 Hz 2: resume operation after frequency matching 3: resume previous frequency after Instan- Selection of restart mode frequency matching then decelerate to...
  • Page 14 HYUNDAI INVERTER N100 plus Function List Expanded Function C Mode Function code Name Initial value Minimum value Maximum value Unit Code description 0: forward run command (FW) 1: reverse run command (RV) 2: 1st multispeed command (CF1) 3: 2nd multispeed command (CF2)
  • Page 15 14 15 Function List Expanded Function S Mode Function code Name Initial value Minimum value Maximum value Unit Code description Multistage speed frequency setting, 2nd motor 60.00 0.00 400.0 0.00~99.99,100.0~S05 (by 0.01 Hz) 0.1~3000 sec, 0.1~999.9 (by 0.1 sec) Acceleration time, 2nd motor 10.0 3000 1000~3000 (by 1 sec)
  • Page 16 HYUNDAI INVERTER N100 plus Function List Expanded Function H Mode Function code Name Initial value Minimum value Maximum value Unit Code description O: auto-tuning OFF, 1: auto-tuning ON Auto-tuning setting Motor data setting (standard/auto-tuning) 0: standard motor constant, 1: auto-tuning data Sensorless 0~4: 0.4/0.75/.1.5/2.2/3.7kW (220 V)

  • Page 17: Terminal Functions

    16 17 Function List / Terminal Functions Terminal Functions Main Circuit Terminal Terminal symbol Terminal name Function R.S.T Main power supply input terminal Connects the input power supply 220/440 V Inverter output terminal U.V.W Connects to the motor P.RB External resistor connection terminal Connects the braking resistor (option) Ground connection Connects the die-casting (to prevent...

  • Page 18: Protective Functions

    HYUNDAI INVERTER N100 plus Protective Functions Various functions are provided for the protection of the inverter itself, but they also perform the protection function when the inverter breaks down. Display Description Function Standard operator Remote operator When the inverter output current exceeds the rated current by more than...

  • Page 19: Standard Connection Diagram

    18 19 Protective Functions / Standard Connection Diagram Standard Connection Diagram Terminal Connection Diagram PLC Connection note) When connecting Terminal CM1 to PLC, install the reverse prevention Diode D.

  • Page 20: Application Wiring Apparatus & Options

    HYUNDAI INVERTER N100 plus Application Wiring Apparatus & Options Standard Apparatus (3-Phase input reference) Wiring Applicable equipment Inverter model Motor output (kW) (N100 plus Series) Power lines Signal lines Fuse (class J) N100 plus -004SF Fuse N100 plus -004LF 1.25 mm 0.14 mm...
  • Page 21 20 21 20 21 Application Wiring Apparatus & Options Application Wiring Apparatus & Options Remote Operator (NOP100) With the remote operator, you can control the parameters of the inverter and the commands by using the optional remote operator cable. The NOP100 enables parameter sets to be read out of the inverter or to be written into the inverter with READ or COPY button.
  • Page 22 HYUNDAI INVERTER N100 plus Application Wiring Apparatus & Options Noise filter for inverter Reduces the conductive noise on the main power line generated from the inverter. Noise filter is the more near to noise source, the effect is the better.
  • Page 23 22 23 Application Wiring Apparatus & Options Dynamic Braking Resistor Dynamic braking uses the case of increase braking torque, frequently ON/OFF and large inertial load. In case of light load Dynamic braking resistance (200 V class) Dynamic braking resistance (400 V class) Motor capacity (kW) Wattage Wattage...
  • Page 24 HYUNDAI INVERTER N100 plus Application Wiring Apparatus & Options Input / Output AC reactor Input-Reactor Power Inverter Supply Motor [Input-side AC reactor] Output-Reactor Inverter Motor Power Supply [Output-side AC reactor] External Diagram Connection Diagram AC reactor input side AC reactor output side ACL-L I-2.5...
  • Page 25 Application Wiring Apparatus & Options HIMS (Hyundai Inverter Management System) It is possible to drive, observe inverter and correct parameter using exclusive Hyundai inverter communication S/W. User easily confirm the status of inverter therefore compensation and application is convenient. System constitution...

  • Page 26: Proper Operation

    HYUNDAI INVERTER N100 plus Proper Operation Before use, be sure to read through the Instruction Manual to insure proper operation. ▶ Note that the inverter requires proper electrical wiring; a specialist should carry out the wiring. ▶ The inverter in this catalog is designed for general industrial applications. For special applications in fields such as aircraft, outer space, ▶...
  • Page 27 Electromagnetic contactor If an electromagnetic contactor is installed between the inverter and the motor, do not perform on-off switching during running operation. When used with standard applicable output motors (Hyundai standard three-phase squirrel-cage four-pole motors), the N100 Series do not Wiring need a thermal relay for motor protection due to the internal electronic protective circuit.
  • Page 28 ELECTRO ELECTRIC SYSTEMS HEAD OFFICE 1 JEONHA-DONG, DONG-GU, ULSAN, KOREA TEL. 82-52-230-8101~8 FAX. 82-52-230-8100 SEOUL HYUNDAI B/D, 140-2, GYE-DONG, JONGNO-GU, SEOUL, KOREA TEL. 82-2-746-7518, 7596 FAX. 82-2-746-7648 ORLANDO 3452 LAKE LYNDA DRIVE, SUITE 110, ORLANDO, FLORIDA, 32817 U.S.A. TEL. 1-407-249-7350 FAX.
